Auto Service Bay Cleaning: Zone by Water, Not by Habit, Then Prove It

Most workshop cleaning fails because one mop travels the whole floor. A bay that holds oil, a booth that holds overspray and a high-voltage bay that must stay dry need different methods, tools and sign-offs. This guide sets one zoning test, walks through four zone types, covers waste and wash water, and closes with three records that make the work provable.

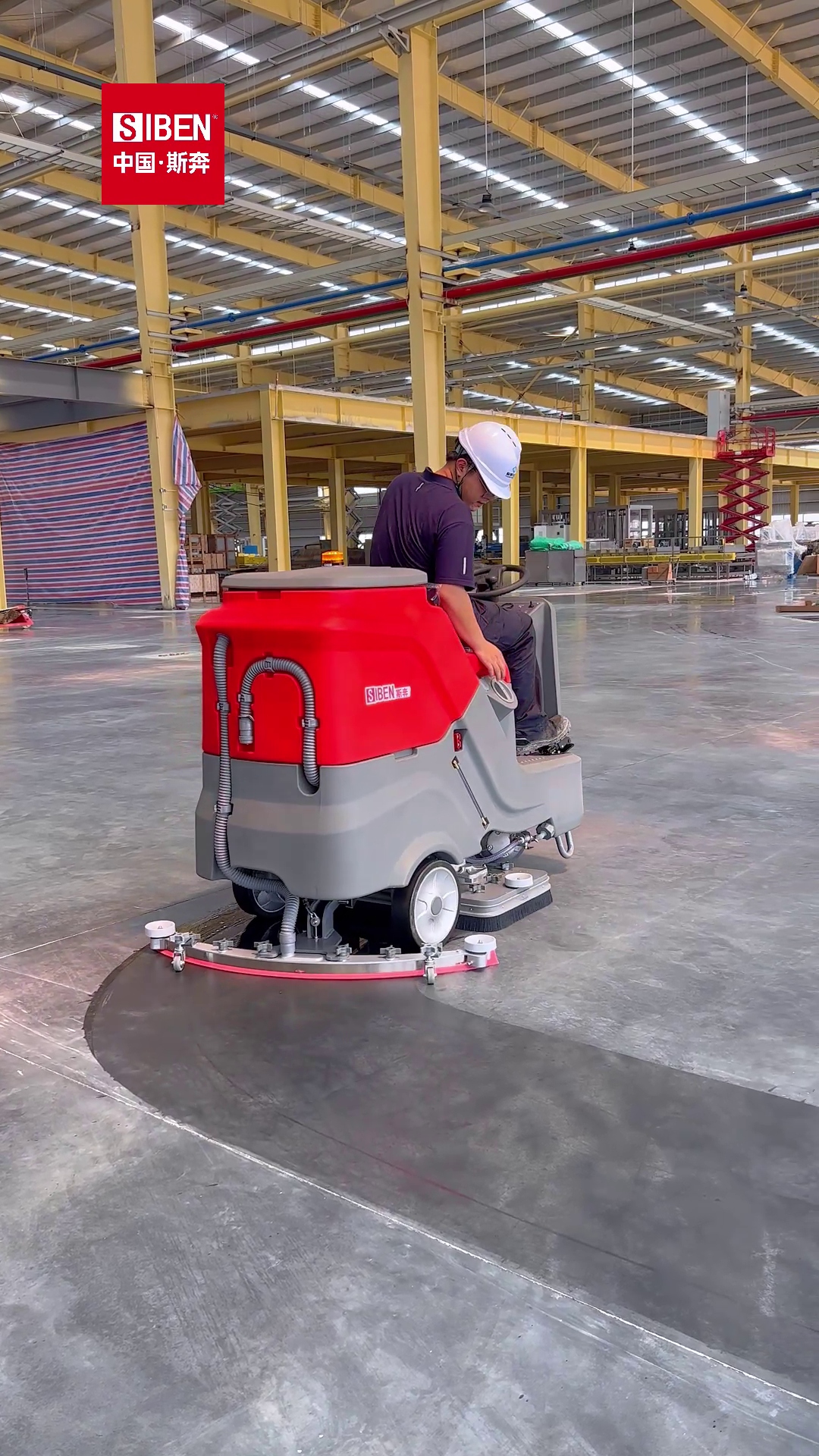

Siben X8 ride-on scrubber-dryer cleaning a workshop wet zone — single-pass scrubbing and water recovery keeps the wash bay floor dry and slip-free after cleaning.

Step 1: Zone by water permission, not by job title

Workshops usually zone by trade: mechanical, body, paint, wash. That works for production and fails for cleaning, because two adjacent areas can both be dirty and still need opposite methods. Use one question instead: may water land here? Answer it with three checks.

1. Are there exposed live parts?

2. Is the floor built with waterproofing and drainage?

3. Is there a collection point downstream?

Only when all three are answered properly does a floor qualify as wet. This single test replaces a dozen verbal warnings.

Step 2: Draw four zones and post the map

Zone	Areas	Permitted Method	Colour
Dry	Mechanical bays, tyre bays, lift surrounds, parts corridors	Vacuum and spot-clean only	Yellow
Wet	Wash bays, handover area, mat cleaning, drain lines	Washing allowed with drainage and slip protection	Blue
No-water	EV high-voltage bays, battery storage, teardown, charging spots, switch rooms	Dry methods only — no bucket, no hose	Red
Outer	Yard, ramp, unloading area, outdoor drains	Washing with controlled water route	Green

Print the map in four colours and post it at the cleaning store and the bay entrance.

Step 3: In dry bays, lift the oil before you touch water

The common mistake is to wet the floor first. Water spreads the oil, enlarges the slick and moves it to the next bay on the mop. Reverse the order. Absorb visible oil with pads or granules. Vacuum grit, swarf and dried mud so they are not ground into the surface. Then spot-clean the remaining film and extract it immediately. Oil-soaked pads, gloves, filters and drained filter housings are not general waste. Keep them in lidded containers with labels and hand them to a permitted receiver.

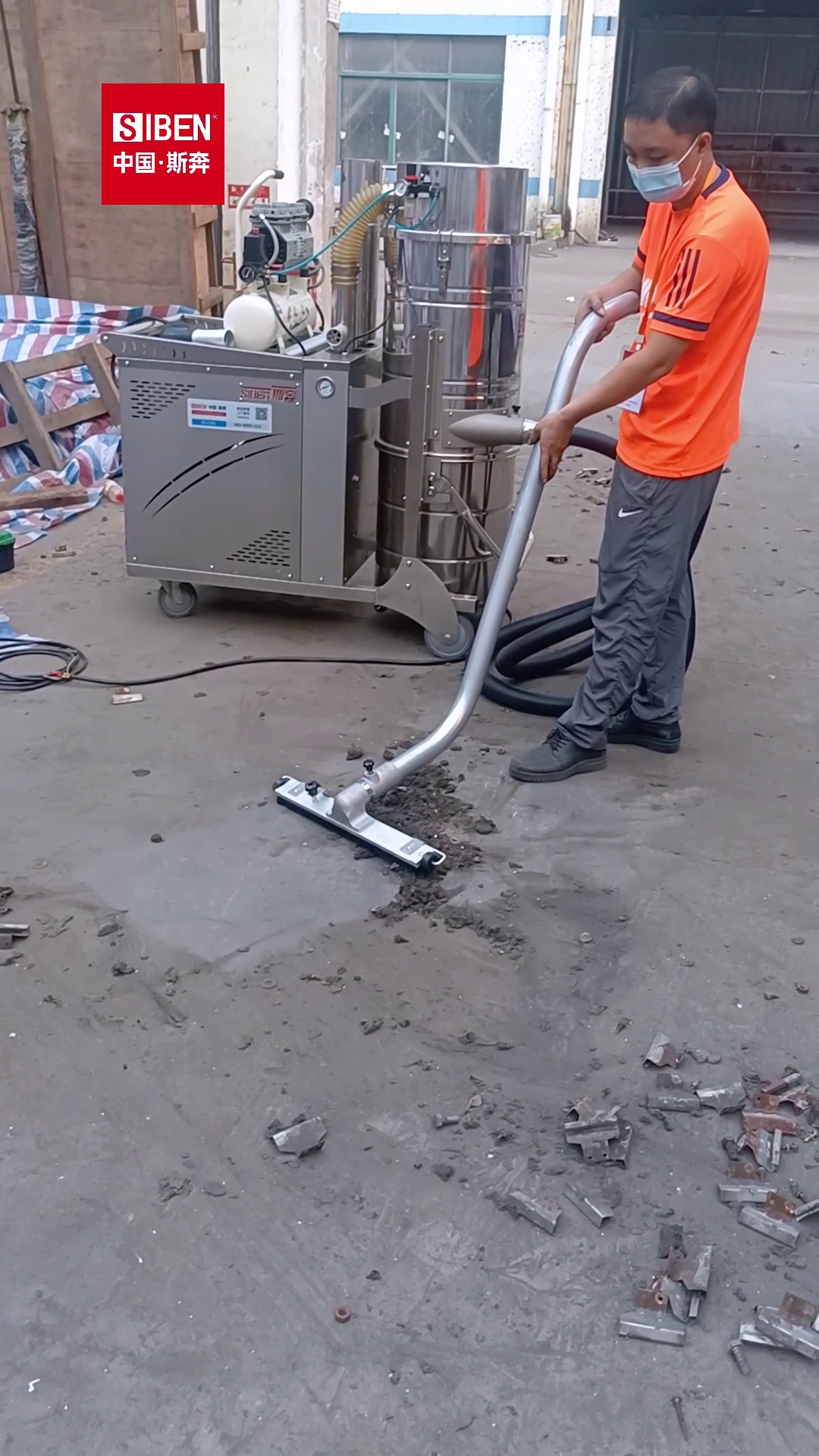

Siben XC2200-7500MC industrial vacuum collecting oil, swarf and grit from a mechanical bay floor — dry collection before any water contact prevents oil spreading and sludge formation.

Step 4: Treat body and paint as two problems, not one

Sanding dust is dry and airborne. A broom lifts it onto panels and fresh paint. Use a vacuum with high-efficiency filtration at the tool and on the floor. Do not use a scrubber-dryer here: water turns the dust into slurry that reaches the drain and adds to the effluent load. Overspray is a different stream. Booth filter media and paint sludge are replaced on pressure drop or schedule and kept as a separate waste. Mixing rooms and booths are not mopped, because solvent residue spreads with water and the space has its own ventilation requirements.

Step 5: Keep the high-voltage bay dry, and make it a rule

The bay needs a written boundary, not a reminder. Dry vacuum and dry cloth only, no bucket, no pressure washer. Cleaning sits outside high-risk work windows, and the supervisor confirms a dry floor before work resumes. Tools stay in the zone: nozzles, cloths and gloves are marked and stored separately. Battery storage, charging and fire provisions follow current requirements and company rules. A vehicle that has been hit, grounded, flooded or shows a swollen pack goes to a professional process rather than a local judgement.

Step 6: In the wash bay, manage slips before shine

The wash bay holds the most water and the highest slip risk, especially at the ramp, the corners and the drying position. Slip-resistant surfacing, flush drain covers and a controlled spray area come first. Foam, wax and tyre dressing are rinsed or extracted before they dry into a film. Vehicles pass an absorbent mat or roller before leaving, and wet areas are barriered.

Wash water carries sand, detergent, oil and wax. Route it through a silt trap and a grease separator, then discharge or transfer it as local rules require. The cleaning log for those traps matters more than the equipment list.

Siben X9 ride-on scrubber-dryer recovering wash water in a workshop wash bay — fast water recovery reduces slip risk and prevents water migrating to adjacent dry bays.

Step 7: Keep four waste streams apart

Waste Stream	Contents	Container	Route
Oily waste	Used mineral oil, oil-water mixtures, oil filters, oil bottles, oily rags and gloves	Lidded, labelled	Permitted receiver
Lead-acid batteries	Used batteries	Acid-resistant, secondary containment	Certified recycler
Paint waste	Paint sludge, spent filter media	Separate, sealed	Hazardous waste contractor
General waste	Cardboard, film, tyres, metal	Segregated bins	General waste / recycling

The test of a good system is arithmetic: generated, stored and transferred quantities should reconcile every month. If they do not, either a container is missing or a stream is leaving by the back door.

Step 8: Prove it with three records

One page each.

1. Zone map with permitted methods, owners and check frequency.

2. Shift briefing that lists the areas, the tools, the forbidden touch points and the no-water boundary, signed rather than messaged.

3. Flow record for oil waste, batteries, paint sludge and wash water, with quantities and transfer notes.

Add a monthly equipment check: suction loss, filter damage, nozzle wear, hose bulging. Productivity claims such as minutes per bay or litres saved depend on traffic, layout and floor type, so keep them in the proposal and out of the acceptance terms.
