Automotive Manufacturing Facility Floor Cleaning Solutions
Author: SIBEN Publish Time: 2026-09-22 Origin: Site
Automotive manufacturing facilities operate at massive scale — a single plant can span 50,000 to 200,000 square meters, with multiple production zones including stamping, welding, painting, assembly, and logistics. Each zone generates different types of floor contamination: metal shavings in the stamping shop, welding spatter, paint overspray, oil leaks from machinery, and rubber marks from forklifts and AGVs. Maintaining clean, slip-resistant floors across these environments is critical for safety compliance, product quality, and operational efficiency. SIBEN offers a comprehensive range of industrial cleaning equipment specifically suited to the demands of automotive manufacturing.

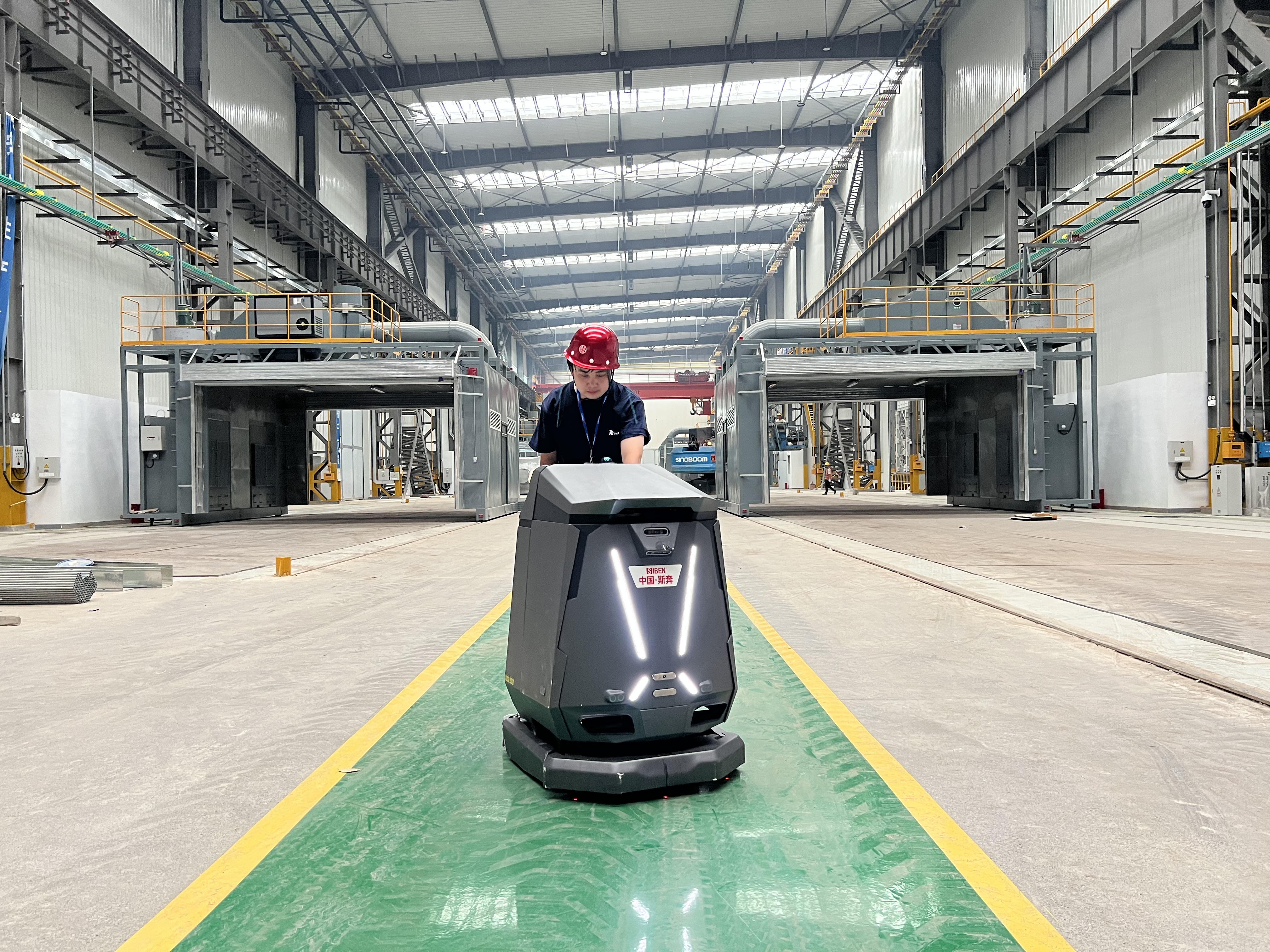

The Siben Thunder God AMR cleaning robot deployed at CITIC Heavy Industries — a major heavy machinery manufacturer — autonomously navigating a large industrial floor to collect debris and maintain surface cleanliness.
Floor Cleaning Challenges in Automotive Manufacturing Plants
Automotive production floors face contamination profiles that differ significantly from warehouses or commercial buildings. Understanding these challenges is the first step in selecting the right cleaning equipment.
Oil and Grease Accumulation
Hydraulic presses, CNC machines, welding robots, and conveyor systems all rely on lubricants and hydraulic fluids. Over time, micro-leaks deposit oil films on factory floors, creating slip hazards and attracting dust that forms stubborn grime layers. Standard sweeping alone cannot remove oil-based contamination — scrubbing with appropriate cleaning agents is essential.
Metal Shavings and Stamping Debris
The stamping shop generates significant metallic debris — offcuts, trimmings, and fine metallic dust. These particles can damage floor coatings if ground under vehicle tires, and metallic dust poses ignition risks near welding operations. Heavy-duty sweepers with powerful suction and large debris capacity are required.
Paint Overspray and Chemical Residues
Paint booths and surrounding areas accumulate overspray that bonds tenaciously to floor surfaces. Chemical pretreatment zones leave alkaline and acidic residues. These contaminants require scrubbing equipment capable of dispensing and recovering chemical cleaning solutions.
Forklift and AGV Traffic
Automotive plants run heavy forklift and AGV traffic 24/7. Rubber tire marks, especially in turning zones and intersection points, create visible black streaks that degrade floor appearance and can become slippery when wet. High-pressure scrubbing is needed to restore surface texture.
Continuous Operation Requirements
Automotive manufacturing typically runs two or three shifts. Cleaning must occur during production without interrupting operations, which means equipment must be quiet, maneuverable, and able to operate safely alongside personnel and vehicles. Noise levels above 70dB(A) can interfere with communication and safety alarms.

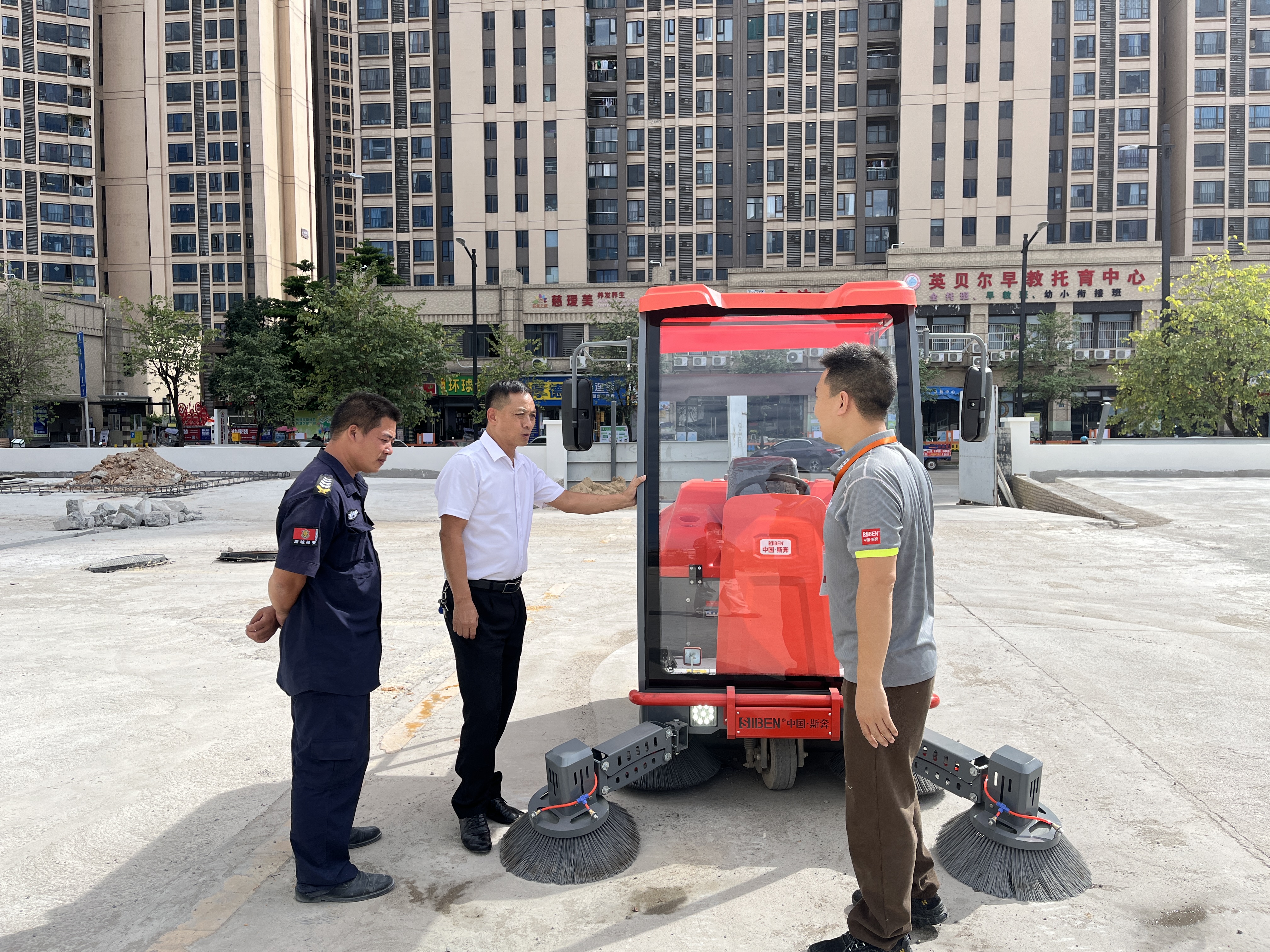

The Siben A600 ride-on sweeper in operation at an industrial venue — its 1900mm cleaning width and 9500㎡/h efficiency make it ideal for mid-to-large automotive production areas.
Siben Equipment Solutions for Automotive Manufacturing
Siben's product lineup addresses every zone of an automotive manufacturing facility, from autonomous robots for continuous cleaning to heavy-duty sweepers for debris-intensive areas and scrubbers for oil and chemical removal.
Thunder God AMR Cleaning Robot — Autonomous Floor Cleaning for Smart Factories
The Thunder God (雷神) cleaning robot is Siben's flagship AMR solution, designed for autonomous operation in complex industrial environments. Key specifications include:
Cleaning efficiency: 1,800㎡/h — covering a standard automotive assembly zone in a single shift
AMR autonomous navigation: LiDAR-based SLAM mapping enables the robot to navigate around production equipment, AGVs, and personnel without human intervention
Automatic water refilling and waste discharge: Enables continuous multi-shift operation without manual downtime
Intelligent obstacle avoidance: Real-time sensor fusion detects dynamic obstacles, ensuring safe operation alongside moving forklifts and production robots
Smart scheduling: Clean specific zones during planned production pauses or low-traffic windows
The Thunder God is ideal for body shop, paint shop approaches, and assembly areas where continuous cleanliness is required but human operators would interfere with production flow.
A600 Industrial Sweeper — Mid-to-Large Area Debris Collection
The A600 is a ride-on sweeper built for environments with significant dry debris — ideal for stamping shops, parts storage, and logistics corridors in automotive plants:
Cleaning width: 1900mm | Efficiency: 9,500㎡/h
Runtime: 4–4.5 hours on a single charge (4×100AH battery)
Debris capacity: 180L garbage hopper | Water tank: 60L
Noise level: 60dB(A) — quiet enough for use during active production
Main brush: 800mm | Side brushes: 4×300mm diameter
Climbing capacity: ≤35° — handles ramps and dock areas
Total power: 3,780W across drive, brush, suction, and dust motors
Filtration: 8㎡ roller-style dust filter for fine particle capture
A900 Lithium-Powered Sweeper — Maximum Coverage for Mega Facilities
For the largest automotive facilities — final assembly halls, logistics centers, and outdoor yards — the A900 delivers unmatched performance:
Cleaning width: 1950mm | Efficiency: 16,000–22,000㎡/h
Runtime: 5–6 hours | Travel speed: 0–7km/h
Debris capacity: 240L | Water tank: 300L
Side brushes: 4×500mm diameter for maximum edge coverage
Smart control system: Electric brake, anti-slip, intelligent drive control
Battery options: Lead-acid maintenance-free 48V (200AH×8) or 200AH lithium battery
Vacuum filtration: 2×4.2㎡ — captures fine dust from brake and tire wear
Vehicle weight: 1,146kg | Dimensions: 2650×1950×2560mm
X-Series Floor Scrubbers — Oil and Chemical Spill Removal
Siben's X2–X8 scrubber series provides the deep-scrubbing capability needed for oil-contaminated floors, paint overspray zones, and chemical pretreatment areas. With adjustable brush pressure, solution dispensing, and squeegee recovery, the X-Series removes embedded grime that sweeping alone cannot address.

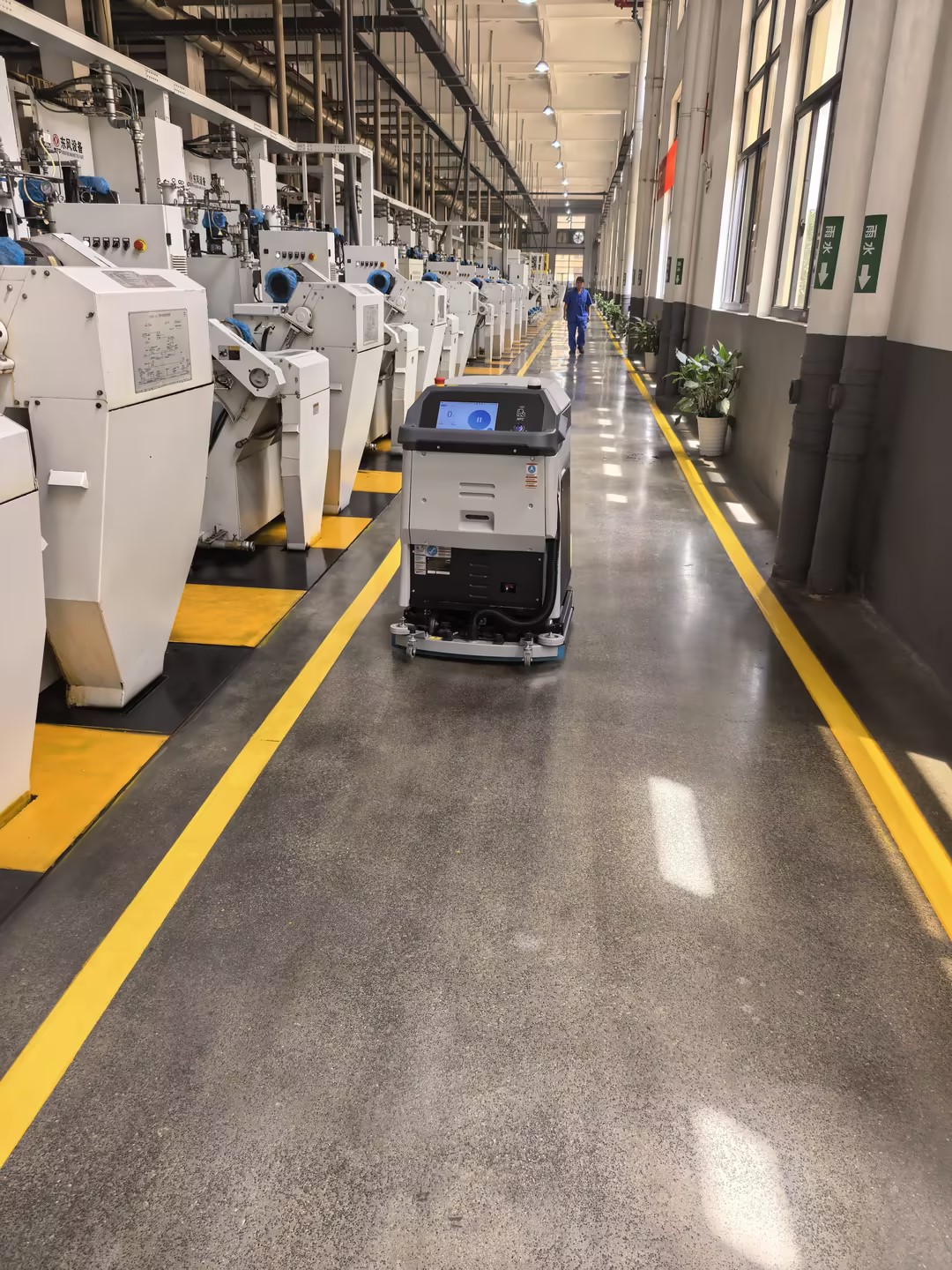

The Siben Thunder God GT cleaning robot deployed at Zhejiang Jack Technology — a precision equipment manufacturer — demonstrating autonomous cleaning capability in a clean manufacturing environment comparable to automotive component production.
Deployment Strategy: Matching Equipment to Production Zones
A systematic approach to equipment deployment ensures optimal cleaning outcomes across all automotive production zones:
| Production Zone | Primary Contaminants | Recommended Equipment | Cleaning Frequency |
|---|---|---|---|
| Stamping Shop | Metal shavings, oil | A600 sweeper + X-Series scrubber | 2× per shift |
| Welding Shop | Weld spatter, metallic dust | A900 sweeper (fine dust filtration) | 1× per shift |
| Paint Shop Periphery | Paint overspray, chemicals | X-Series scrubber (chemical solution) | 1× per shift |
| Assembly Hall | General dust, tire marks | Thunder God AMR robot | Continuous |
| Logistics & Warehouse | Pallet debris, dust, forklift marks | A900 sweeper (22,000㎡/h) | 1-2× per shift |

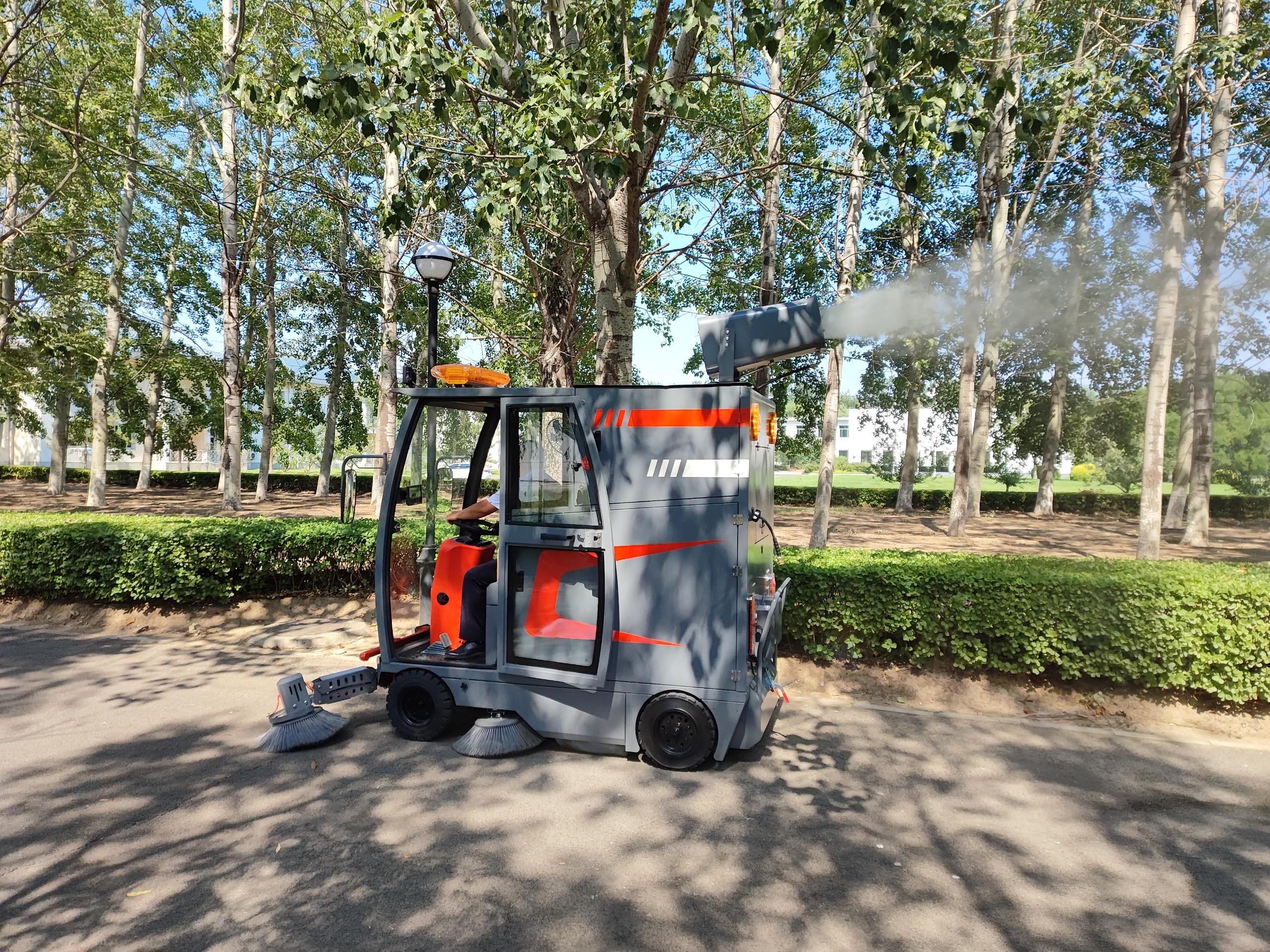

The Siben A900 lithium-powered sweeper in field operation — with 22,000㎡/h efficiency and 5-6 hour runtime, it covers the largest automotive logistics zones in a single pass.
ROI: Cost Savings from Automated Floor Cleaning in Auto Plants
Investing in the right cleaning equipment delivers measurable returns for automotive manufacturers:
Labor reduction: One Thunder God AMR robot replaces 2–3 cleaning workers per shift, with annual savings of 150,000–250,000 RMB per robot
Safety improvement: Cleaner floors reduce slip-and-fall incidents by 40–60%, lowering insurance premiums and lost-time injury costs
Floor coating longevity: Regular removal of abrasive debris extends epoxy and polyurethane coating life by 2–3 years, deferring recoating costs
Production uptime: AMR robots clean during production without requiring lane closures or shift pauses, maintaining 100% operational continuity
A900 coverage: A single A900 covering 22,000㎡/h can clean a 100,000㎡ logistics zone in under 5 hours — what would take 8 manual workers a full shift
Most automotive facilities achieve full ROI on Siben equipment within 12–18 months of deployment.
Frequently Asked Questions
1. What type of floor cleaning equipment is best for automotive manufacturing plants?
The best floor cleaning equipment for automotive manufacturing plants includes AMR autonomous cleaning robots like the Siben Thunder God (1,800㎡/h) for autonomous operation, heavy-duty sweepers like the A900 (up to 22,000㎡/h) for large debris collection, and ride-on floor scrubbers for oil and chemical spill removal. Equipment should be selected based on the specific production zone — stamping, welding, painting, or final assembly.
2. How does AMR cleaning technology work in automotive factories?
AMR (Autonomous Mobile Robot) cleaning technology uses LiDAR and SLAM navigation to map the factory floor, plan optimal cleaning routes, and navigate around production equipment and personnel without human intervention. The Siben Thunder God AMR robot achieves 1,800㎡/h cleaning efficiency with automatic water refilling and waste discharge, enabling continuous operation across shifts.
3. How much area can Siben sweepers cover in automotive facilities?
Siben sweepers cover from 5,580㎡/h (A300) to 22,000㎡/h (A900). For automotive manufacturing facilities, the A600 handles 9,500㎡/h with a 1900mm cleaning width and 4-4.5 hour runtime, while the A900 achieves 16,000-22,000㎡/h with a 1950mm width and 5-6 hour runtime, making it ideal for mega-facility logistics zones.
4. What are the main floor cleaning challenges in automotive manufacturing?
The main floor cleaning challenges in automotive manufacturing include oil and grease accumulation from machinery, metal shavings and stamping debris, paint overspray in painting booths, rubber tire marks from forklifts and AGVs, and the need to clean during production without interrupting operations. Facilities also require compliance with OSHA slip-resistance standards and environmental regulations for waste water disposal.
5. What is the ROI of automated floor cleaning in automotive plants?
Automated floor cleaning in automotive plants typically delivers ROI within 12-18 months through labor cost reduction (1 AMR robot replaces 2-3 workers per shift), reduced slip-and-fall incidents (lowering insurance premiums), extended floor coating life, and improved production uptime. A single A900 sweeper covering 22,000㎡/h can clean an entire shift's worth of debris in under 2 hours.
