Industrial Cleaning Equipment Noise Control Technology: The Engineering Behind 60dB Quiet Cleaning

When most buyers evaluate industrial sweepers, they compare cleaning width, efficiency ratings, and battery capacity. Yet one specification often overlooked — noise level — can determine whether a machine is usable in half the environments where it's needed. A sweeper that produces 80+ decibels cannot operate during school hours, inside hospital corridors, or in occupied office buildings. It forces cleaning into night shifts, increasing labor costs and reducing operational flexibility.

Siben's A300 and A600 sweepers both achieve 60 dB(A) at operating distance — roughly the sound level of normal conversation. This is not accidental. It is the result of systematic engineering across four domains: motor vibration isolation, brush system acoustics, airflow and filtration design, and chassis sound insulation. This article explains how each works and why 60dB matters for your facility.

Why 60dB Matters: Understanding Noise in Industrial Environments

The decibel scale is logarithmic, meaning every 3 dB increase represents a doubling of sound energy. A machine rated at 78 dB produces eight times more sound energy than one at 60 dB. While the human ear perceives a 10 dB difference as a "doubling" of loudness, even a 5 dB reduction is clearly noticeable. This is why the gap between a typical industrial sweeper at 75-85 dB and Siben's 60 dB rating is not marginal — it represents a 6x to 16x reduction in sound energy.

In practical terms, 60 dB(A) is the threshold that unlocks daytime cleaning in occupied spaces. The World Health Organization recommends indoor noise levels below 65 dB for educational environments and below 35-40 dB for hospital patient areas during nighttime. While 60 dB is still above nighttime hospital limits, it falls well within acceptable daytime levels for schools, retail spaces, office buildings, and industrial facilities with mixed-use areas.

Occupational noise exposure regulations further underscore the importance. OSHA requires hearing protection at sustained 85 dB exposure over 8 hours. A sweeper operating at 75-85 dB places operators in the threshold zone where cumulative hearing damage becomes a legitimate concern. At 60 dB, no hearing protection is needed, and operator fatigue from noise stress is significantly reduced.

The Four Pillars of Noise Control in Siben Sweepers

1. Motor Vibration Isolation

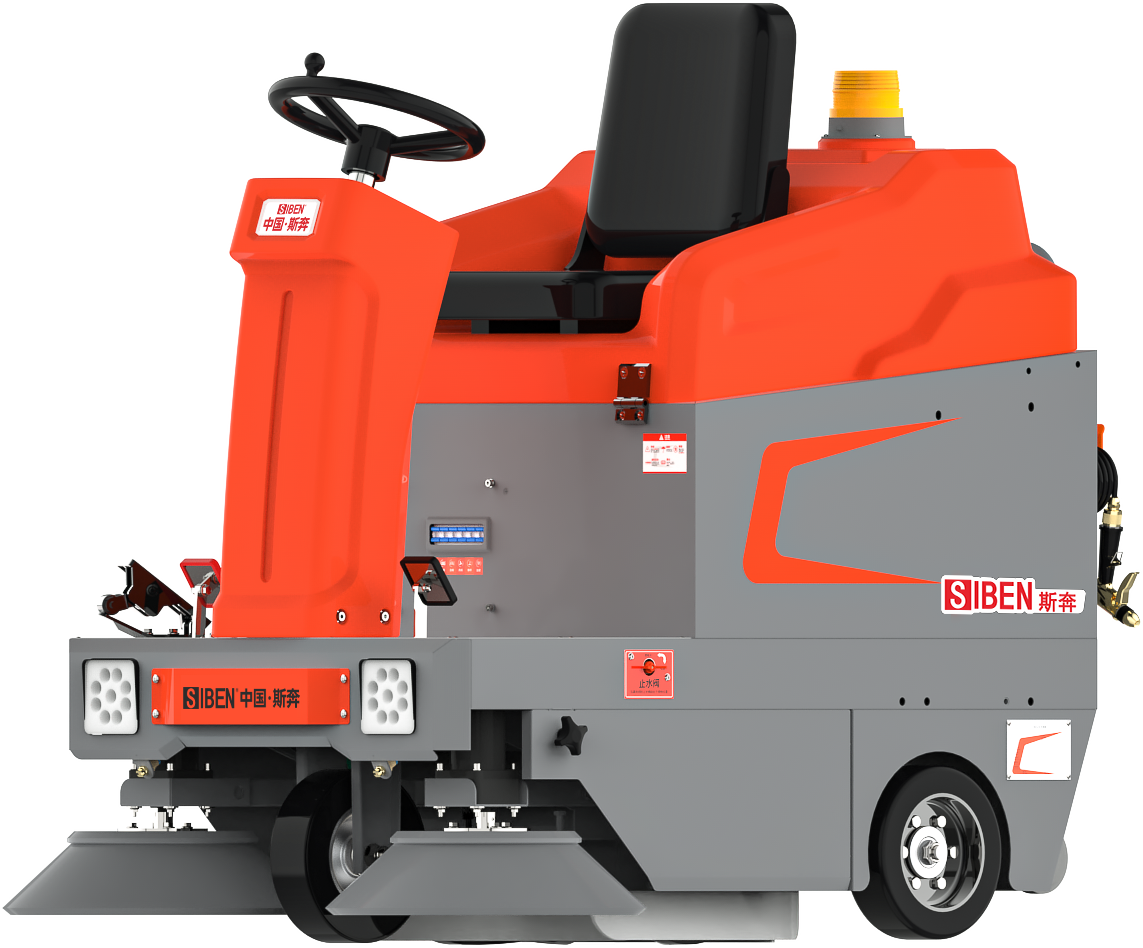

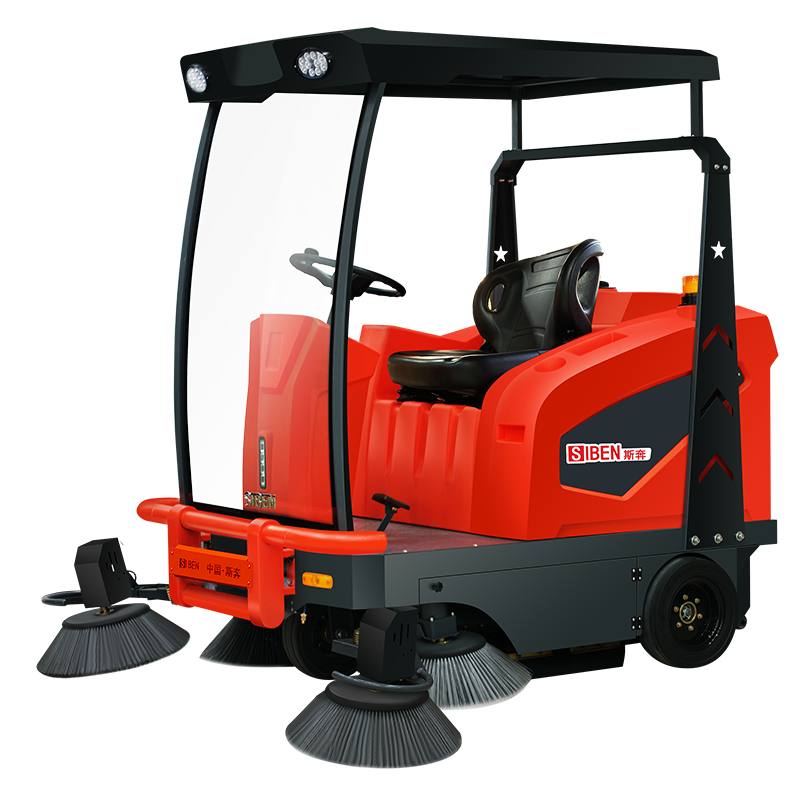

Every sweeper contains multiple motors — walk motors, main brush motors, side brush motors, and vacuum motors. The A300 runs a walk motor (800W), main brush motor (600W), two side brush motors (100W each), and a vacuum motor (300W). The A600 scales up significantly: walk motor (1500W), main brush motor (1200W), four side brush motors (90W each), vacuum motor (600W), plus an 80W dust-shaking motor. Yet both machines produce 60 dB(A).

The key technology is vibration isolation. Each motor is mounted on rubber-damped isolators that decouple mechanical vibration from the chassis before it can be amplified into airborne sound. Motor housings incorporate acoustic damping materials that absorb high-frequency mechanical noise at the source. The motor mounting brackets are designed with calculated stiffness — rigid enough to maintain alignment under load, but compliant enough to filter vibration frequencies above 200 Hz that contribute most to perceived loudness.

This approach is scalable. The A600's more powerful motors generate more vibration energy, but the isolation system is proportionally engineered to handle it. The result: doubling the total power from 2000W to 3780W does not increase the external noise level.

2. Brush System Acoustics

Brush-to-surface contact is the second major noise source. The main brush rotates against the floor, sweeping debris into the dust container, while side brushes sweep edges and corners. Friction between brush bristles and floor surface generates broadband noise — and if the brush is imbalanced, it adds mechanical vibration that propagates through the entire chassis.

Siben addresses brush noise through dynamic balancing and geometry optimization. The A300's main brush (500mm width) and the A600's main brush (800mm width) are precision-balanced to minimize rotational eccentricity. A brush that wobbles by even 1mm at operating RPM generates significant vibration; balanced brushes rotate smoothly, transferring energy into cleaning action rather than noise.

Brush pressure is another critical factor. Excessive downward force increases friction noise and wears brushes faster; insufficient pressure reduces cleaning effectiveness. Siben's brush pressure is calibrated to maintain optimal contact across floor surfaces, generating just enough friction for effective sweeping without unnecessary acoustic output.

3. Airflow and Filtration System Engineering

The vacuum system — which pulls dust and debris through the filter into the collection bin — is the third noise source. Air rushing through narrow passages, impeller blades spinning at high RPM, and turbulence at filter interfaces all generate aerodynamic noise. This is where filtration design plays an unexpected acoustic role.

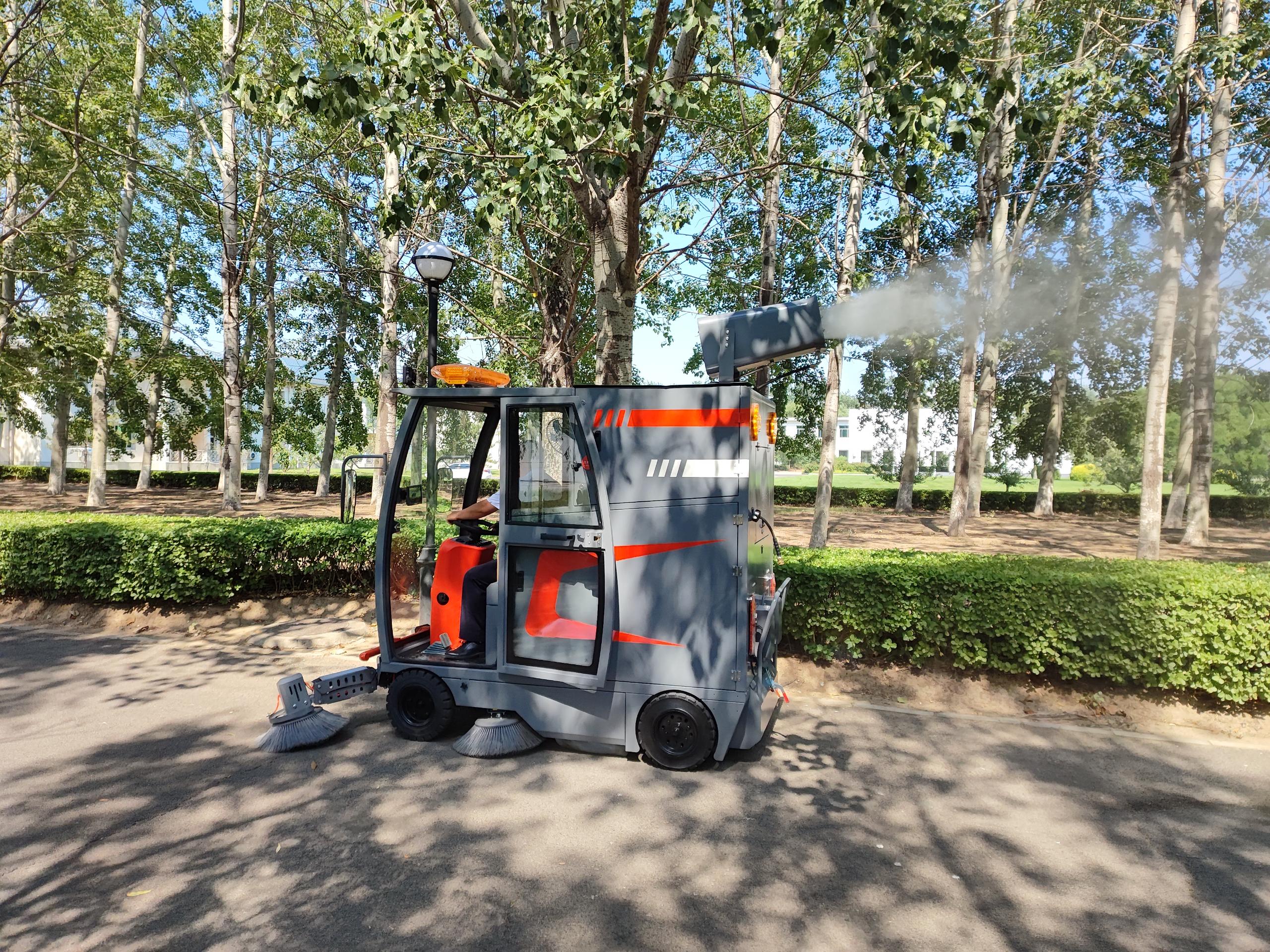

Siben's A300 uses a roller-type dust filter with 5㎡ of filtration area. The A600 uses the same filter type with 8㎡ of area. The A900 upscales to dual vacuum filtration with 2×4.2㎡ (8.4㎡total). Larger filtration area means lower air velocity through the filter medium at any given flow rate. Lower velocity means less turbulence, less pressure drop, and less aerodynamic noise.

The impeller housing design also matters. Siben's vacuum impellers use backward-curved blades that produce less aerodynamic noise than forward-curved designs. The housing interior is smooth-walled to minimize turbulence, and intake ports are sized to match the impeller's flow characteristics, preventing the "whistling" effect that occurs when air is forced through undersized openings.

4. Chassis and Structural Sound Insulation

The final layer of noise control is structural. A sweeper's sheet metal chassis can act as a soundboard, amplifying mechanical vibrations from motors and brushes into airborne noise. Without proper damping, a chassis can add 5-10 dB to the machine's effective noise output.

Siben addresses this through constrained-layer damping. Sound-absorbing materials are applied to the interior surfaces of the chassis panels, converting vibration energy into minimal heat through internal friction. The panels themselves are designed with stiffening ribs that shift resonant frequencies away from the operating RPM range of the motors, preventing the chassis from "ringing" at specific speeds.

The dust collection bin — a large hollow container that naturally amplifies sound — is lined with acoustic foam that absorbs reflected sound waves. This prevents the bin from functioning as a resonance chamber. Sealed gaskets between the bin and the chassis body prevent noise leakage through gaps that would otherwise act as acoustic short circuits.

Comparative Noise Performance Across the Siben Sweeper Line

The data reveals an engineering feat: the A600 produces 89% more total power than the A300 (3780W vs 2000W) and cleans 70% more area per hour (9,500 vs 5,580 ㎡/h), yet both machines produce identical 60 dB(A) noise levels. This demonstrates that noise is not a function of power — it is a function of how effectively sound energy is isolated, absorbed, and dissipated before reaching the operator and surrounding environment.

Real-World Application: Quiet Cleaning in Noise-Sensitive Environments

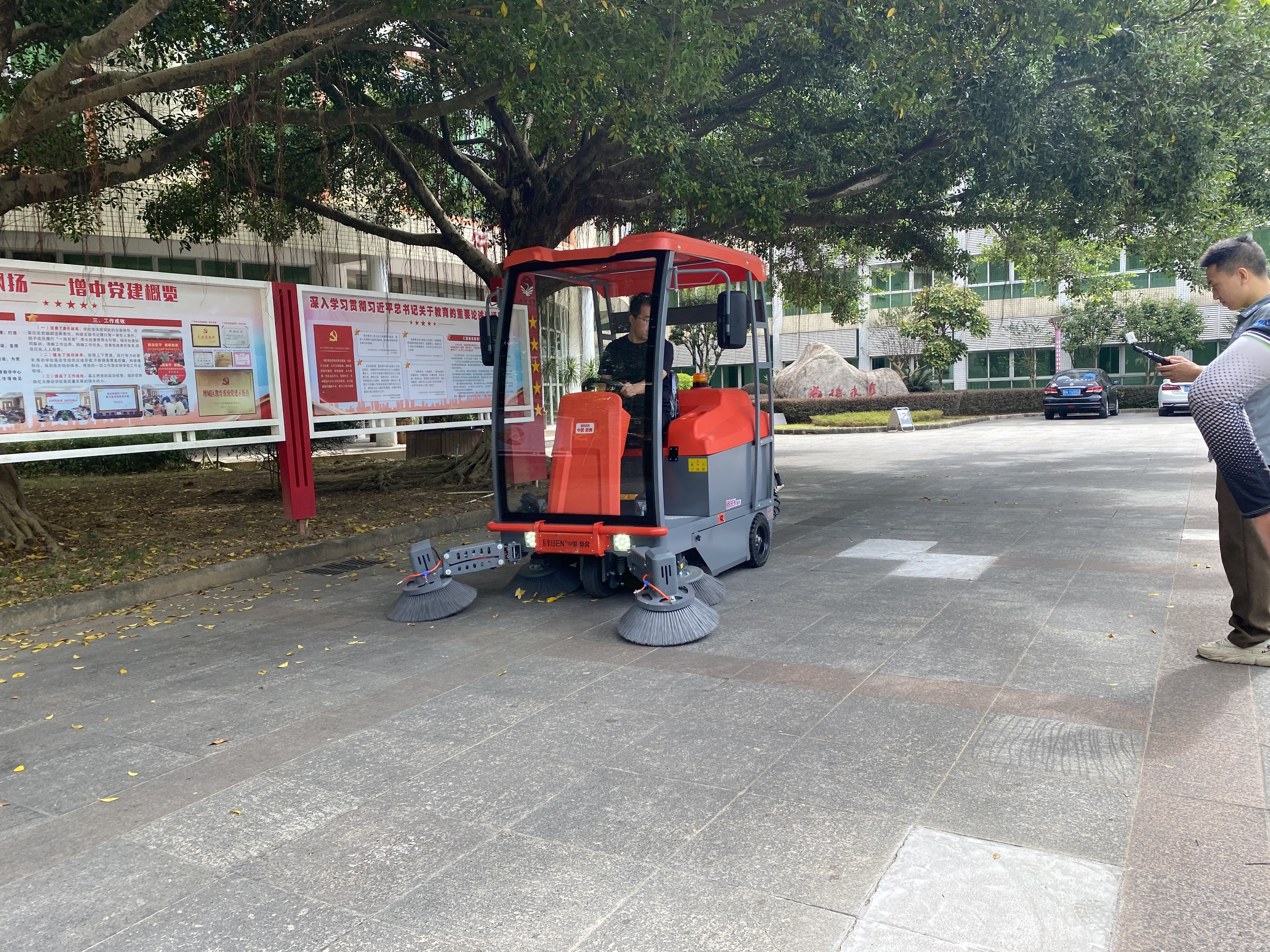

The true value of 60dB operation becomes apparent in deployment scenarios where noise is a gating constraint. Siben's A600 has been deployed at Zengcheng Middle School (增城中学) in Guangzhou, where daytime cleaning was required without disrupting classes. Conventional sweepers operating at 75-85 dB would be unacceptable during school hours; the A600's 60 dB rating allows cleaning operations during the school day.

Similar requirements apply across many facility types:

• Hospitals and clinics: Daytime corridor cleaning without disturbing patients or medical consultations

• Shopping malls and retail: Cleaning during business hours without affecting customer experience

• Office buildings: Daytime lobby and common area cleaning during working hours

• Libraries and museums: Acoustically sensitive spaces requiring minimal disruption

• Food processing facilities: Where noise regulations may apply during production shifts
