|Specifications
Working Voltage | 24 V |
Battry Life | • Dust Mopping: 10 h • Floor Washing: 5 h |
Battery Capacity | 120 Ah |
Cleaning Efficiency | 2010 ㎡/h |
Clean Water Tank Capacity | 70 L |
Dirty Water Tank Capacity | 50 L |
Cleaning Width | 510 mm |
Cleaning Speed | 4 km/h |
Water Suction Width | 810 mm |
Maximum Travel Speed | 1.2 m/s |
Water Suction Motor Power | 400 W |
Disc Brush Motor Power | 450W |
Drive Motor Power | 400 W |
Brush Contact Pressure | 27kg |
Climbing Gradient | 6% |
Minimum Passage Width | 100 cm |
Machine Weight | 199 kg |
Machine Dimensions (L x W x H) (mm) | 1160*580*1210mm |
Package Dimensions (L x W x H) (mm) | 1450*870*1450mm |
|Key Highlights
Versatile Modular Design: Supports interchangeable modules for scrubbing and dust mopping. It can also be equipped with disinfection components for specialized tasks.

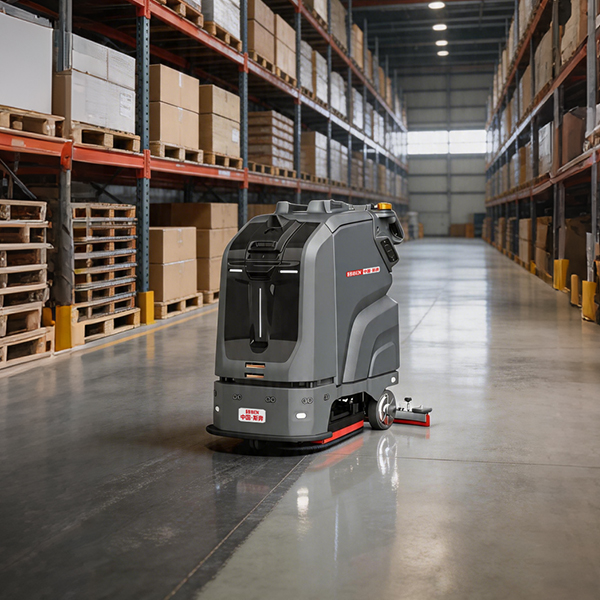

High Cleaning Efficiency: Delivers a downward pressure of 27kg to effectively remove stubborn stains, achieving a maximum cleaning efficiency of 2,040 m²/h.
Extended Runtime: Features a 70L clean water tank and a 120Ah battery, ensuring a consistent supply of water and power for long-duration operations.
Simple Maintenance: Tool-free quick-release structure for the squeegee, magnetic brush disc, and rubber strips. The fully open recovery tank ensures zero-threshold maintenance.
International Standards: Designed in compliance with European safety regulations (CE), with a spacious battery compartment to accommodate safe lead-acid batteries.
|Functional Features
User-Centric "Zero-Learning" Operation
Developed based on user logic with polished interaction details, achieving a truly intuitive robotic operating system with zero learning cost.
Dual-Fusion Positioning System
Utilizes proprietary AI algorithms for laser and vision dual-fusion positioning to create high-precision maps and realize accurate self-localization.

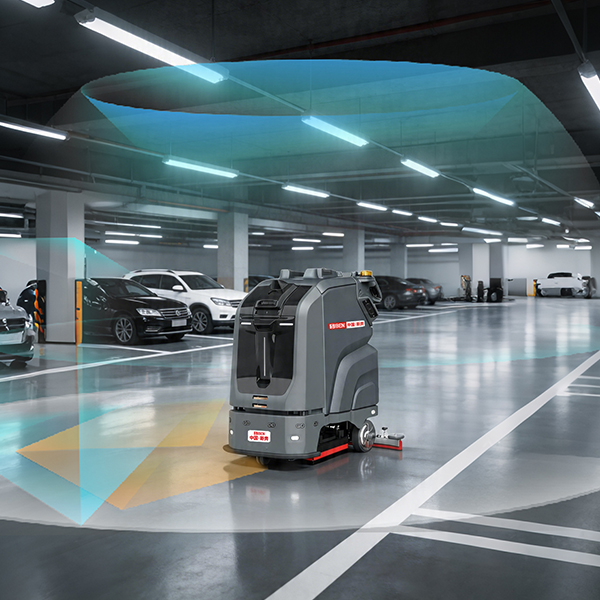

Safety & Reliability
Deeply integrates a self-developed multi-sensor matrix for intelligent recognition, enabling rapid emergency stops and obstacle avoidance to ensure workplace safety.

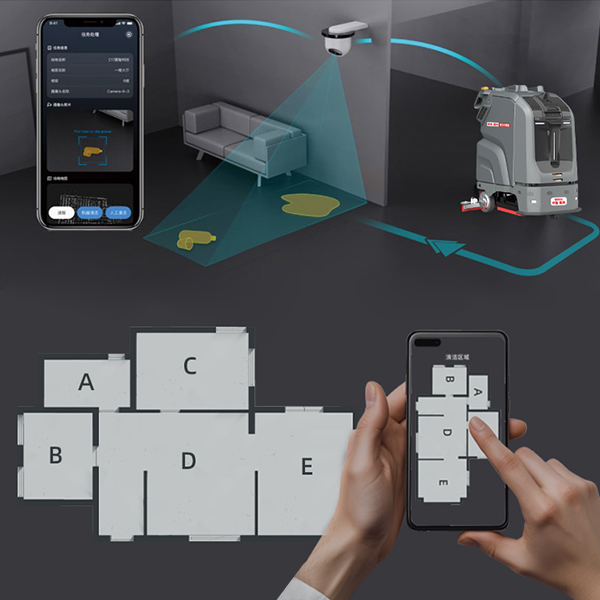

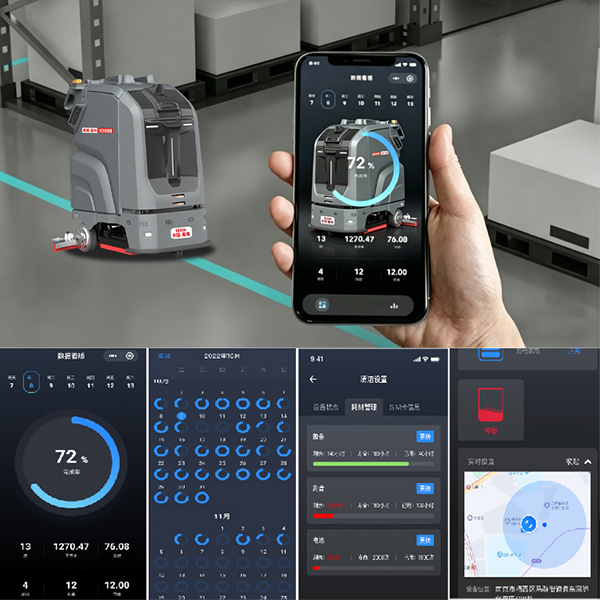

Digital Management
Features a digital information management system for real-time monitoring and comprehensive statistical analysis of machine performance.
