Oil Mist & Floor Oil Contamination Control in Machining & Stamping Workshops: Nine Steps
Author: SIBEN Publish Time: 2026-10-12 Origin: Site
The real cleaning challenge in machining workshops is not "whether to sweep"—it's two things happening simultaneously: cutting fluid gets atomized during high-speed cutting and high-pressure cooling, forming oil mist that floats in the air; the same oil mist then settles and combines with equipment drips to form oil contamination on floors and around machines. Treating only one side means the other quickly cancels out the results.

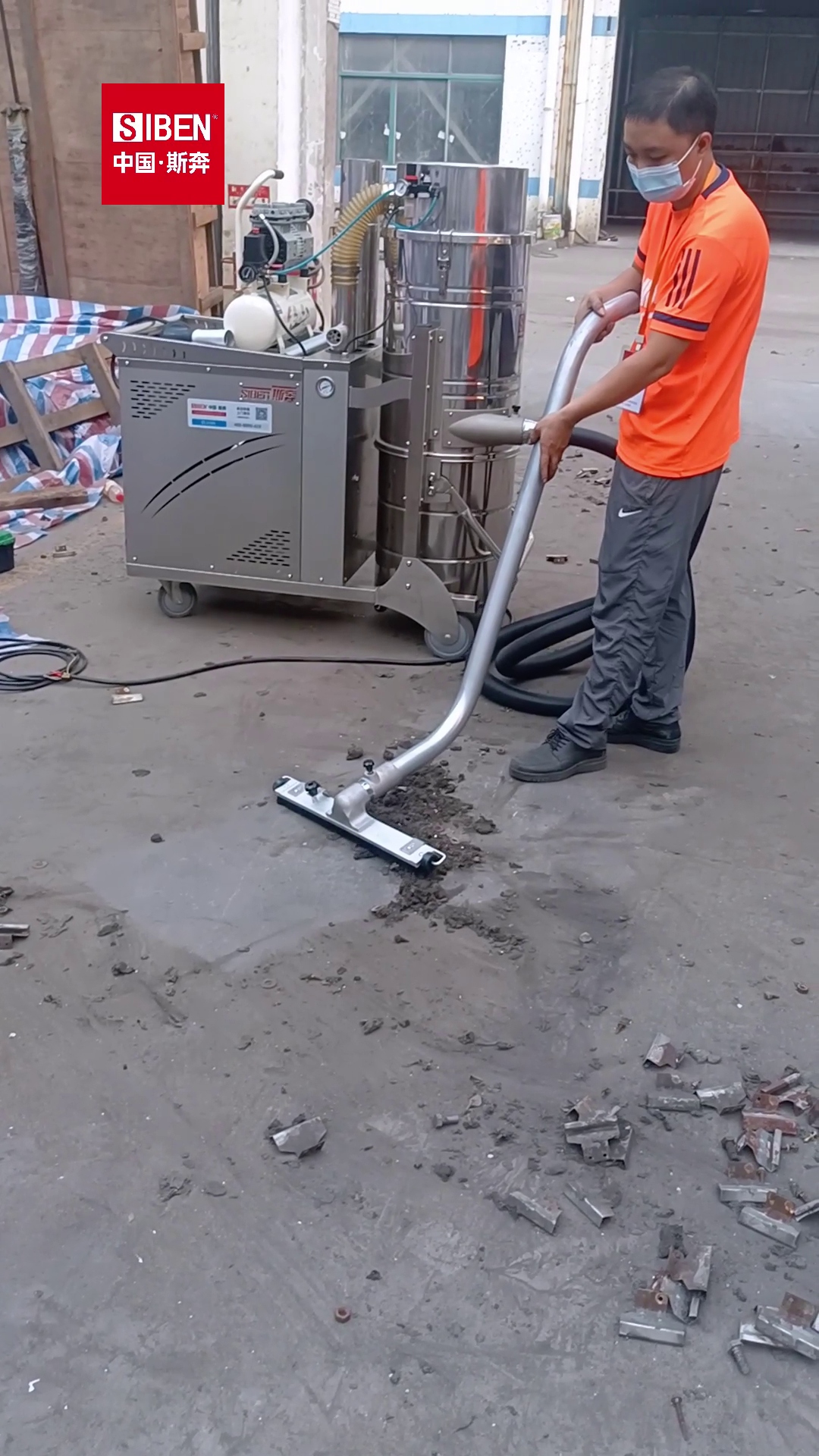

Siben XC2200-7500MC three-phase industrial vacuum collecting metal dust and oil mist at the machining point—first step before wet cleaning to prevent oil sludge.
1. Why Treat Oil Mist and Floor Oil Together
Consider the causal chain: cutting fluid is atomized at the machining point. Part diffuses to the ceiling and far corners; part settles around machine tools, footings, and passages. The settled material mixes with iron filings and dust to form oil sludge; when wet, the floor becomes slippery. The sludge is then carried by foot traffic to wider areas.
The treatment sequence should be: first contain and extract oil mist at the source; then clean settled floor contamination on schedule; meanwhile separate tramp oil from the cutting fluid surface. Do all three together for compounding returns.
2. Identify Sources: Where Oil Mist Comes From and Where Oil Settles
Oil mist generation is not uniform. Fully enclosed machining centers, Swiss-type lathes, grinders, broaching, and gear hobbing differ in atomization intensity. High-pressure cooling, deep-cavity machining, and high-flow flushing produce higher concentrations. Stamping areas see more lubricant mist mixed with metal dust and welding fumes.
Create a "generation point inventory" by process: equipment type, machining method, cooling method, utilization rate. Then decide on single-machine or zoned treatment. Mark floor contamination positions on a floor plan rather than relying on memory.
3. Source Collection & Extraction: Hood, Branch, Main, and Fan Position
Three on-site verifiable points:
Hood position and distance—keep it close and form an envelope in the airflow direction
Pipe routing and slope—long horizontal runs or insufficient slope cause internal oil accumulation
Fan position and negative pressure—place fan after purification so piping runs under negative pressure
Also design the oil return path: intercepted oil droplets must have somewhere to go. Specific designs should be determined by professionals based on site conditions.
4. Floor Oil & Anti-Slip: Frequency, Tools, Sequence
| Zone | Typical Areas | Frequency & Method |
|---|---|---|
| Heavy | Under machines, chip conveyors, fluid units | Per shift; local absorption/vacuum first, then scrub |
| Medium | General workshop floor | Daily |
| Light | Offices and corridors | Weekly |
Operation sequence: high before low, dry before wet. First use a filtered industrial vacuum to remove iron filings and dry dust. Then use a floor scrubber for wet cleaning with sewage recovery.
5. Cutting Fluid Tramp Oil Separation & Reuse
After some use, cutting fluid develops surface tramp oil, odor, and increased impurities. Consider adding tramp oil separation: remove surface oil and impurities to reduce spoilage and odor. The fluid can continue to be used with concentrate top-up and concentration maintenance.
Specific ratios, concentration control, and replacement criteria should follow supplier technical data and on-site testing conclusions.
6. Oily Waste Liquid Storage & Transport
| Action | Detail |
|---|---|
| Separate | Oily sewage and waste cutting fluid collected separately |
| Label | Containers marked with category, source area, and collection date |
| Record | Collection, storage, and transport ledger for traceability |
Waste properties and disposal requirements must be determined by competent authorities and qualified disposal units. Enterprises must not self-classify or discharge into sewers.
7. Tool Selection: Vacuum, Scrubber, Pressure Washer
Dry metal dust & filings → filtered industrial vacuum
Floor oil & emulsion residue → floor scrubber with sewage recovery
Equipment shells, stubborn scale → high-pressure water with cleaner
Verified Siben parameters for reference:
| Model | Power | Key Specs | Best For |
|---|---|---|---|
| XC1500L | 1800–2100W (DC24V) | Airflow 351–380 m³/h; 0.3μm/250m²; 100L | Mobile cleaning; 100Ah, 3–4h runtime |
| XC2400T | 2400–3600W (220V) | Airflow 354–531 m³/h; 210–220mbar; 100L | Fixed-point collection |
| X5S | — | 510mm width; 860mm suction; 60L/65L | Hand-push wet cleaning; 58dB(A) |
| X6 | — | 600mm width; 1080mm suction; 85L/90L | Ride-on wet cleaning; 60dB(A) |
| C100 | 2600W (220V) | 100–130bar; 15L/min; 10m hose | Equipment surfaces, stubborn scale |
| C35 | 15kW (AC380V) | 100–350bar; 21L/min; 40+60 mesh | Heavy-duty oil scale removal |

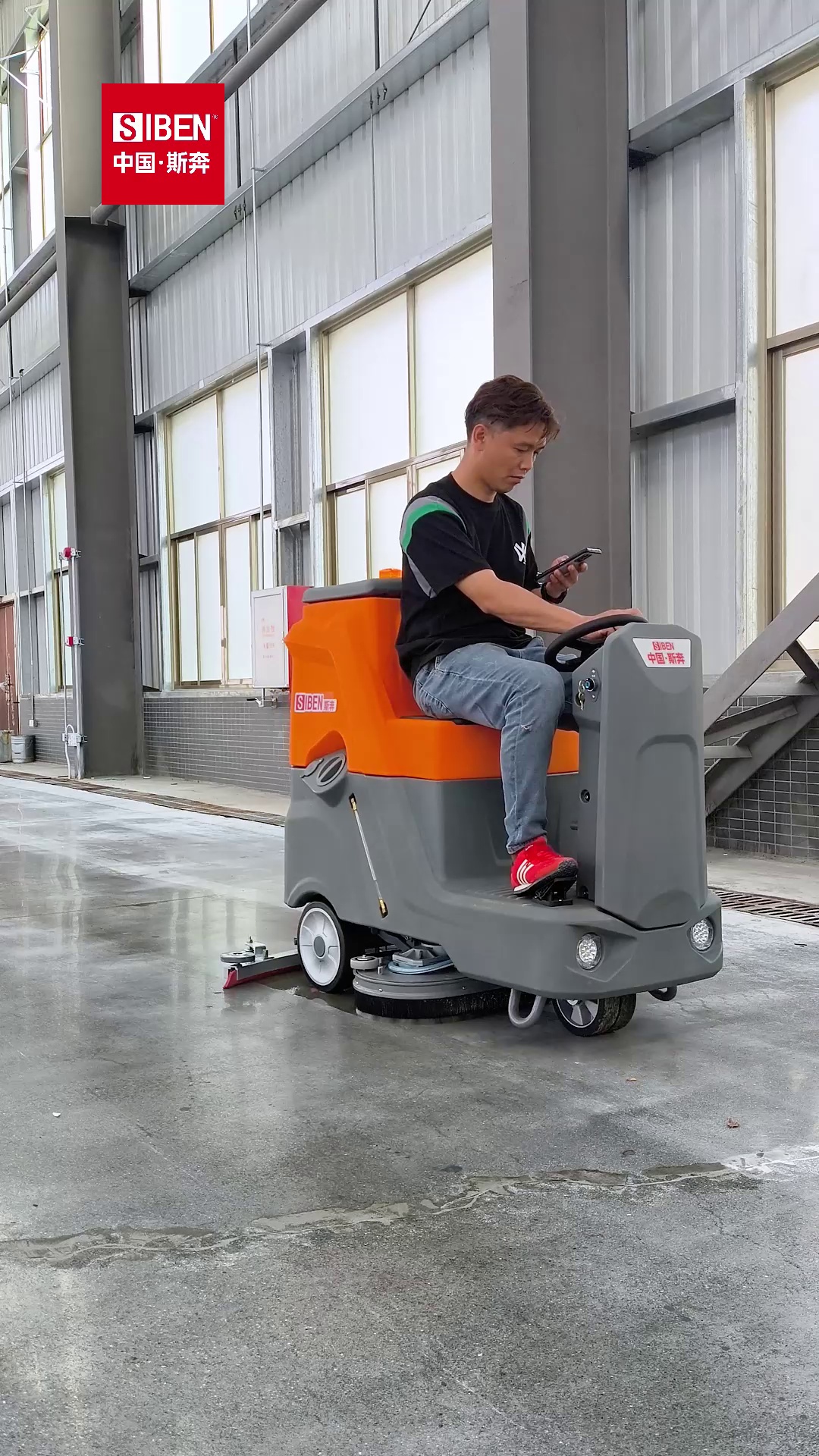

Siben X6 ride-on floor scrubber for large-area wet cleaning of oil-contaminated floors in machining and stamping workshops—efficient oil removal with sewage recovery.

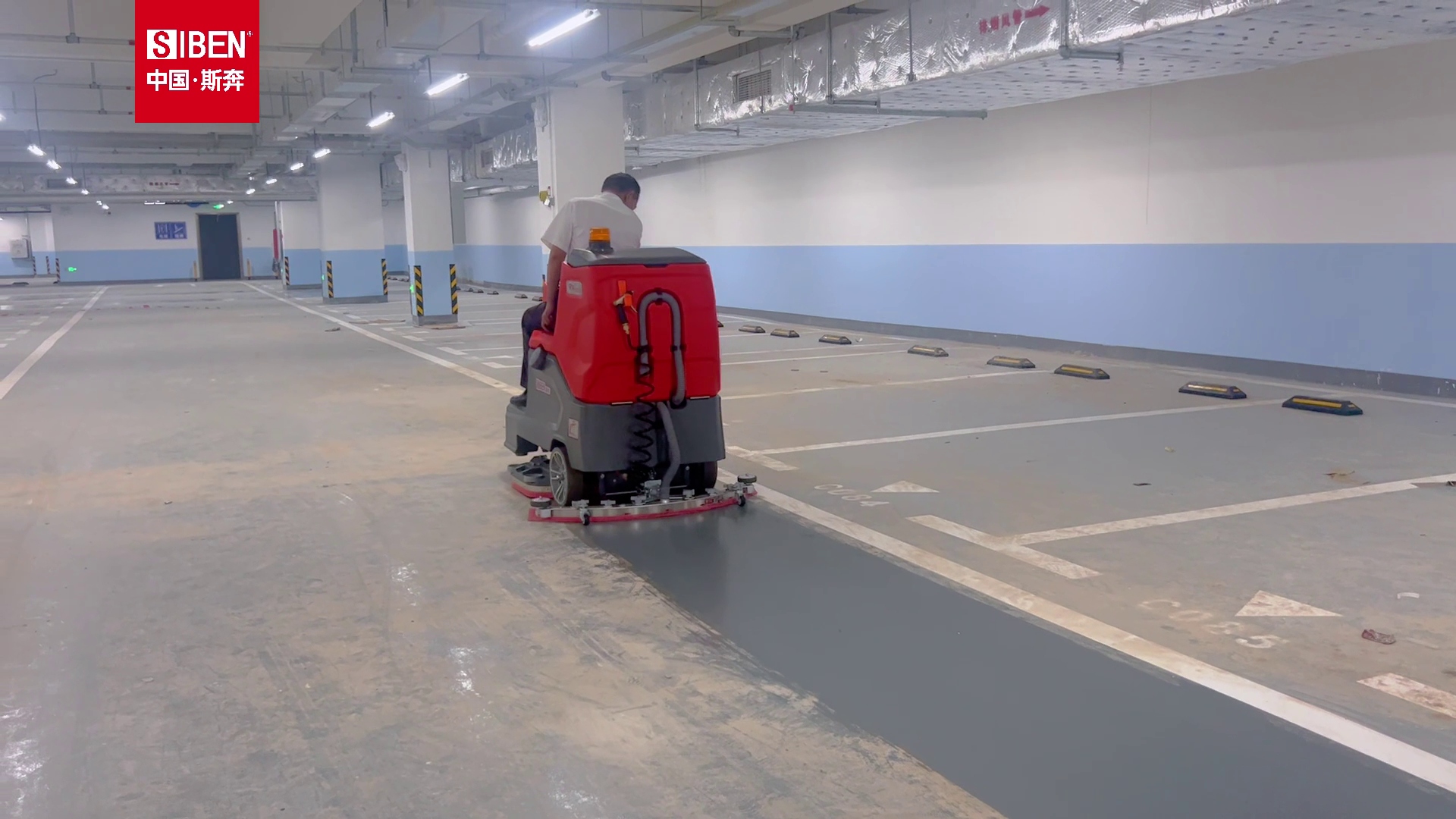

Siben X7 ride-on floor scrubber for large-area oil-contaminated floor cleaning in industrial workshops—wide cleaning path and sewage recovery for heavy-oil zones.
8. Work Scheduling & Environmental Compliance
Cleaning isn't something you can do anytime. Public pollution weather emergency response notices commonly require stopping spray painting, welding/cutting during specific periods.
Cleaning schedules must be managed within compliance windows: avoid high-pressure flushing, large-area wet cleaning during controlled periods. Stagger cleaning with dust/waste-generating operations. Write timing into the shift schedule.
9. Procurement & Acceptance
Public procurement notices show a trend: in stamping workshops, dust-collection grinders, welding fume purifiers, industrial vacuums, and ride-on scrubbers are procured together. Two takeaways: include cleaning equipment in the requirements book at project initiation; specify parameters and acceptance conditions clearly.
Recommend three-level acceptance:
| Level | Check Items |
|---|---|
| Pre-delivery | Random documents and nameplate parameters |
| On arrival | Model, quantity, appearance, spare parts list |
| Commissioning | Field-measured cleaning width, suction, runtime, noise; deliver consumables list and replacement cycles |
FAQ
Because oil mist continuously settles and combines with drips to form floor contamination. Sequence: source extraction first, then floor cleaning, with coolant tramp oil separation in parallel.
High before low, dry before wet: vacuum iron filings and dry dust first, then scrubber wet cleaning with sewage recovery.
Filtered industrial vacuum for dry dust, floor scrubber with sewage recovery for floor oil, high-pressure water for stubborn scale.
Separate, label, and record. Properties and disposal are determined by competent authorities and qualified units.
Three-level acceptance: factory, arrival, commissioning. Deliver consumables list with replacement cycles.
