|Specifications

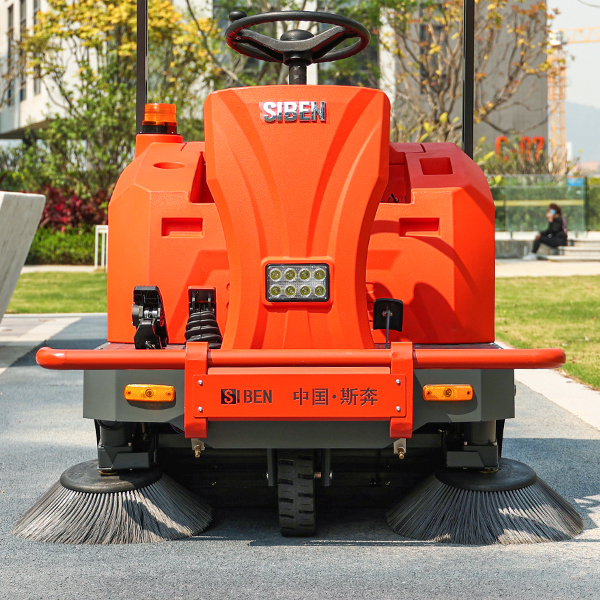

| Sweeping Width | 1400 mm | Working Speed | 1-9km/h |
| Side Brush Motor Power | 90 W x 2 | Gradeability | ≤ 30° |
| Working Voltage | 48 V | Working Noise | 60 dB(A) |
| Total Operating Power | 2200 W | Dust Collection Motor Power | 500 W |
| Water Tank Capacity | 90 L | Main Brush Motor Power | 950 W |
| Garbage Capacity | 120 L | Main Brush Size (L x D) (mm) | 690*300mm |
| Battery Life | 4-5 h | Side Brush Size | 2*500mm |
| Travel Motor Power | 1000 W | Maximum Working Speed | 1-9 km/h |
| Water Spraying Duration | 60 min | Turning Radius | 580 mm |
| Battery Capacity | 4 x 100 AH | Machine Weight | 430 kg |
| Dust Collection Filter Area | 8 m² | Machine Dimensions (L x W x H) (mm) | 1740*1356*1316 |
| Filter Material | Drum-Type Dust Separator Filter | Package Dimensions (L x W x H) (mm) | 1800*1267*1511 |
|Key Highlights

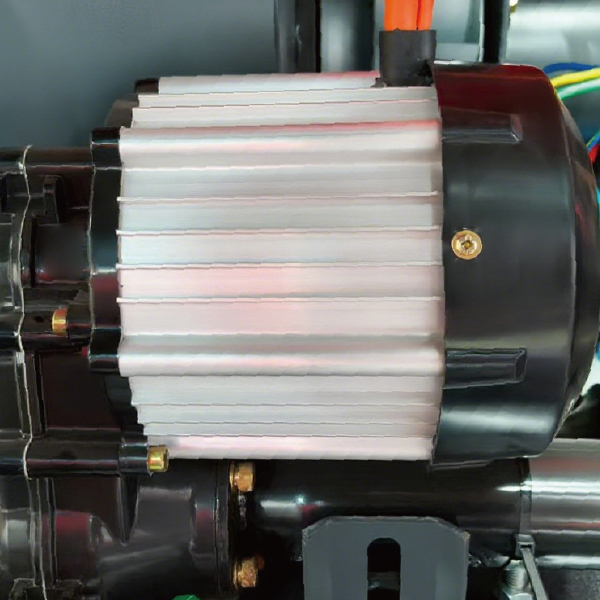

High-Efficiency Drive System: Equipped with a 1500W mid-mounted brushless rear-drive motor and a dual-chain power transmission system. It delivers robust power and is capable of handling inclines of up to 35°.

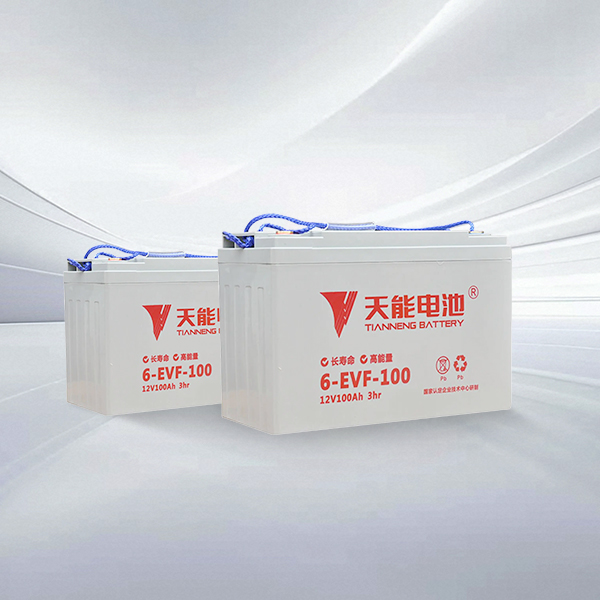

Long-Lasting Battery Life: Features a high-capacity 4*100AH battery pack, providing 3.5 to 4 hours of continuous operation on a full charge, ensuring cord-free convenience.
Advanced Braking System: Integrated with a high-pressure disc brake assembly, ensuring immediate stopping power and maximum safety when operating on slopes or complex terrains.
|Functional Features
1. Main Brush Throw-back Technology:
Utilizing the counter-rotation of nylon roller brushes, this technology leverages inertia to efficiently propel waste into the hopper.
2. Dual Dust Suppression System:
Atomizing Mist Spray: Equipped with a 60L water tank and dual misting nozzles, it actively suppresses airborne dust during operation to prevent secondary pollution.

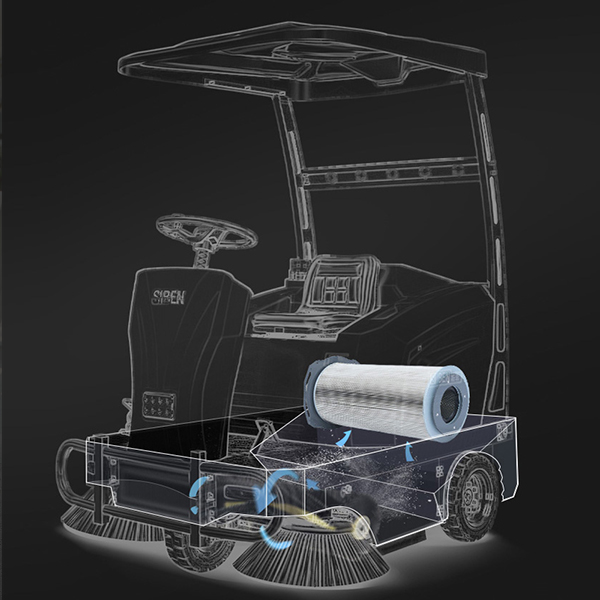

Powerful Filtration: A 600W suction fan works with an 8㎡ ultra-large non-woven filter. An integrated electric vibrator automatically clears the filter to prevent clogging.
3.Large Capacity Storage:
Features a 180L detachable waste container, reducing the frequency of dumping and making loading/unloading fast and convenient.
4. All-Terrain Adaptability:
Fitted with maintenance-free solid rubber tires (puncture-proof) and front-wheel spring shock absorbers to improve maneuverability and equipment stability.

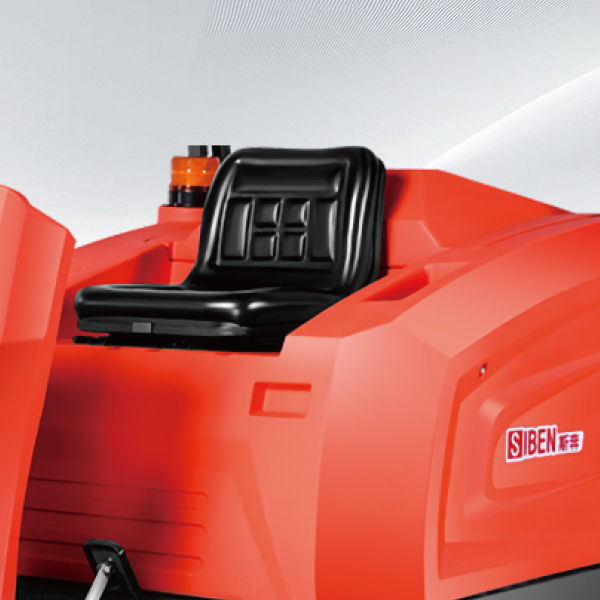

5. Bodywork:
Constructed using high-quality hollow-core rotomolding (rotational molding) for enhanced durability.

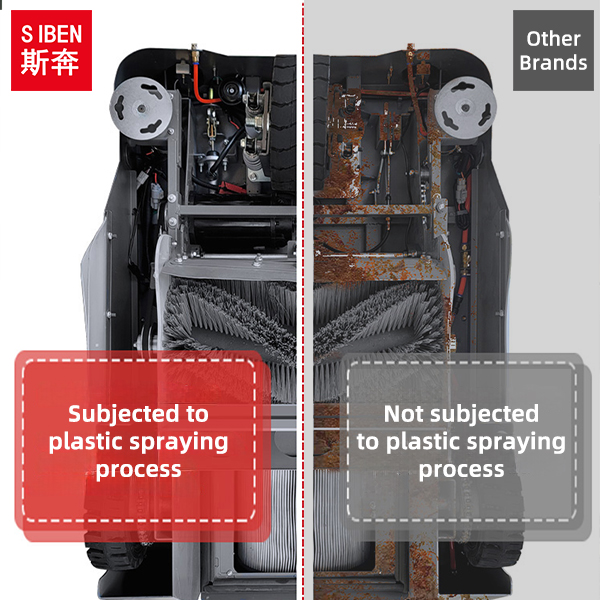

6.Chassis:
The chassis is made of welded steel structures with an anti-corrosion paint finish, ensuring it is resistant to deformation and rust.
|Application Scenarios
Factory | Workshop
Airport | Station
Warehouse | Logistics
Hospital | School
Office Building | Hotel
Shopping Mall | Campus
