|Specifications

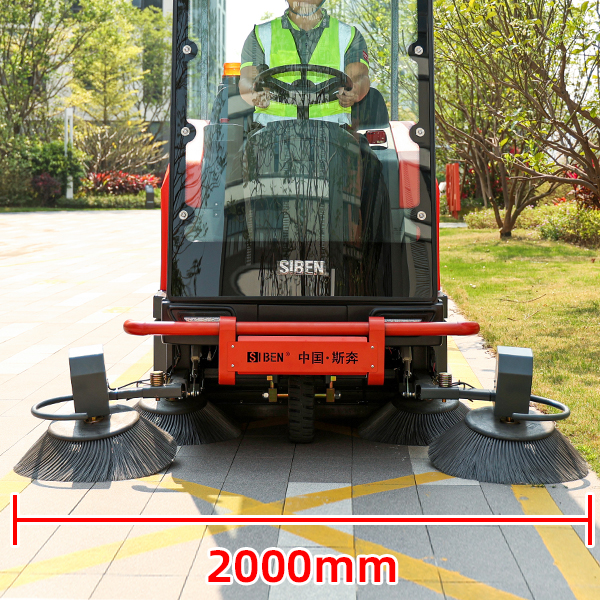

| Sweeping Width | 2000 mm | Working Speed | 1-7km/h |
| Side Brush Motor Power | 90 W x 4 | Gradeability | ≤ 25° |
| Working Voltage | 48 V | Working Noise | 60 dB(A) |
| Total Operating Power | 5400 W | Dust Collection Motor Power | 600 W*2 |
| Water Tank Capacity | 90 L | Main Brush Motor Power | 1200 W |
| Garbage Capacity | 220 L | Main Brush Width | 790 mm |
| Battery Life | 6-8 h | Side Brush Size | 300mm (front) 260 mm (rear) |
| Travel Motor Power | 2500 W | Maximum Working Speed | 6 km/h |
| Water Spraying Duration | 60 min | Turning Radius | 1500 mm |
| Battery Capacity | 6 x 150 AH | Machine Weight | 620 kg |
| Dust Collection Filter Area | 12 m² | Machine Dimensions (L x W x H) (mm) | 2400*2000*2030 |
| Filter Material | Drum-Type Dust Separator Filter |
|
|
|Key Highlights

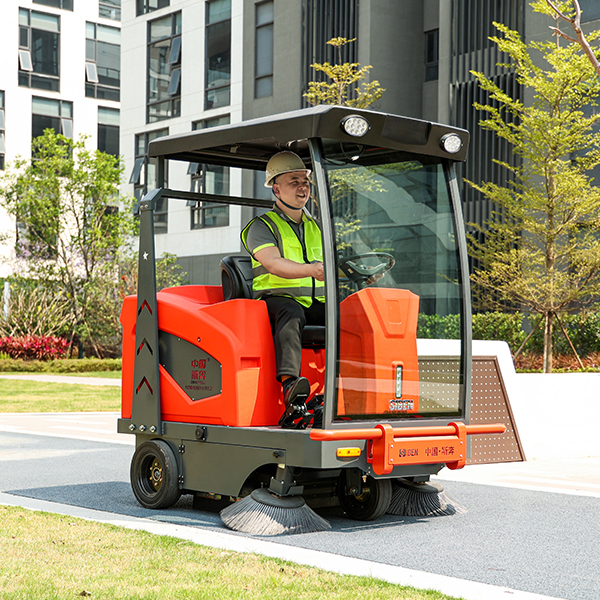

High-Endurance Power System: Driven by a battery power source with a 4*100AH/200AH capacity configuration. A full charge supports 6-8 hours of continuous operation, significantly improving cleaning efficiency and reducing labor costs.

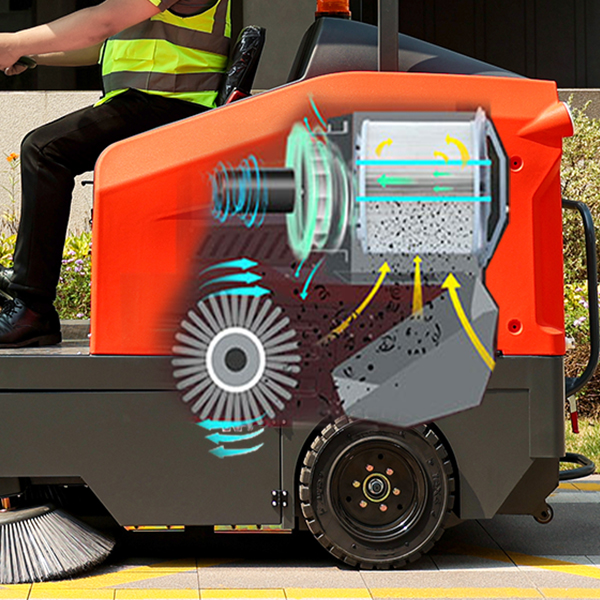

Rear-Throw Sweeping Technology: The chassis features a central nylon roller brush with counter-rotating "rear-throw" technology, using inertia to quickly flick debris into the hopper.
Dual Dust Suppression System:

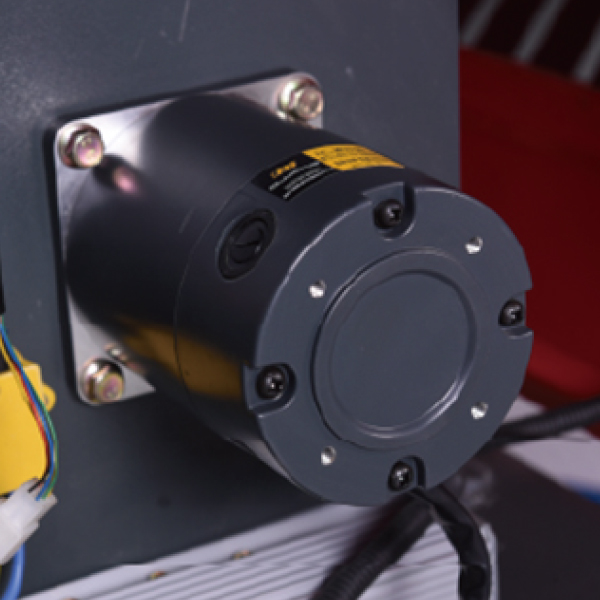

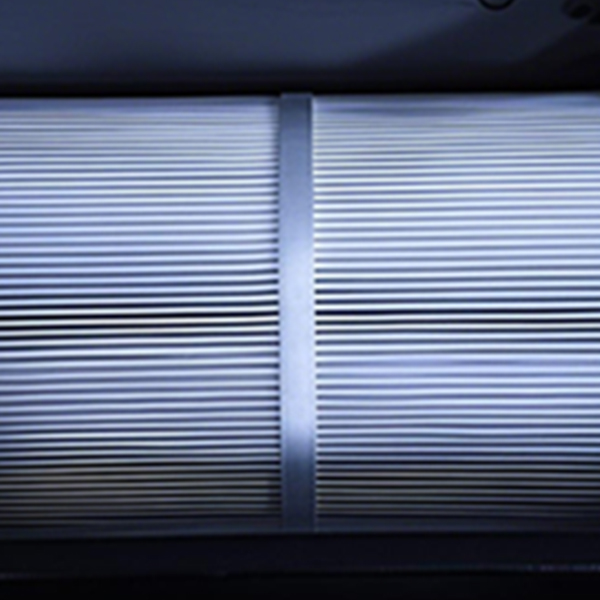

Suction & Filtration: Equipped with twin 600W vacuum fans and a 10㎡ non-woven drum filter with centrifugal iron blades. An integrated electric vibration device ensures effective filter cleaning.
Atomizing Mist System: Features a 90L built-in water tank and dual front-mounted atomizing nozzles to suppress airborne dust during operation and prevent secondary pollution.
Robust Drive & Climbing: Powered by a 2500W rear-mounted brushless drive motor with a dual-chain transmission. It offers ample torque and can handle inclines of <25°.
Large Waste Capacity: A 220L detachable hopper allows for quick loading and unloading, maximizing operational uptime.
|Functional Features

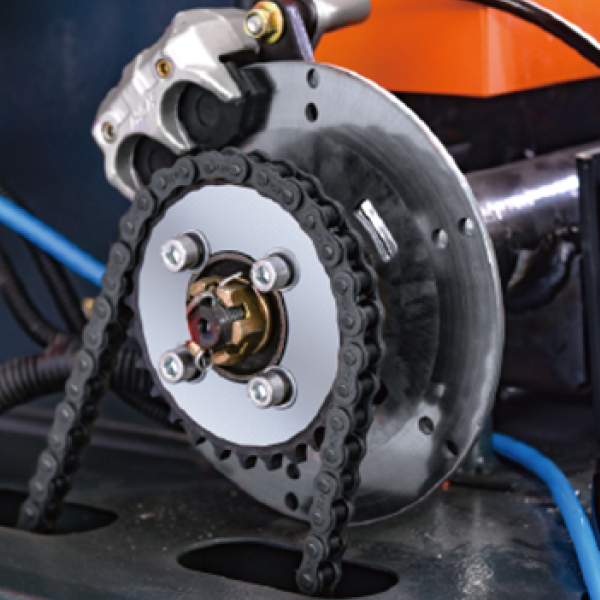

1. Braking System:
Equipped with a high-pressure disc brake assembly to ensure safety and stability when operating on slopes.
2. Solid Rubber Tires:
Features heavy-duty solid rubber tires, eliminating the risk of punctures or downtime and ensuring consistent performance.

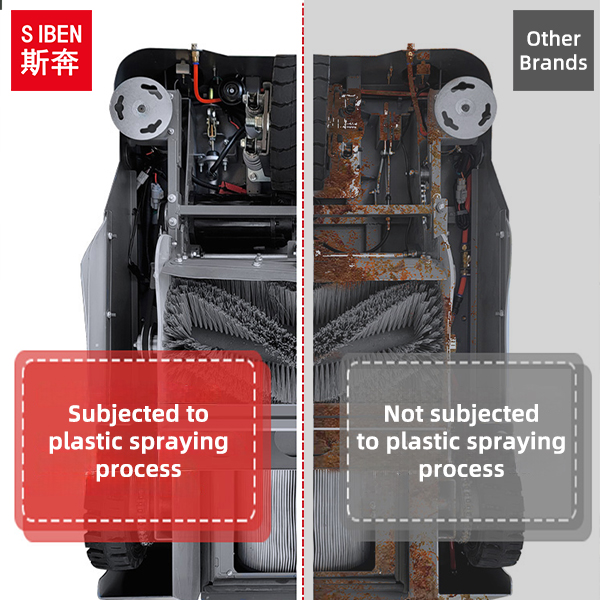

3. Structural Chassis:
The chassis is constructed from welded steel with a specialized anti-corrosion paint finish. It is designed to be rust-proof and deformation-resistant.
4. Shock Absorption:
The front wheel is equipped with spring suspension to enhance obstacle-crossing capability and reduce vibration, ensuring machine stability.
5. Durable Bodywork:
The body uses advanced rotomolded hollow construction, which is impact-resistant and optimizes internal space for the water tank.
