Welding, grinding and cutting generate fume and dust at the workstation, not across the whole shop. This guide sets out eight steps: survey each station, capture fume close to the arc, size airflow and ductwork, keep filters working, treat metal dust as an explosion risk, clean the settled layer from floors and ledges, run a daily check, and verify equipment at handover with nameplate data.
1. Survey the stations first
Welding, grinding and cutting do not produce the same thing. Welding fume is fine and rises with the hot air. Grinding dust and swarf are heavier and settle where they are made. Cutting produces a mix. One method for all three leaves money spent and dust still moving.
Log the basics: process type, number of stations, whether work is fixed, workpiece size and handling, shift length, and whether systems are shared. Whether a station is a dust explosion hazard area, and whether dry collection is allowed, is a safety judgement for a qualified body.
2. Choose a capture method
Five forms cover most shops:
Flexible arms for fixed stations and small parts
Fixed and side-draft hoods for stable, repetitive work
Overhead or push-pull hoods where arc height is consistent
Enclosures for large parts, crane handling and robotic welding
Mobile units where the station moves
Grinding needs one extra thought. Sparks and heavy swarf fly, so the hood should not face into the spark stream, and one duct should not carry different dust types. Judge capture by two things: is the generation point enveloped, and is fume still noticeable at the operator's breathing zone.
3. Size airflow and ductwork
"Fitted but not pulling" is rarely a fan problem. Check hood distance to the generation point, hood shape against the airflow direction, branch and main routing where long flat runs collect dust, and fan placement. Putting the fan after the filter keeps the ductwork under negative pressure and limits leakage.
4. Keep filters working
Verifiable items include filtration rating, filter area, media type, cleaning method and the discharge arrangement. Cleaning decides filter life and airflow. Weak pulse pressure or blocked nozzles build a dust cake no fan can pull through.
Do not rely on a calendar alone. Watch three signals: airflow falling, pressure rising, and visible dust carry-over. Media grade and temperature rating must match the fume and dust in the process; selection is for the supplier and a specialist on site.
5. Treat metal dust as an explosion risk
Dust from grinding, polishing and cutting aluminium, magnesium and their alloys is among the higher-risk combustible dusts. A reported major aluminium dust explosion began with a discharge inside the grinding duct that ignited accumulated dust; deflagration spread into the collector and along branch ducts to grinding machines, causing multiple explosions across the shop.
Two lessons follow. Dust lying inside ducts is fuel, so a cleaning regime that is not carried out widens the risk. Layout matters too: interconnected ducts carry an ignition from one place to many. Collection method, wet versus dry, explosion venting, inerting and suppression, electrical rating and the cleaning regime are specialist safety decisions under current standards and the authority's view.
6. Clean the settled layer

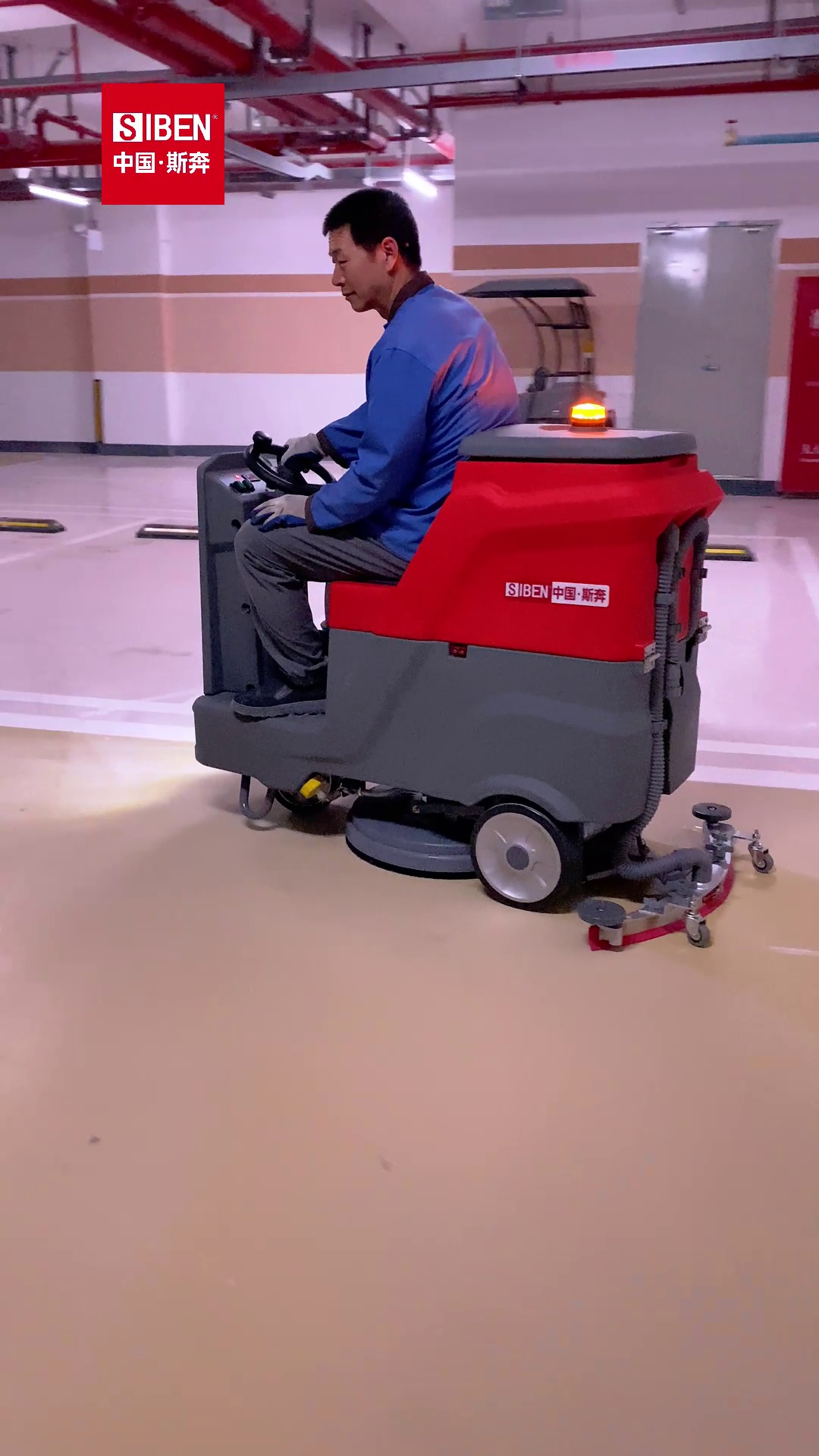

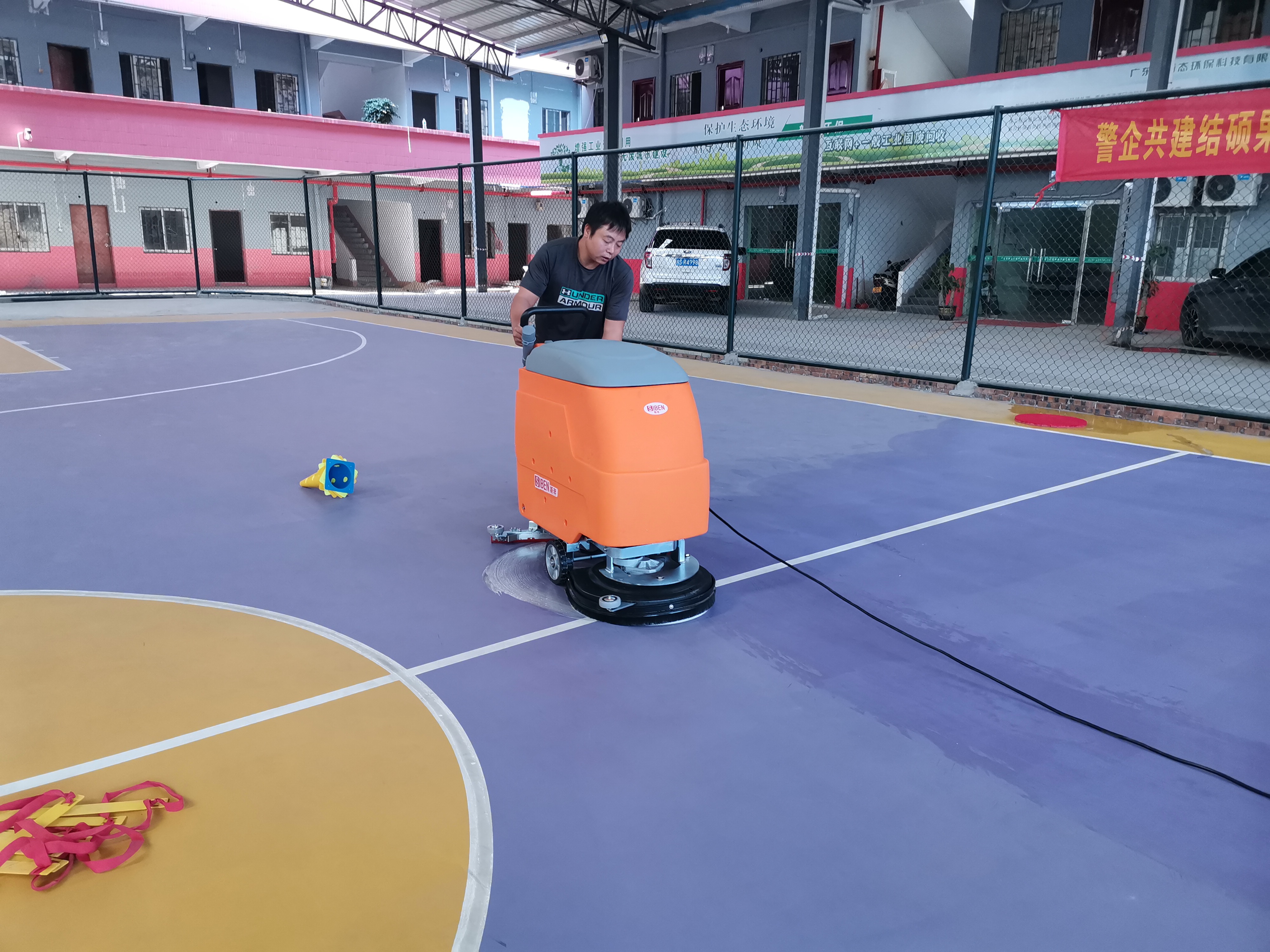

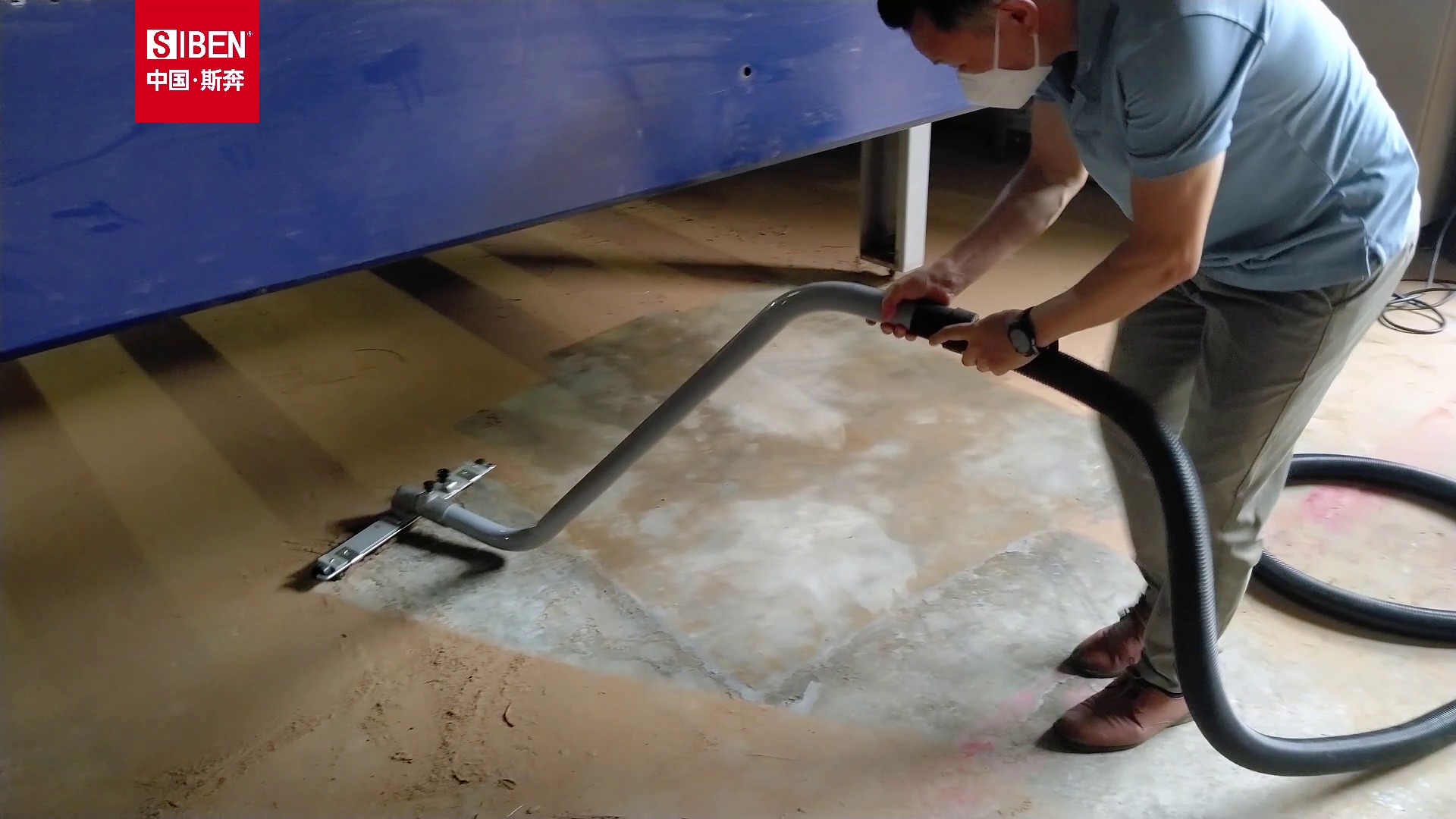

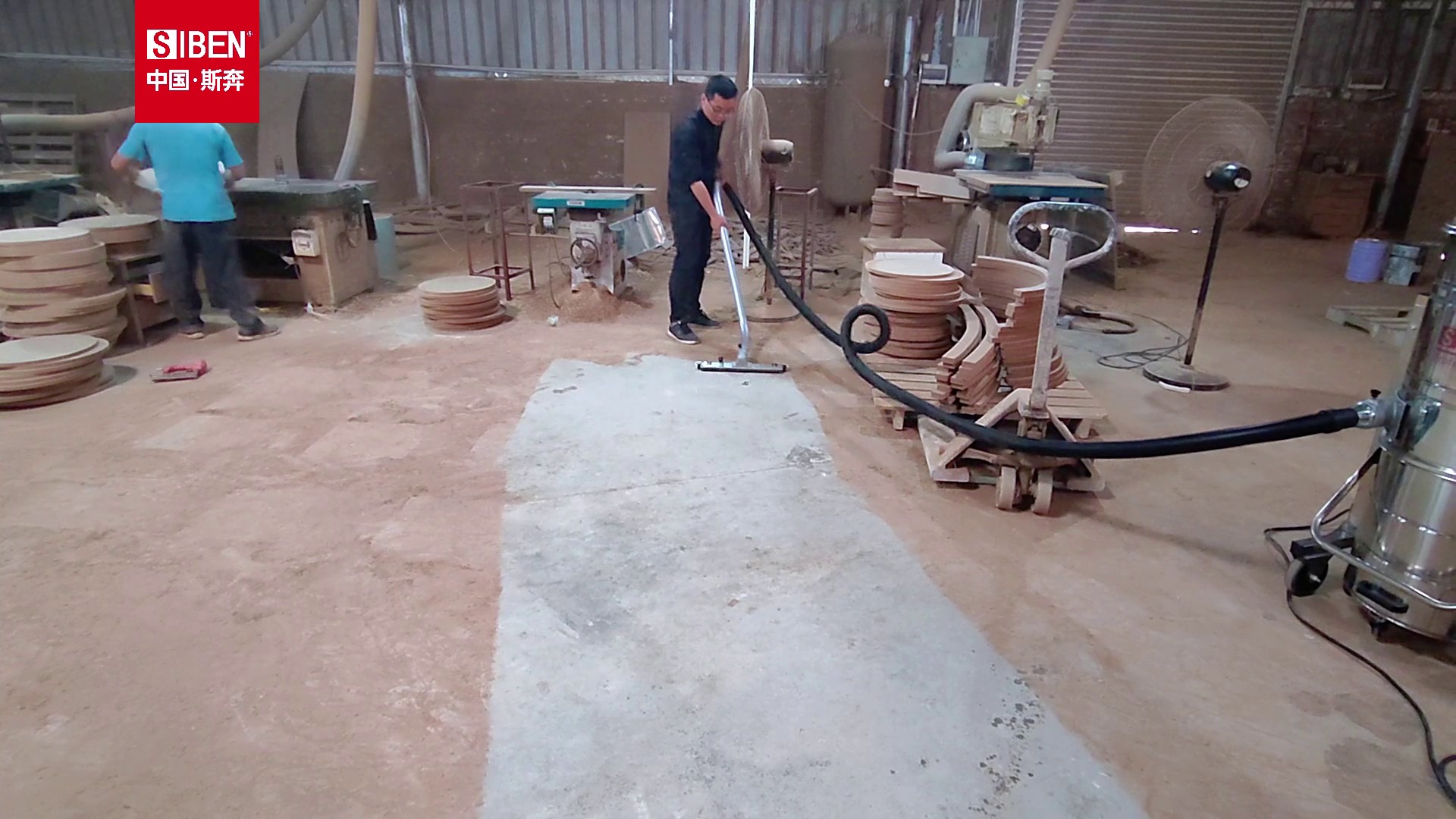

Cleaning is part of dust control. After the shift, dust settles on benches, machine skins, base plates, duct tops and beams; vibration and airflow lift it again. Work dry before wet. Vacuum swarf and dry dust with a filtered industrial vacuum first. Do not blow it down with compressed air—that only moves dust into the air. Then scrub floors, recover the water, and reach gaps and corners with a hose tool.
Zone the tools. Nozzles, brushes and squeegees that have met metal dust should not enter clean or finished-goods areas. Clean the water and recovery tanks separately, and empty the hopper before it is full. In combustible metal dust areas, whether equipment and methods suit the site is a specialist judgement.
7. Run a daily check
Management lives in the shift, not the annual audit.
| Timing | Checks |
|---|---|
| Before shift | Fan running, hood position, suction by hand, filter pressure indicator, hopper and drawer |
| During shift | Any drift of the generation point, visible fume escape, unusual duct noise |
| After shift | Clear settled dust, empty material, log the record |
Keep the log short—date, area or station, person, issue found, action taken. A separate sheet tracks filters, nozzles, hoses and brushes with dates and reasons. A log nobody will fill in is no log at all.
8. Buy and verify as a set
Treat cleaning and extraction equipment as planned fit-out, not an afterthought. State the target—welding fume, grinding dust, swarf or floor soil—plus use case and frequency in the requirement document.
Use three gates: factory, arrival, commissioning. Verify rated power, voltage, airflow, vacuum, filtration rating, filter area, bin or hopper volume, fitting size, cleaning width, squeegee width, tank volume, runtime and noise—all checkable against the nameplate or a site test. Productivity, labour replacement, removal efficiency and payback depend on assumptions and do not belong in acceptance criteria. Hand over consumables with recommended intervals.
Frequently Asked Questions
Treat them separately: fume rises, grinding dust settles, and shared ducts add explosion risk.
Check that the generation point is enveloped, hood distance and direction suit airflow, and ducts do not collect dust.
Usually hood distance, hood direction against hot air, long flat ducts, or poor filter cleaning—not fan power.
Watch airflow falling, pressure rising and dust carry-over, and clean to schedule; a calendar alone is not enough.
It is a higher-risk combustible dust; collection method, explosion protection and electrical ratings need a specialist judgement.
Accumulated dust is fuel; a reported aluminium dust explosion spread along branch ducts after igniting inside them.
No—it moves dust into the air. Vacuum dry material first, then wet-clean floors and recover the water.
A filtered industrial vacuum for swarf and dry dust, a scrubber for floors, and hose or high-pressure water for corners.
Stating the target, use case and frequency upfront avoids scattered purchases later and fixes the acceptance terms.
Three gates—factory, arrival, commissioning—verifying nameplate data and measured performance, with consumables handed over.
