Walk-Behind
| Availability: | |
|---|---|
| Quantity: | |
|Specifications
| Working Voltage | DC 24V | Overall Machine Dimensions (L x W x H) (mm) | 1300 x 860 x 1060 |
Battry Life | 3-4 h | Battery Capacity | Maintenance-Free Lead-Acid 100 AH |
| Cleaning Efficiency | 2500 m²/h | Squeegee Weight | 6.7 kg |
| Clean Water Tank Capacity | 50 L | Dirty Water Tank Capacity | 55 L |

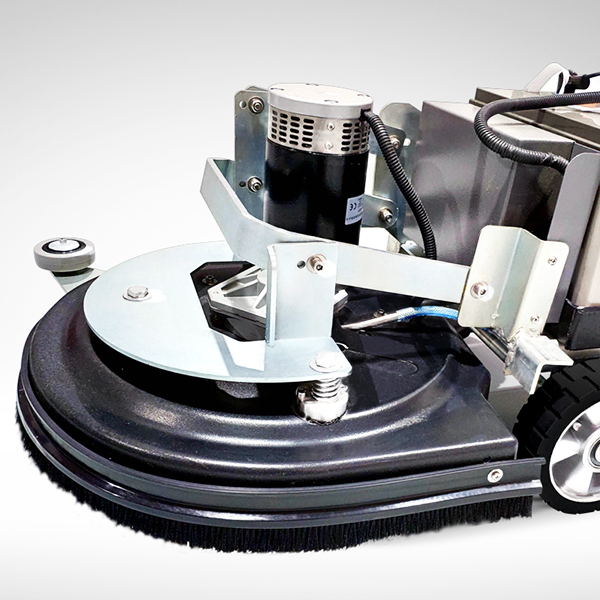

| Cleaning Width | 510 mm | Water Suction Width | 860 mm |
| Cleaning Speed | 0-5 km/h | Operating Noise | 60 dB(A) |
| Water Suction Motor Power | 500 W | Brush Contact Pressure | 20 kg |

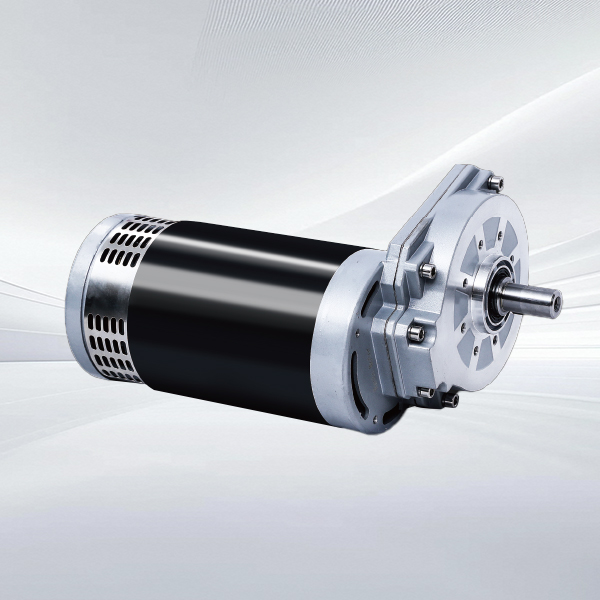

| Disc Brush Motor Power | 550 W | Drive Motor Power | 1050 W |
| Disc Brush Speed | 200 rpm/min | Water Level Protection Device | Float Ball |
| Water Volume Adjustment | Mechanical | Machine Weight | 135 kg |
|Key Highlights
Powerful Cleaning for Industrial Floors: With a brush pressure of up to 25kg and a 15° angled brush design, the machine effortlessly tackles heavy industrial grease and grime. This unique angle utilizes inertia, significantly reducing the physical effort required by the operator.

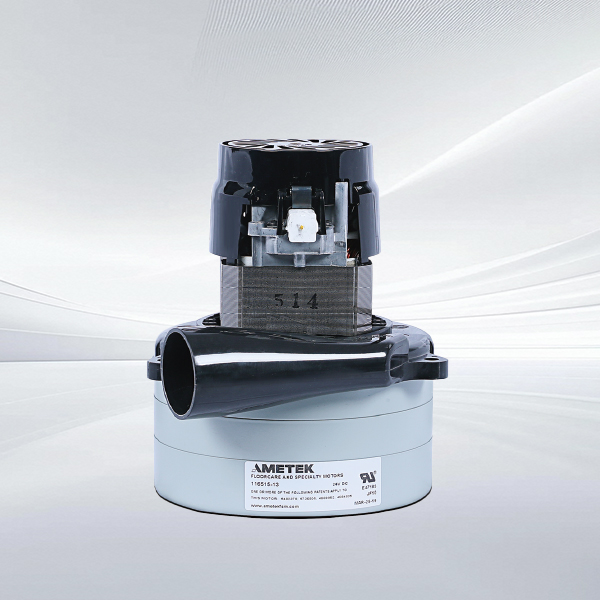

Enhanced Power and Energy Efficiency: Equipped with an imported AMETEK water suction motor, it delivers 20% higher suction power compared to previous models while reducing electricity consumption by nearly 10%.
Exceptional Durability and Corrosion Resistance: The body is rotationally molded from imported high-density polyethylene engineering plastic, ensuring extreme resistance to acid and alkali corrosion. Coupled with a heavy-duty stainless steel squeegee assembly, it is built to withstand harsh industrial environments.

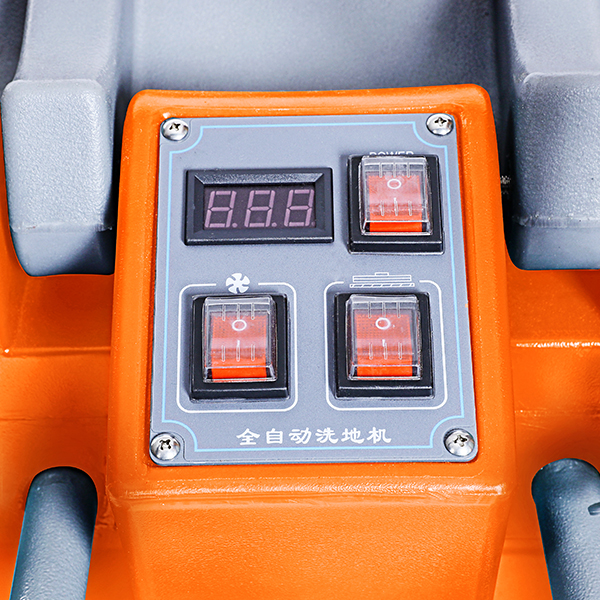

Intuitive Operation: The control panel features a user-friendly layout with independent switches and clearly segmented functional zones, allowing operators to become proficient after just a single training session.
Smart System (Optional): Supports an optional integrated LCD control panel and smart IoT system, enabling real-time equipment monitoring, intelligent recognition, and professional fleet management.
|Functional Features

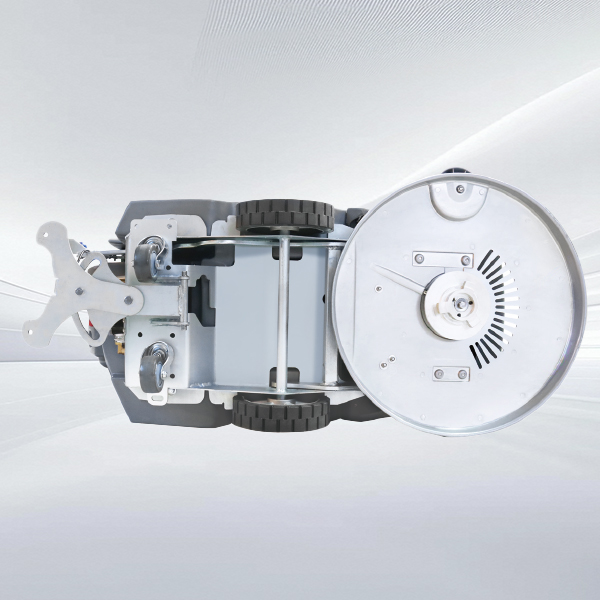

1. Rugged Chassis Structure
Features a compact yet lightweight frame, providing a sturdy and durable foundation for intensive industrial use.Long-2. Lasting Runtime

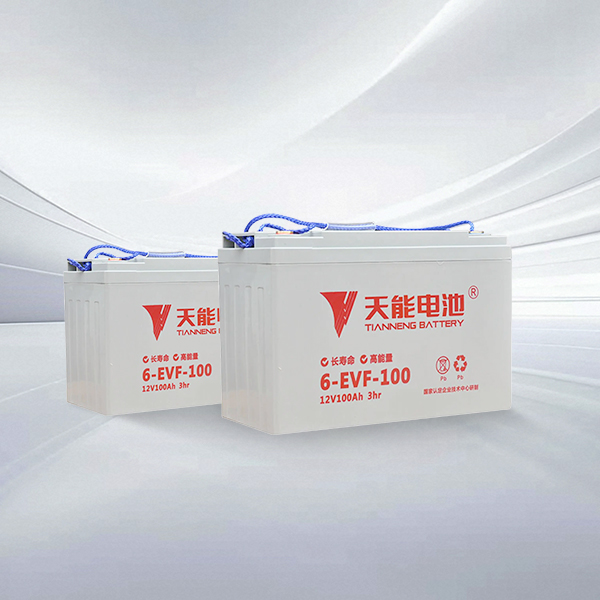

Standardly equipped with two 100Ah TianNeng maintenance-free lead-acid batteries, delivering approximately 3 hours of continuous operation on a full charge.
3. Intelligent Motor Protection
Includes an automatic float ball protection device that activates when the wastewater level reaches the protection line, effectively preventing water from entering the motor and ensuring its longevity.

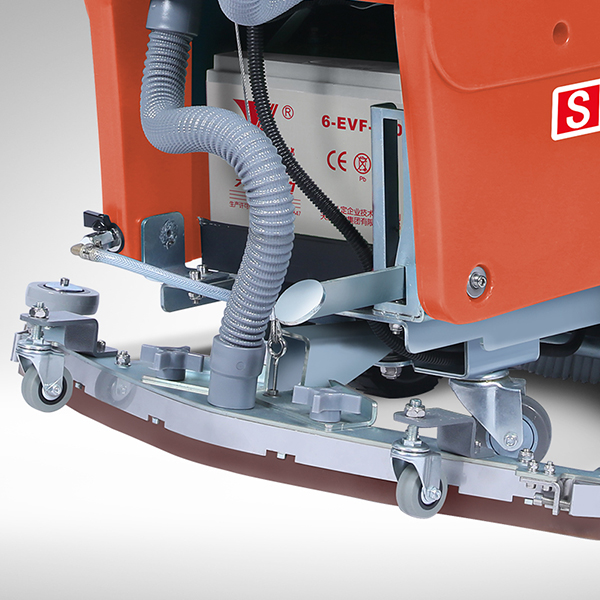

4. Heavy-Duty Squeegee System
The upgraded squeegee is integrally formed from durable stainless steel, offering superior resistance to rust and wear.
|Application Scenarios
Hospital | School
Office Building | Hotel
Shopping Mall | Campus
