Cleaning Efficiency: 7,850 m²/h
Brush Contact Pressure: 50-70 kg
Battery Life: 4-6 h
Factory | Workshop, Airport | Station, Construction | Real Estate, Hostipal | School, Shopping Mall | Campus, Warehouse | Logistics

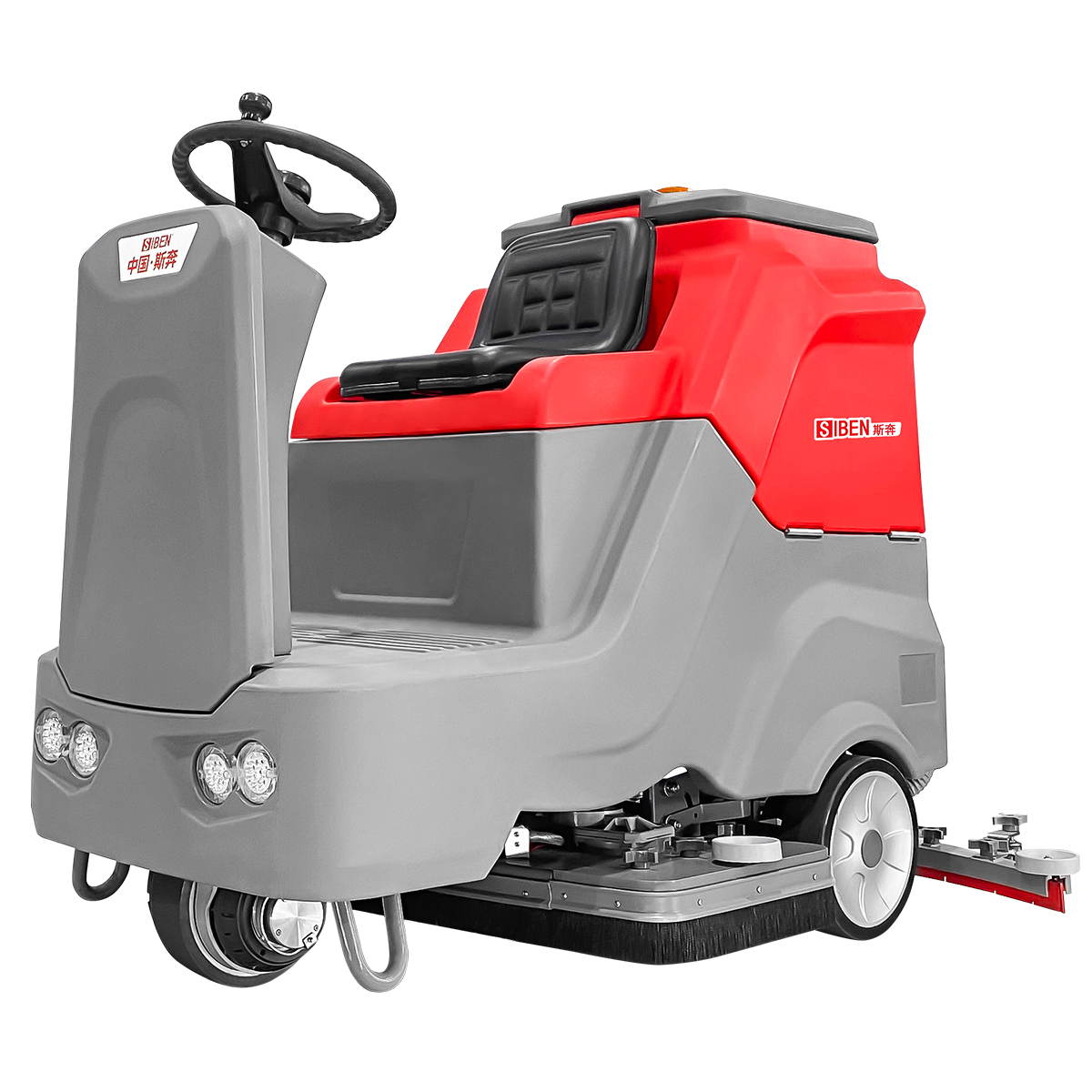

Ride-On
| Availability: | |
|---|---|
| Quantity: | |
|Specifications
| Working Voltage | DC 24V / 36 V | Overall Machine Dimensions (L x W x H) (mm) | 1680 x 1200 x 1380 |

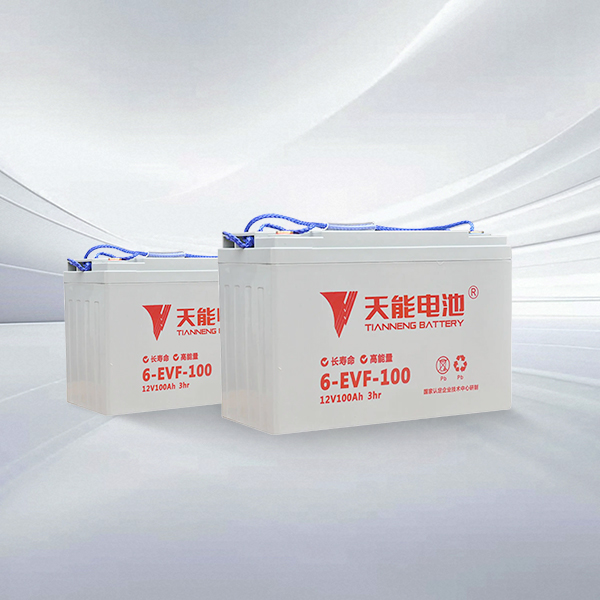

Battry Life | 4-6 h | Battery Capacity | Maintenance-Free Lead-Acid 200 AH |
| Cleaning Efficiency | 7850 m²/h | Packaging Dimensions (L x W x H) (mm) | 1850 x 1150 x 1650 |
| Clean Water Tank Capacity | 195 L | Dirty Water Tank Capacity | 205 L |

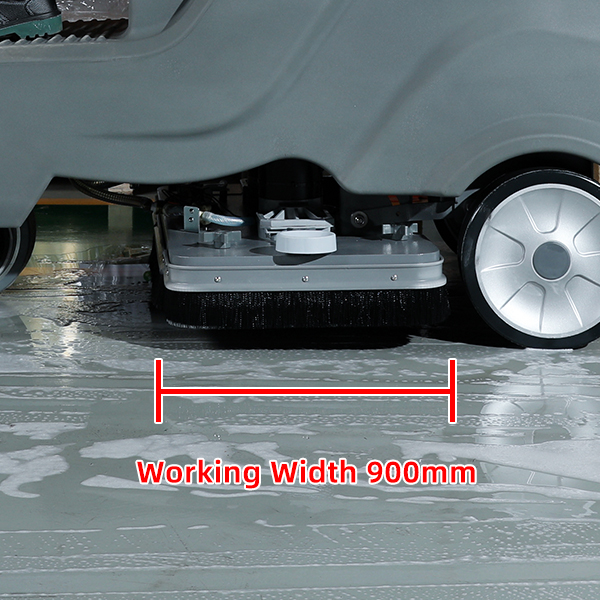

| Cleaning Width | 900 mm ( Standard Version ) 960 mm ( High-End Version ) | Water Suction Width | 1200 mm |
| Cleaning Speed | 0-7 km/h | Operating Noise | 68 dB(A) |

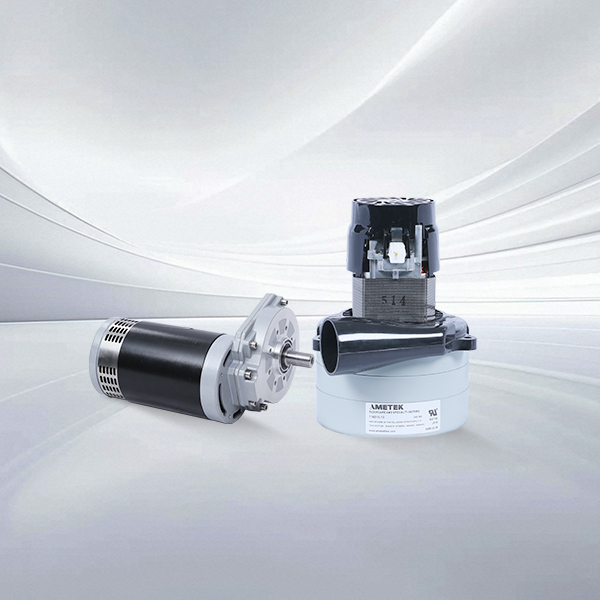

| Water Suction Motor Power | 600 W | Brush Contact Pressure | 50-70 kg |
| Disc Brush Motor Power | 550 W x 2 | Drive Motor Power | 680 W |
| Disc Brush Speed | 230 rpm/min | Climbing Gradient | 0-15° |
| Machine Weight | 385 kg ( Standard Version ) 475 kg ( High-End Version ) | Squeegee Lift | Electric |
| Disc Brush Lift | Electric | Motor Overload Protection | Available |
|Key Highlights
All-in-One Cleaning & Efficient Maintenance: Integrates sweeping, washing, and drying functions, and is equipped with a 50L detachable large-capacity waste bin that is extremely convenient to install and rinse.
Durable Industrial-Grade Body: The entire machine is made of imported LLDPE/EUP engineering plastics through rotational molding, making it resistant to acids, alkalis, and corrosion, and easy to maintain.
Intelligent Management System: Users can opt for a liquid crystal integrated control panel and a smart IoT system to achieve real-time monitoring, intelligent perception, recognition, and management functions.
Eco-Friendly Operation: Equipped with an automatic mist discharge and water sprinkling device to effectively reduce secondary dust resuspension, creating a green and efficient cleaning experience.
Superior Cleaning Pressure Control: Features an intelligent electric control lifting system that automatically maintains constant cleaning pressure for the brush and squeegee, ensuring uniform and stable results
|Functional Features
1. Power & Control System

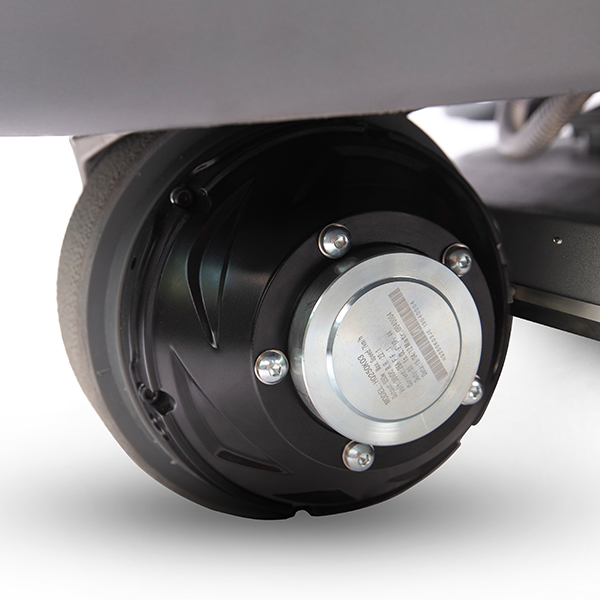

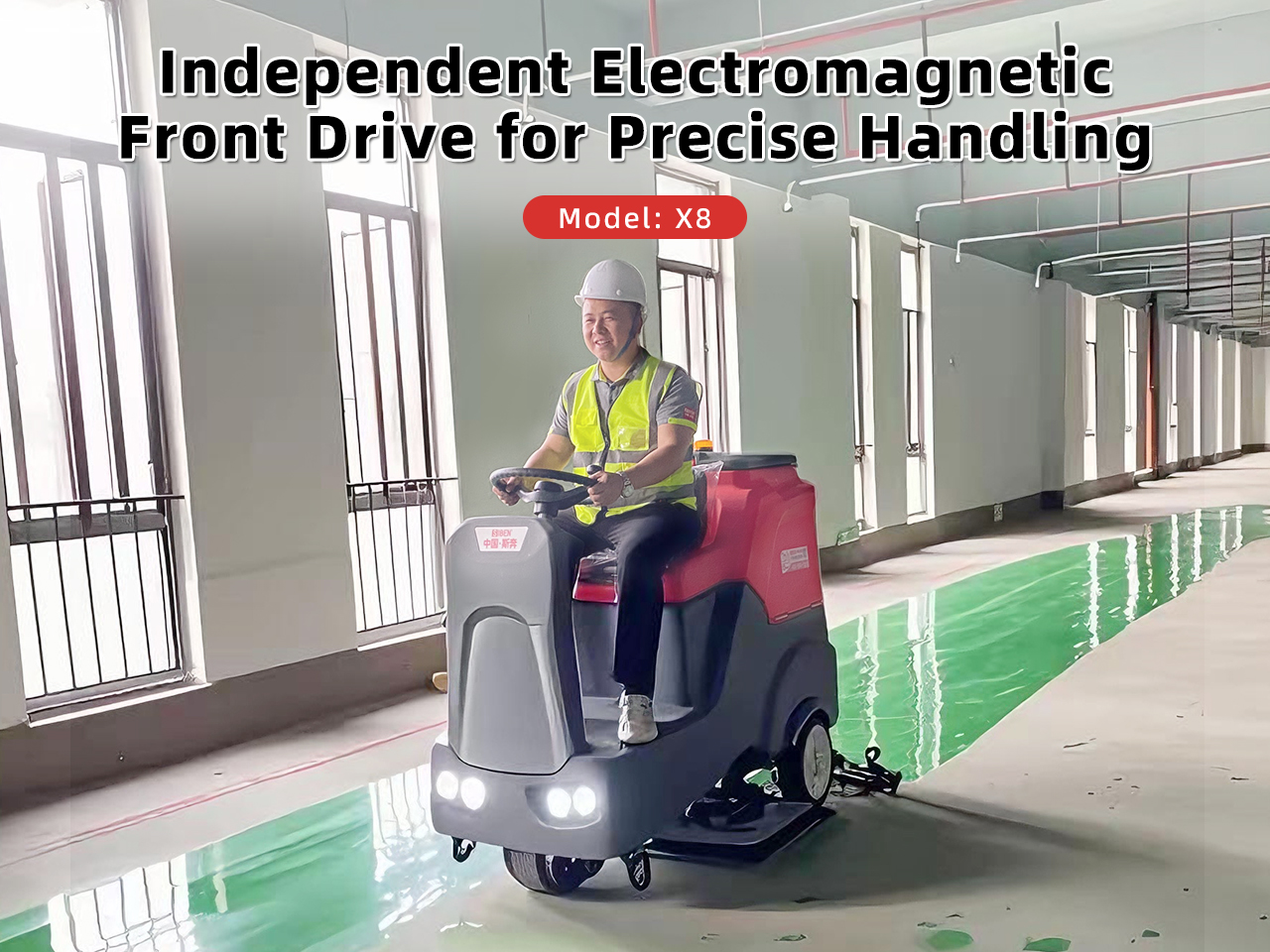

High-Intensity Drive Motor: Equipped with an independent front-drive motor that achieves excellent kinetic performance through high-torque output, suitable for high-intensity cleaning scenarios.
Driving Comfort & Smoothness: The drive motor features a soft start for smoother, more comfortable, and safer driving.
Efficient Water Management: The water suction system has a delayed shutdown to effectively reduce residual wastewater on the ground.

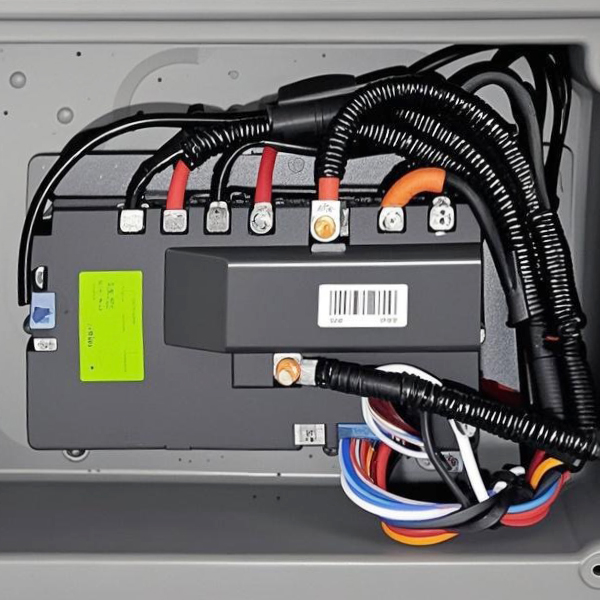

Integrated Control: The integrated control system improves the operational stability of all core components and reduces the rate of electrical circuit failures.
Wastewater Tank Safety: Includes a level alarm and automatic shutdown function; when wastewater reaches the protection line, the machine shuts down to protect the suction motor.
Smart Reversing Protection: The system automatically lifts the squeegee when reversing to prevent collisions and protect the machine.

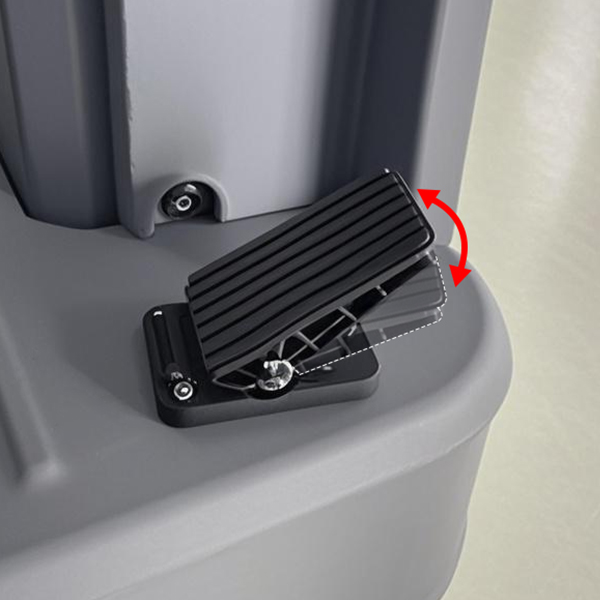

Electromagnetic Assisted Braking: The machine brakes automatically when the drive pedal is released and enters a parking state when stationary.
Anti-Tip Stability: Designed with two front wheels and a front anti-tilt bar to enhance stability during high-speed turns and reduce the risk of tipping.
All-Weather Operational Lighting: Equipped with front LED lights and rear warning lights for safe operation in night-time or low-light conditions.
4. Optimized Hardware Details
Professional Suction Components: The integrally formed stainless-steel squeegee is rust-proof and corrosion-resistant, ensuring no water residue remains after suction.

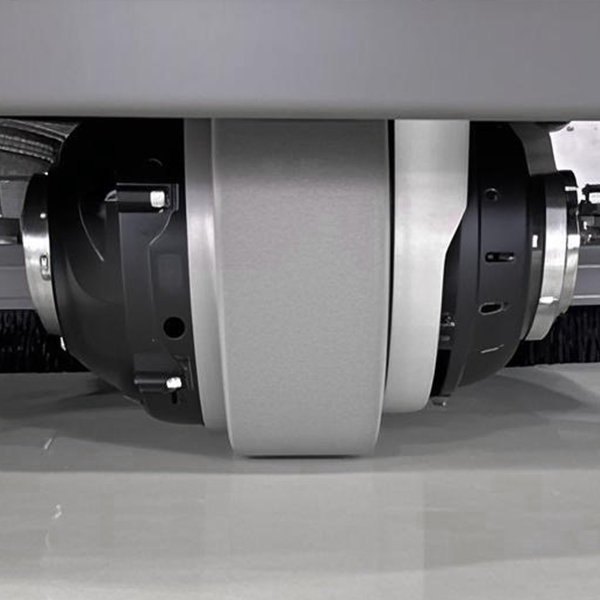

High-Performance Tires: The front wheels use imported PU solid anti-slip tires for superior wear resistance.

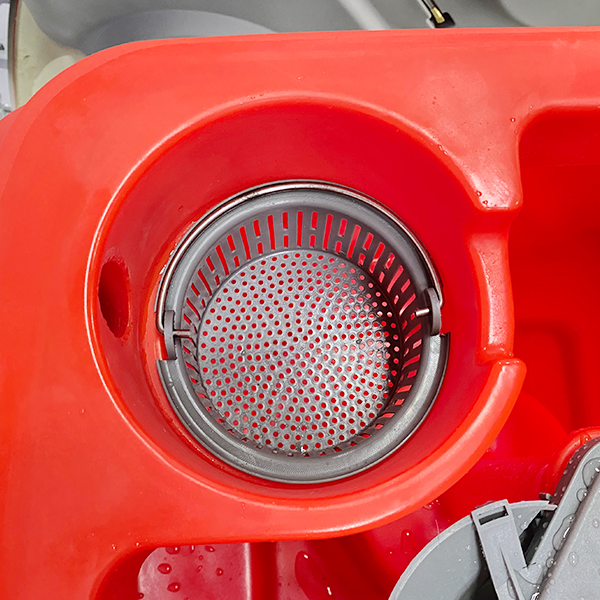

Anti-Clogging Filtration: A garbage filter basket in the wastewater tank effectively reduces blockages at the discharge port.
Comprehensive Cleaning Attachments: Standard-equipped with a high-pressure water gun and a portable vehicle-mounted handheld vacuum device to easily clean dirt in corners and edges.
|Application Scenarios

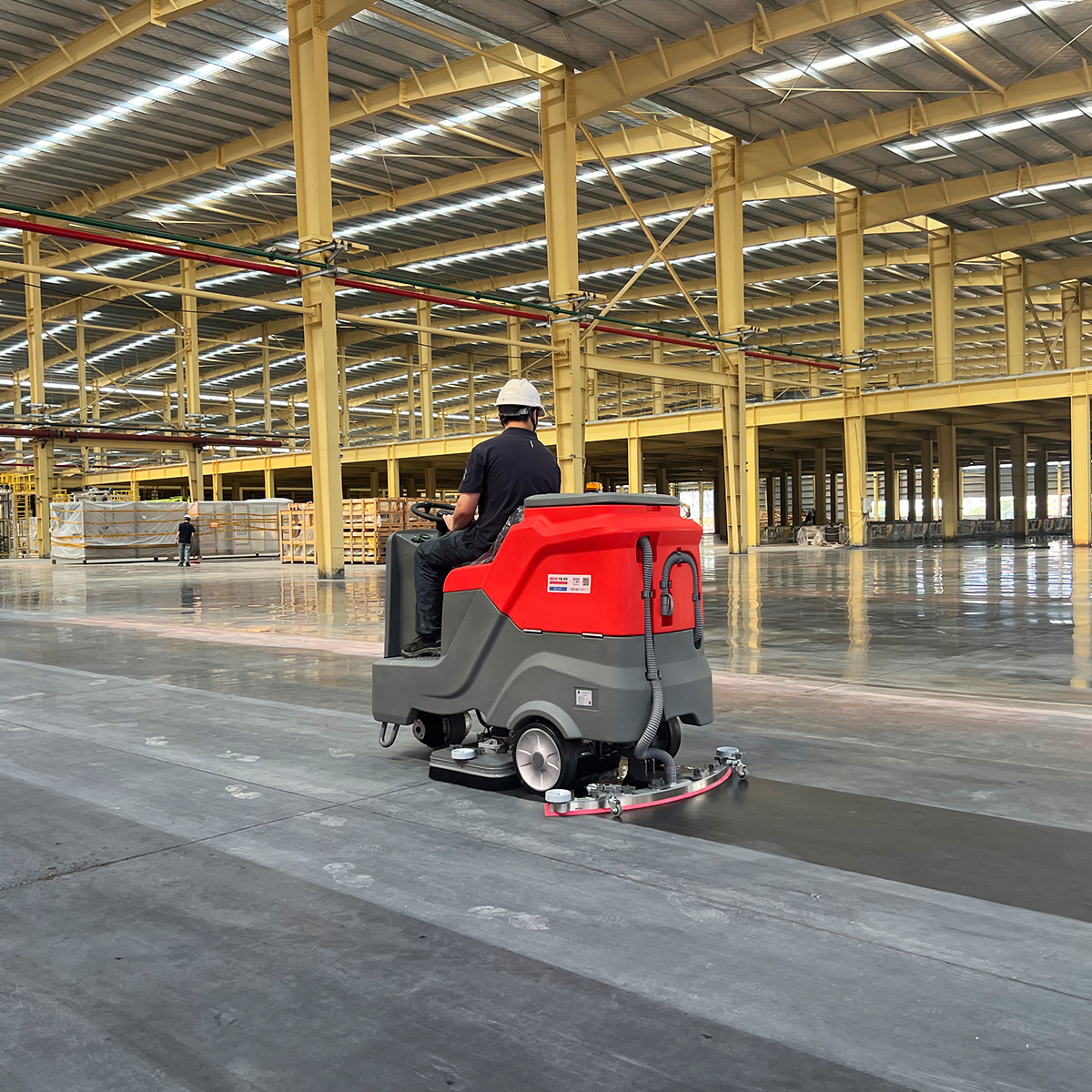

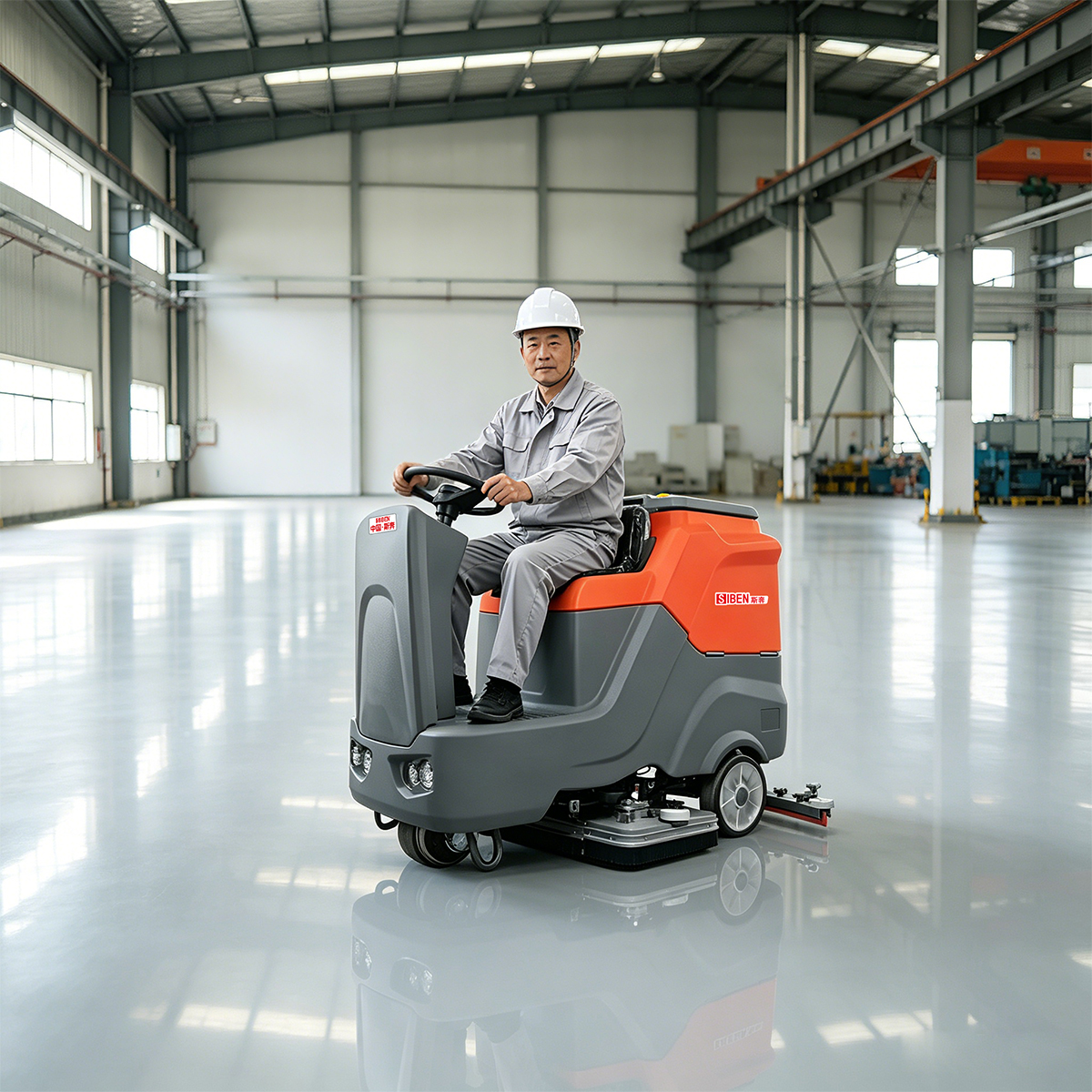

Factory | Workshop
Airport | Station
Warehouse | Logistics
Hospital | School

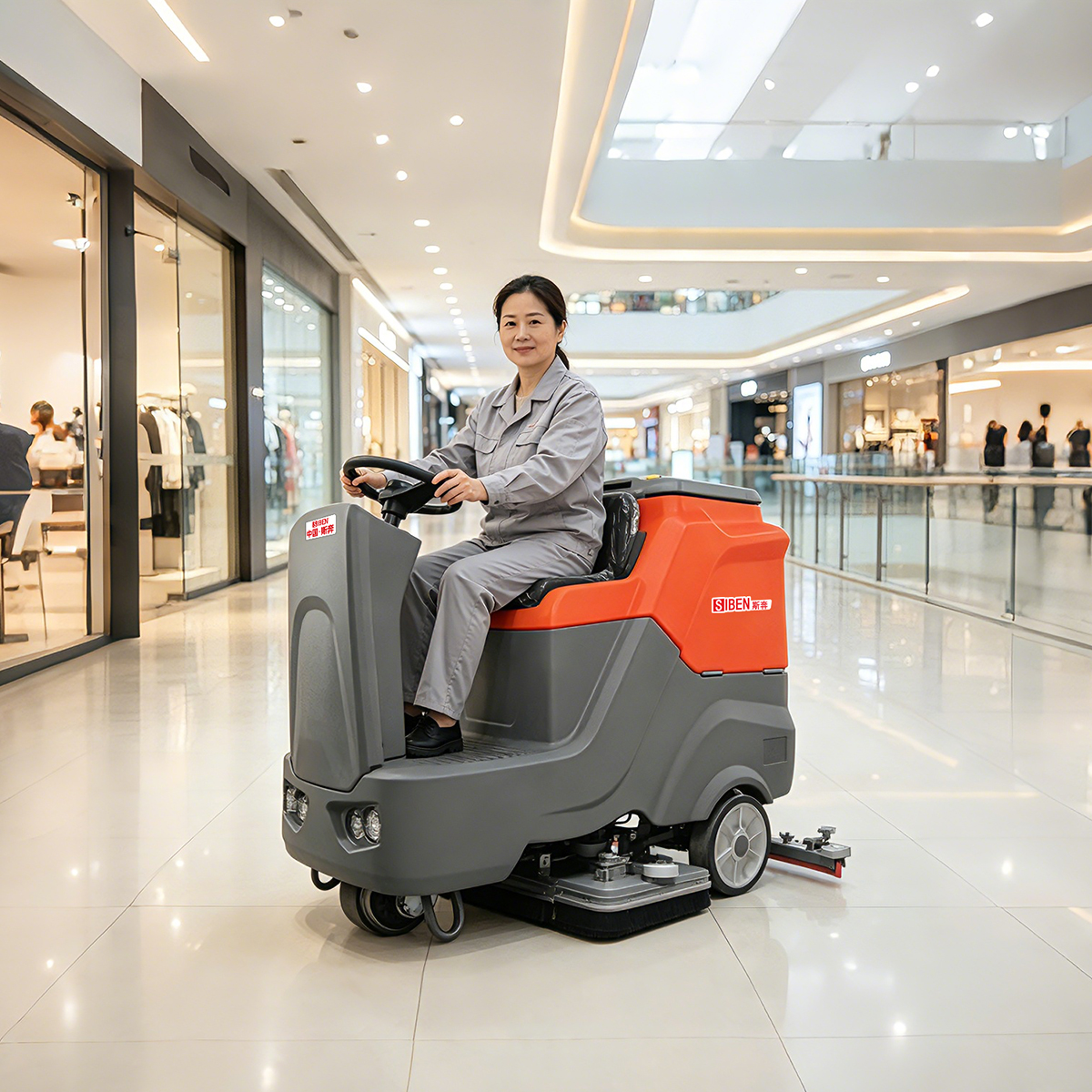

Shopping Mall | Campus
