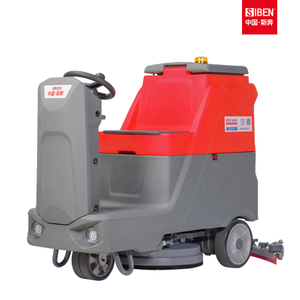

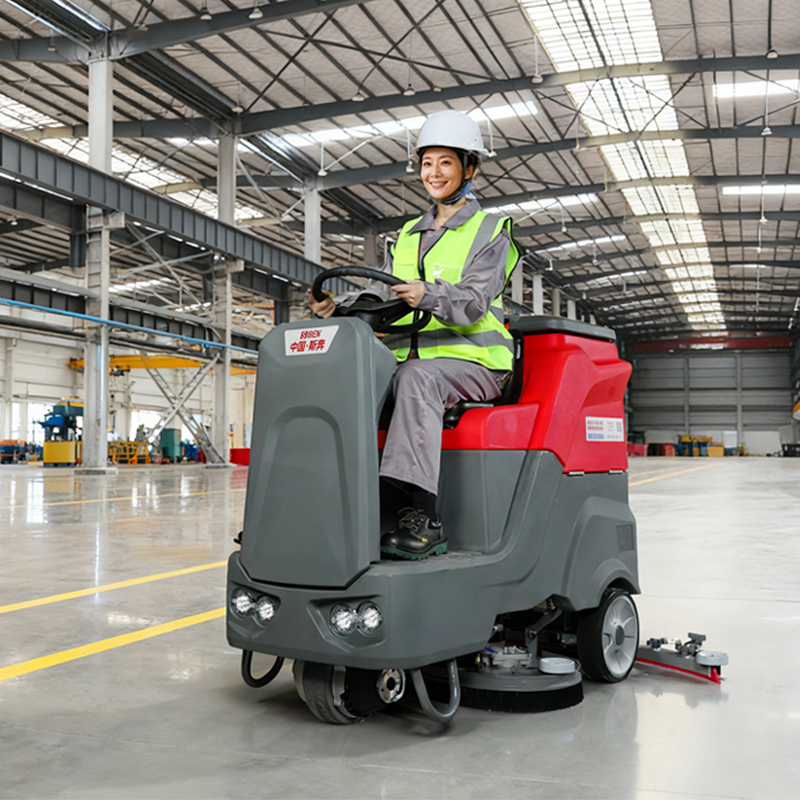

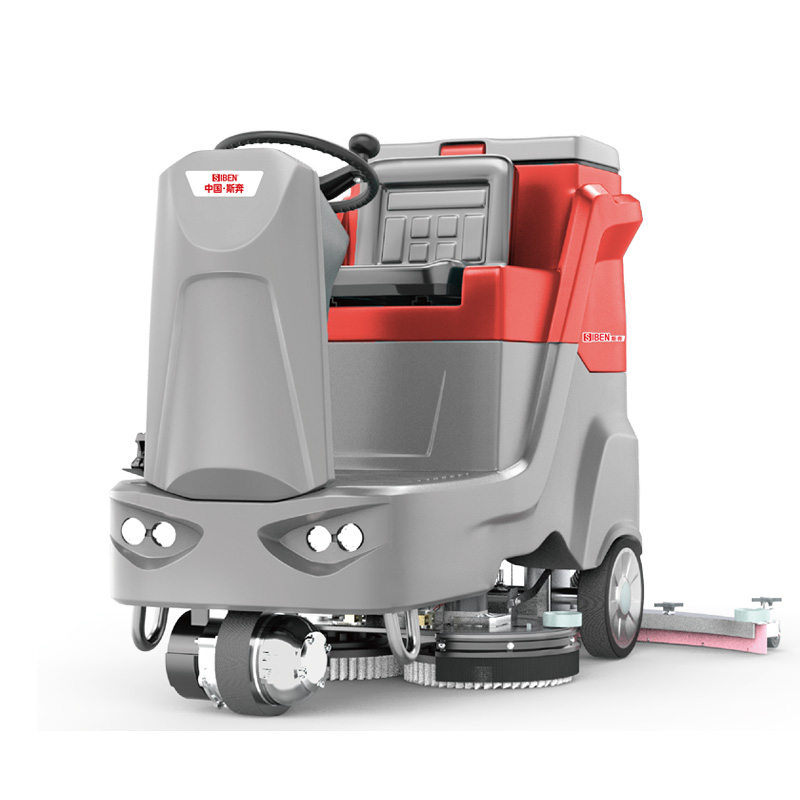

Ride-On
| Availability: | |
|---|---|
| Quantity: | |

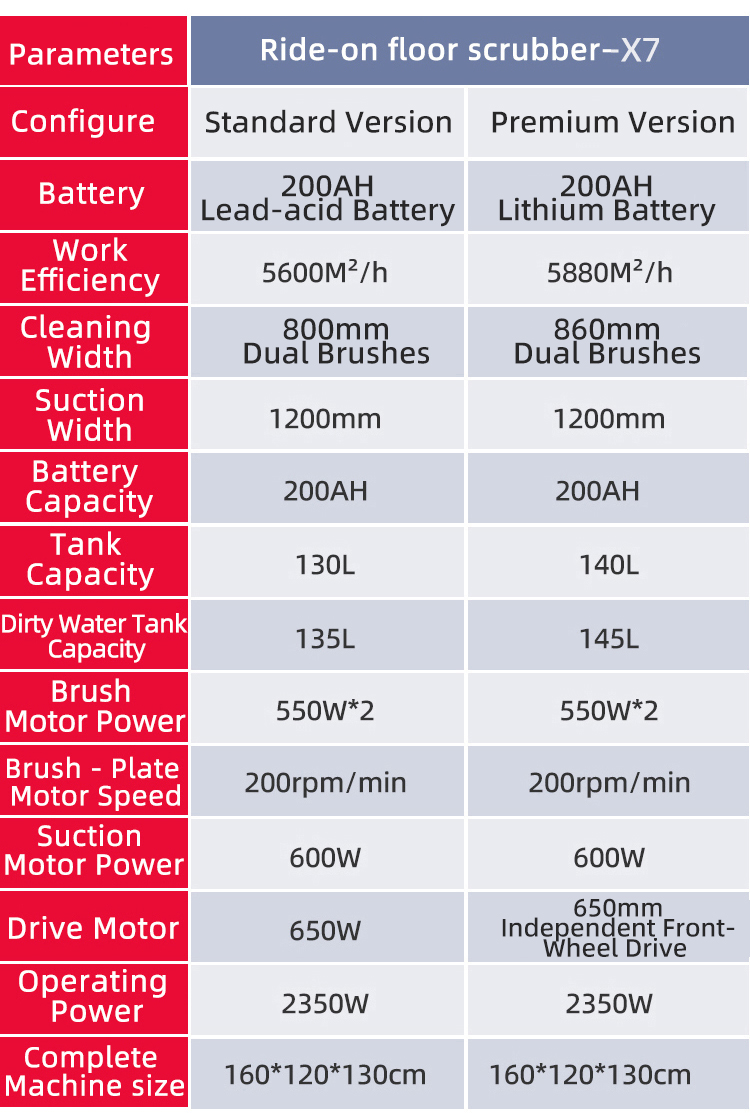

|Specifications

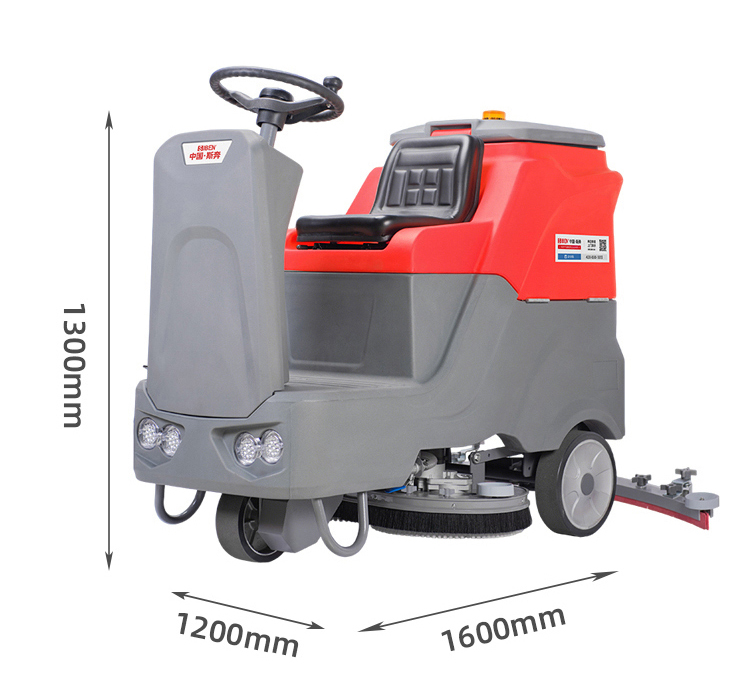

| Working Voltage | DC 24V | Overall Machine Dimensions (L x W x H) (mm) | 1600 x 1200 x 1300 |

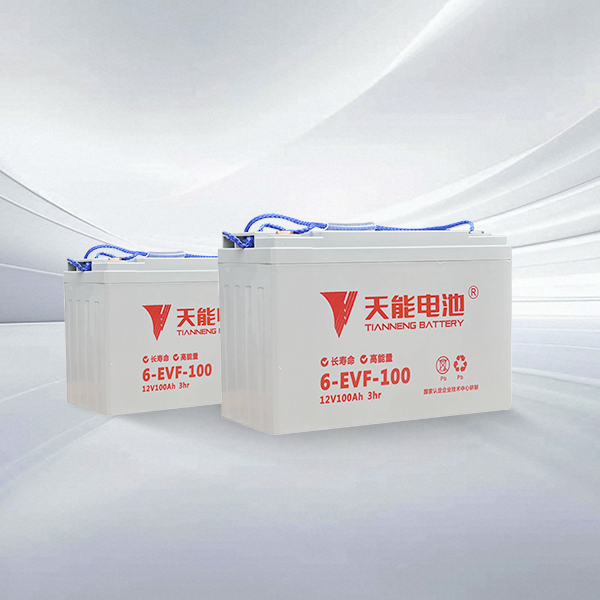

Battry Life | 3-4 h | Battery Capacity | Maintenance-Free Lead-Acid 24 V / DC-200 AH |
| Cleaning Efficiency | 5600 m²/h | Packaging Dimensions (L x W x H) (mm) | 1750 x 950 x 1630 |
| Clean Water Tank Capacity | 135 L | Dirty Water Tank Capacity | 140 L |
| Cleaning Width | 800 mm ( Standard Version ) 860 mm ( High-End Version ) | Water Suction Width | 1200 mm |
| Cleaning Speed | 0-7 km/h | Operating Noise | 69 dB(A) |

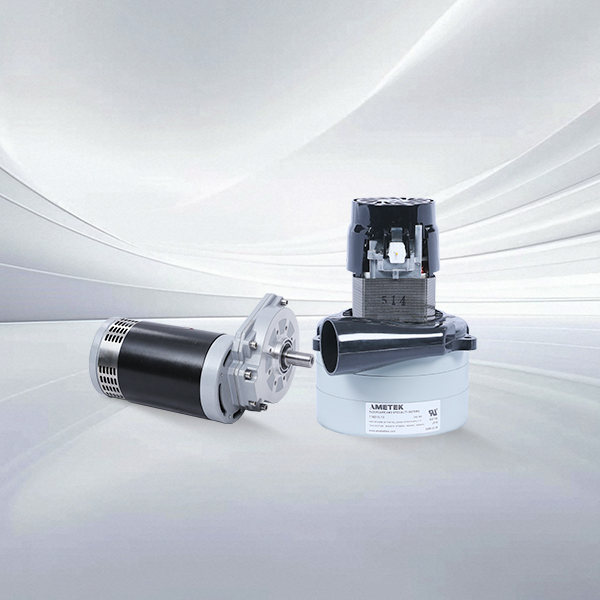

| Water Suction Motor Power | 600 W | Brush Contact Pressure | 40-60 kg |
| Disc Brush Motor Power | 550 W x 2 | Drive Motor Power | 2300 W ( Standard Version ) 2350W ( High-End Version ) |
| Disc Brush Speed | 230 rpm/min | Climbing Gradient | 0-15° |
| Water Volume Adjustment | Mechanical | Obstacle-Crossing Ability | |
| Machine Weight | 340 kg | Squeegee Lift | Electric |
| Disc Brush Lift | Electric | Motor Overload Protection | Available |
| Motor Overload Protection | Available | Squeegee Weight | 5 kg |
|Key Highlights
Durable Body Design: Made of imported LLDPE/EUP engineering plastics with integrated rotational molding; it is acid, alkali, and corrosion-resistant, making the body easy to maintain.
All-in-One Cleaning Solution: Integrates sweeping, washing, and drying in one go, equipped with a 50L detachable large-capacity waste bin that is extremely convenient to install and rinse.
Smart Control & Monitoring: Optional LCD integrated control panel and Smart IoT system allow for real-time monitoring and intelligent management functions.
Dust Suppression & Efficiency: Equipped with an automatic mist discharge and water sprinkling device to effectively reduce secondary dust resuspension, ensuring a green and efficient cleaning experience.

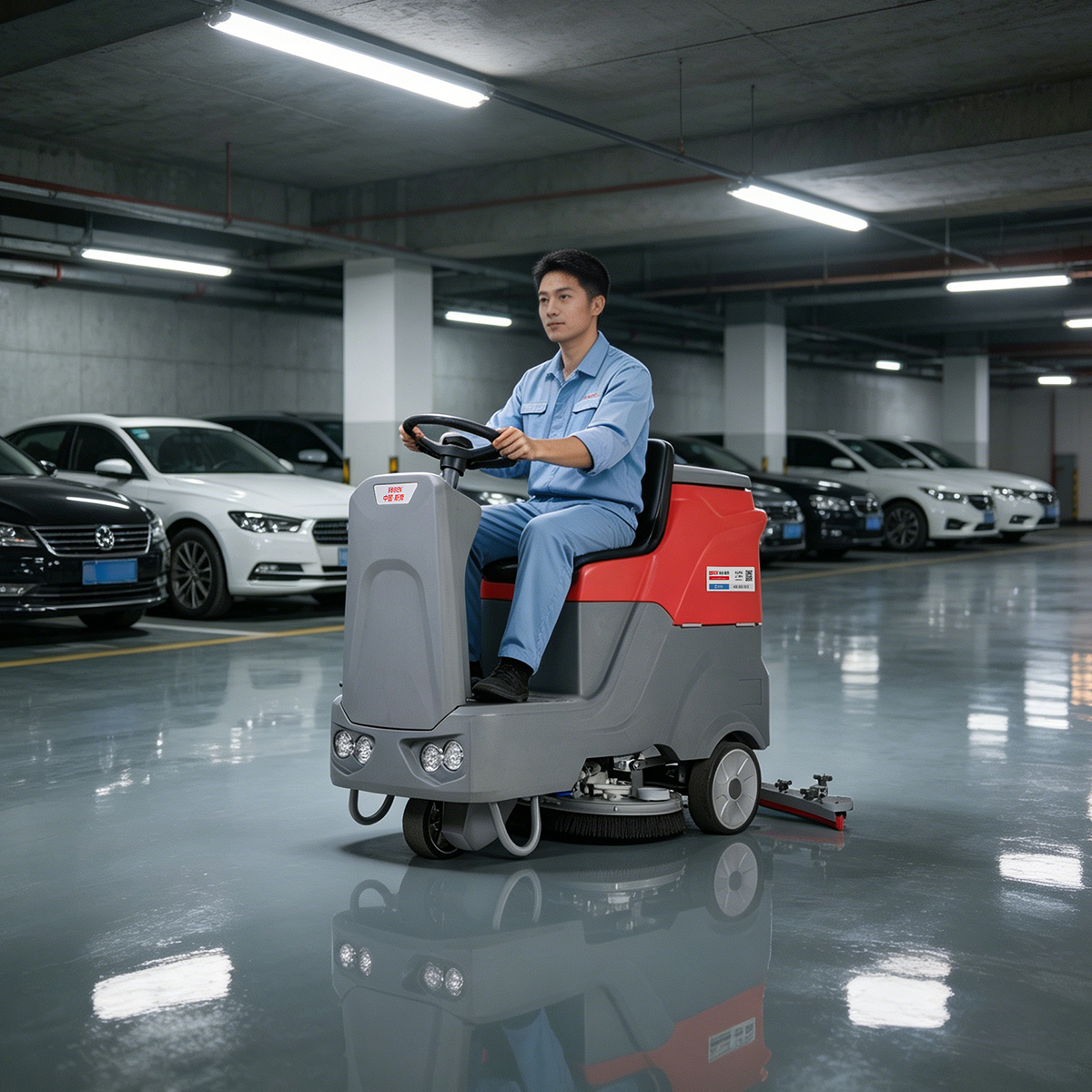

Versatile Application Scenarios: Suitable for large-area industrial environments such as factories, plazas, underground parking lots, and industrial parks.
|Functional Features
Power & Drive System
Dual Version Drive Options:
Standard Version: Features a chain drive motor with strong power and low maintenance costs, offering outstanding cost-effectiveness.

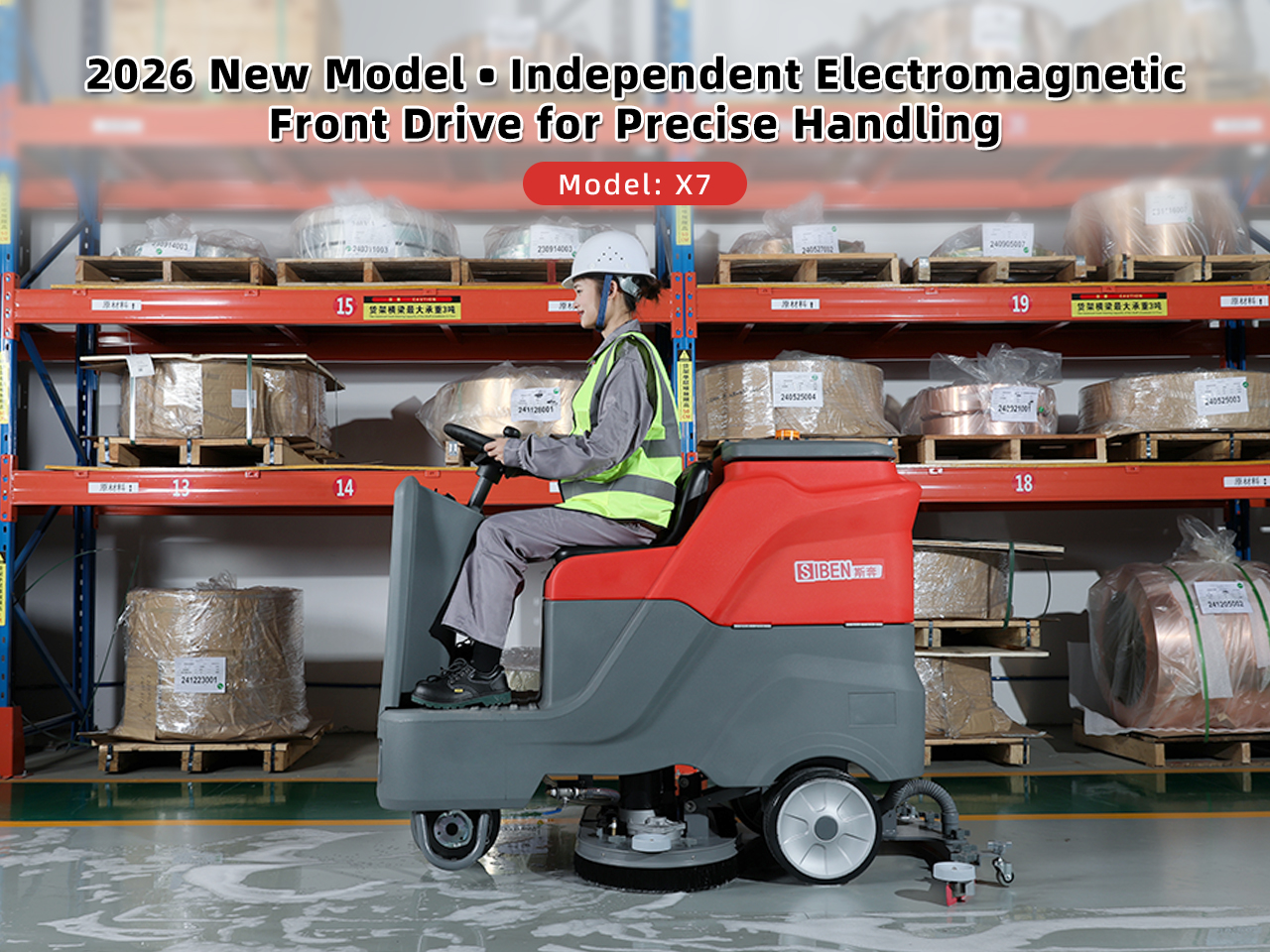

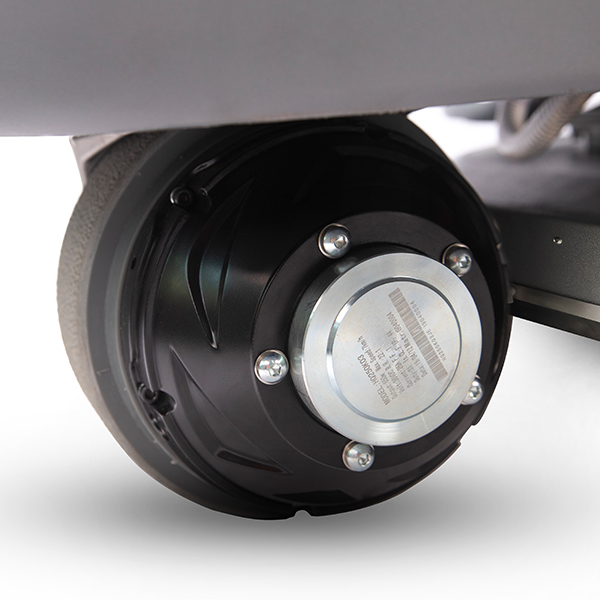

High-end Version: Upgraded to an independent front-drive motor for excellent kinetic performance and high torque output, ideal for high-intensity tasks.

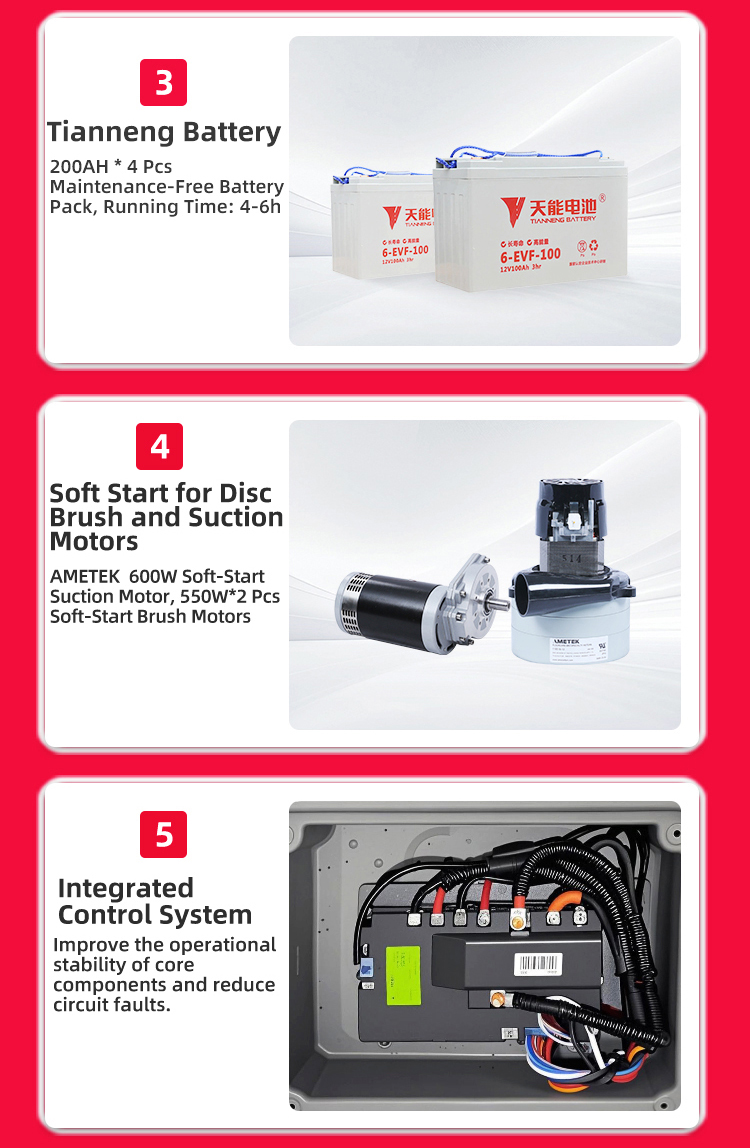

Smooth Soft Start: The drive motor supports a soft start for safer, smoother driving; the suction system includes a delayed shutdown to minimize residual wastewater.

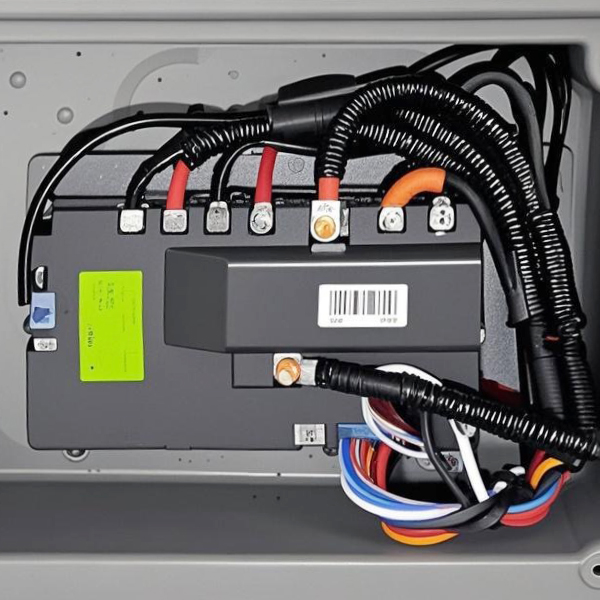

Integrated Control System: Enhances the operational stability of core components and significantly reduces electrical failure rates.

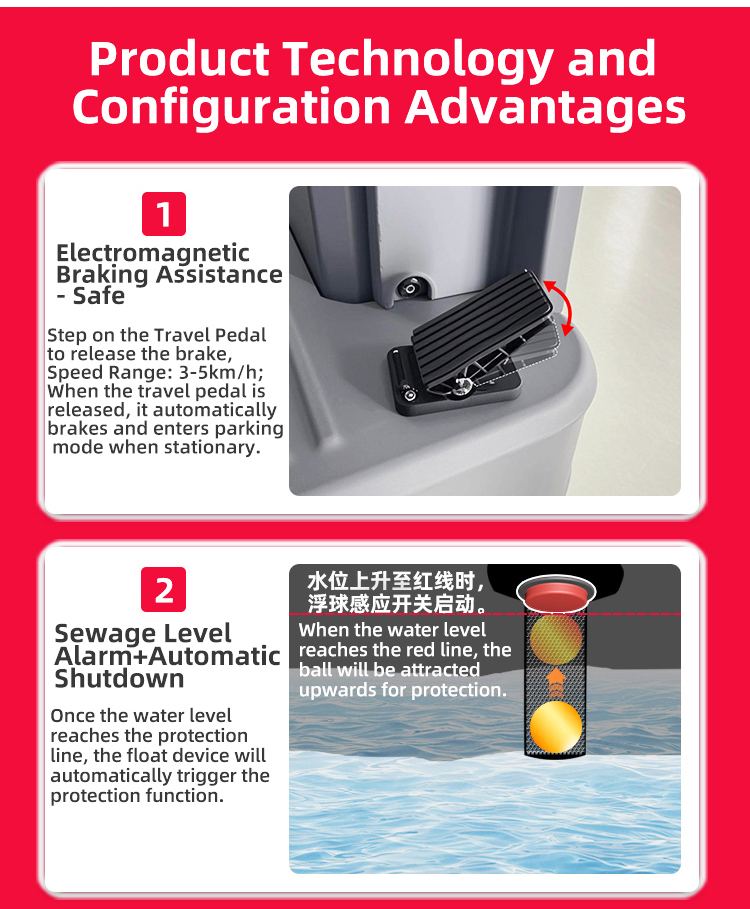

Wastewater Level Alarm: Automatically shuts down and triggers a panel indicator when the tank is full to protect the suction motor.
Electric Lifting System: Maintains constant cleaning pressure on the ground and automatically lifts the squeegee when reversing to prevent collisions.

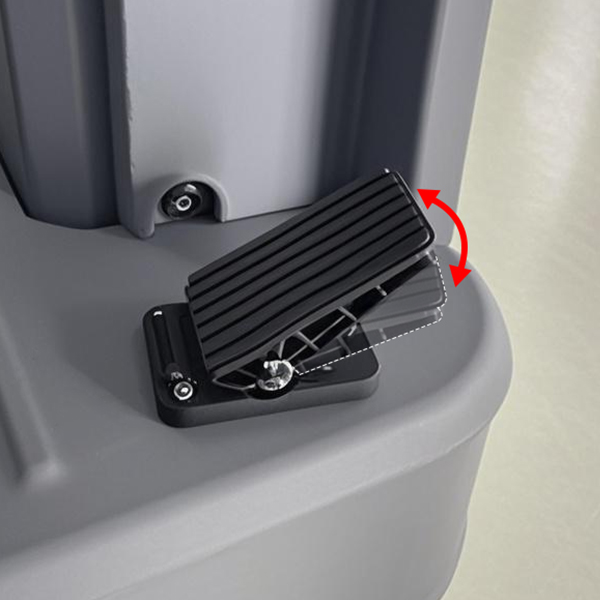

Electromagnetic Assisted Braking: Automatically brakes when the pedal is released and enters a parking state when stationary.
Anti-Tip Protection: Equipped with dual front wheels and an anti-tilt bar to enhance stability during high-speed turns.
Lighting System: Front LED lights and rear warning lights facilitate safe operation in night-time or low-light conditions.

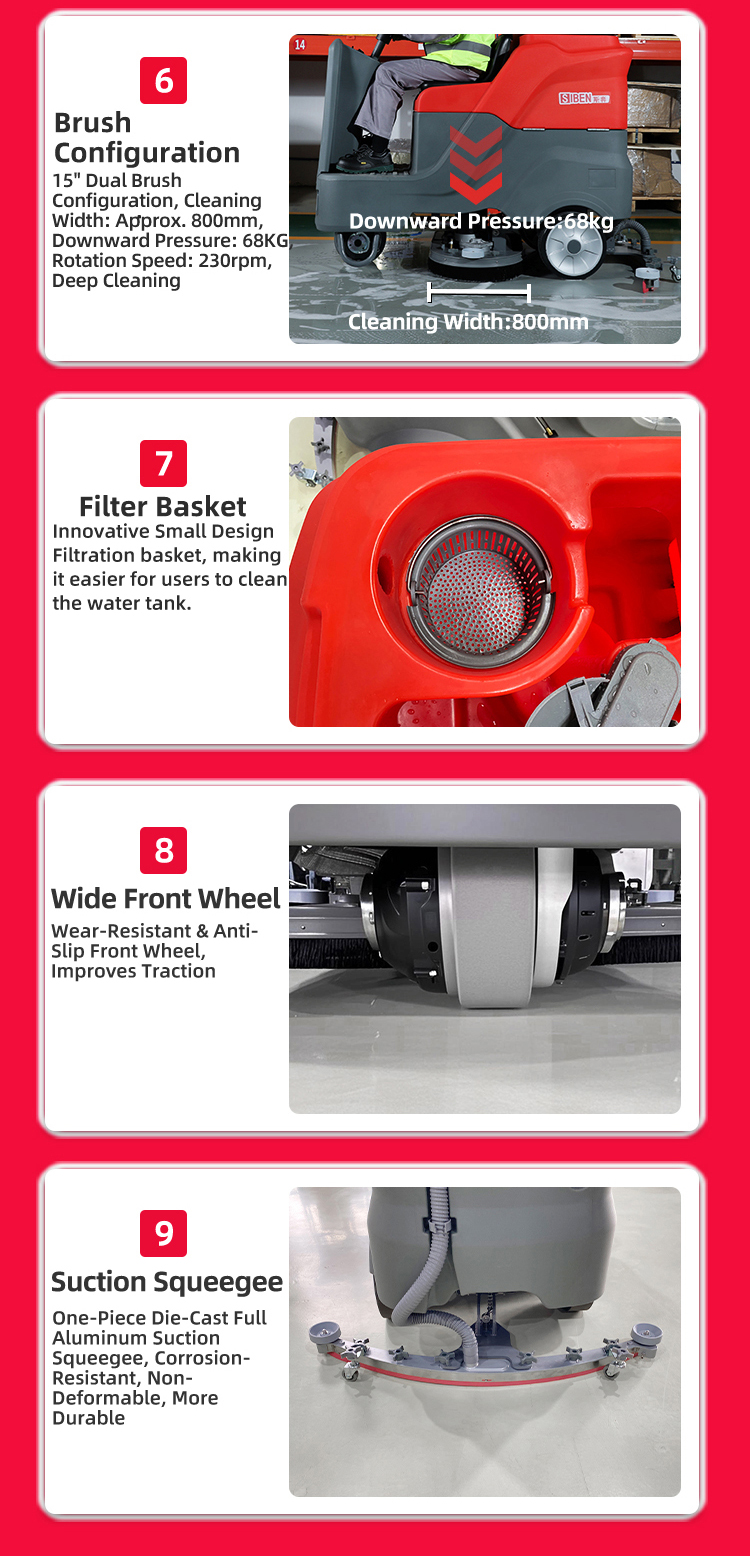

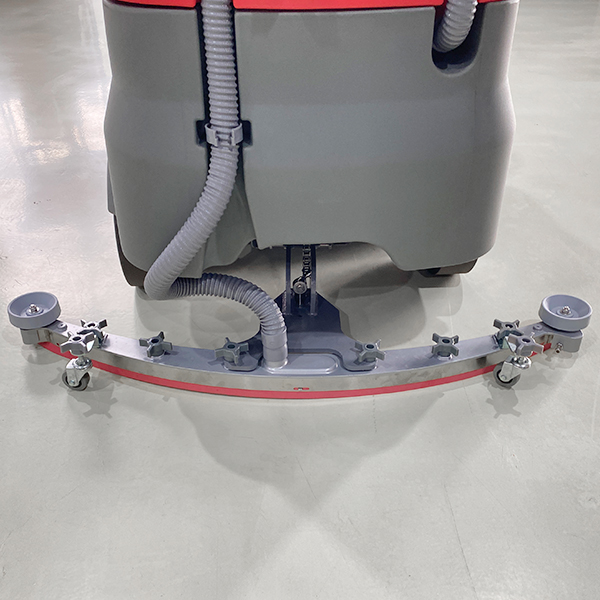

High-Efficiency Suction: Integrally formed stainless-steel squeegee is rust-proof and ensures no water residue on the ground.

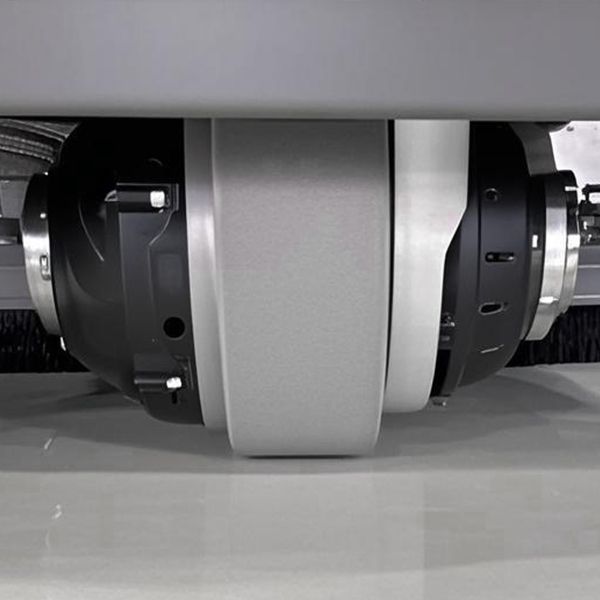

Wear-Resistant Tires: Features imported PU solid anti-slip tires for superior durability.

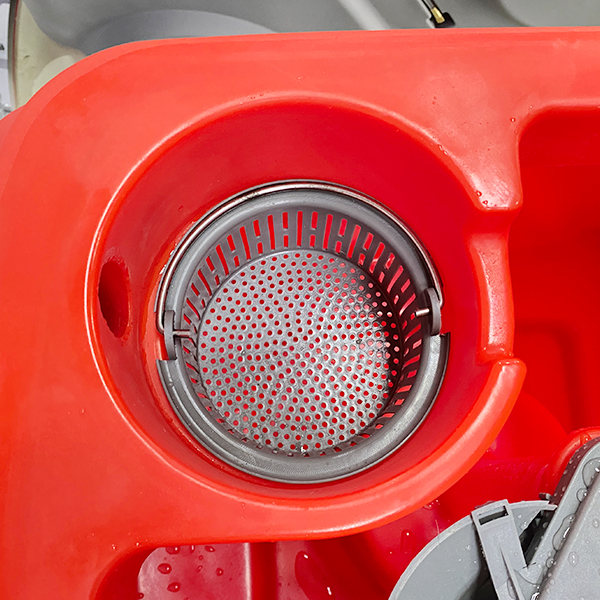

Multi-Stage Filtration: A filter basket in the wastewater tank effectively reduces discharge port blockages.
Versatile Attachments: Standard high-pressure water gun and portable handheld vacuum device ensure no cleaning dead zones.
|Application Scenarios
Factory | Workshop
Airport | Station
Warehouse | Logistics
Hospital | School
Office Building | Hotel
Shopping Mall | Campus
