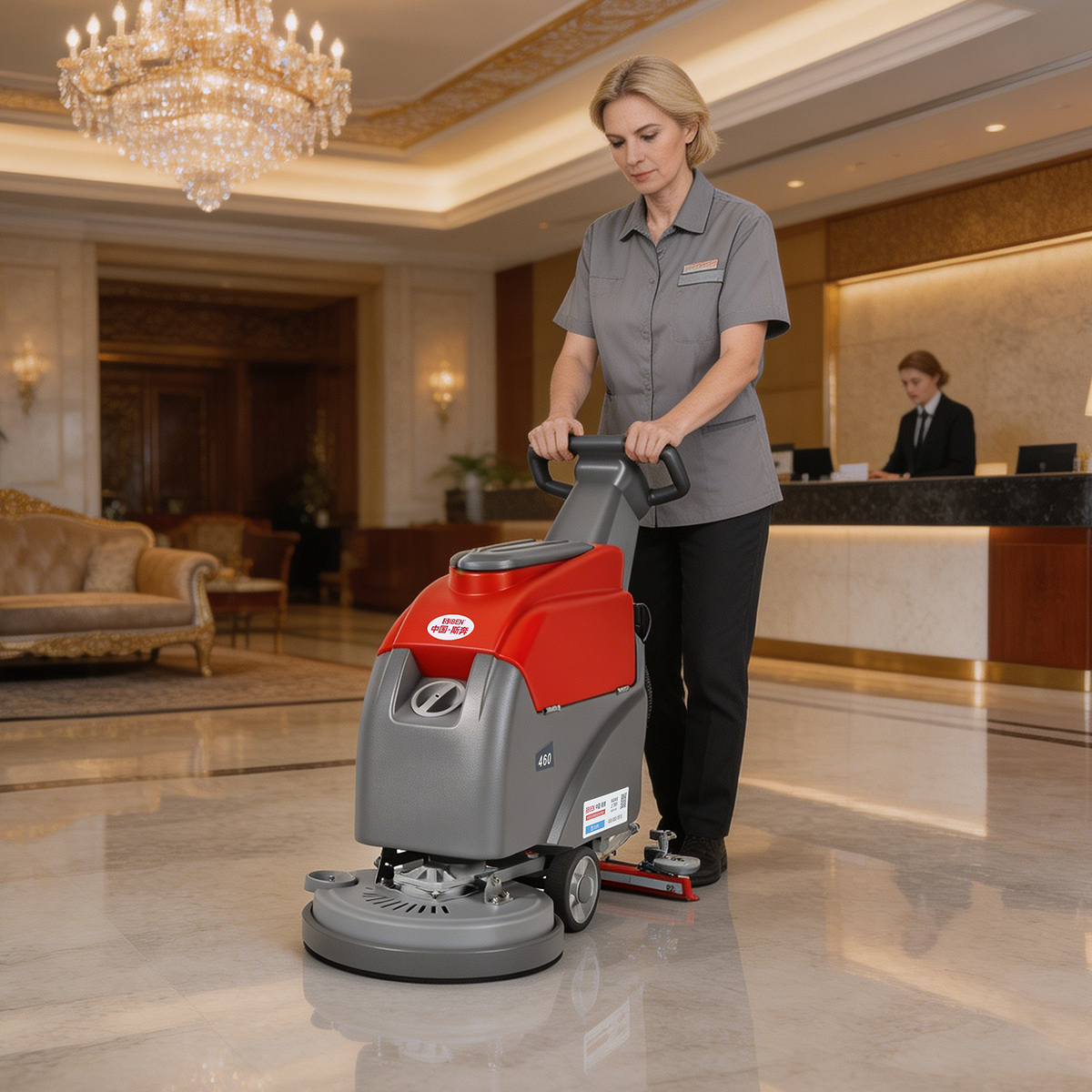

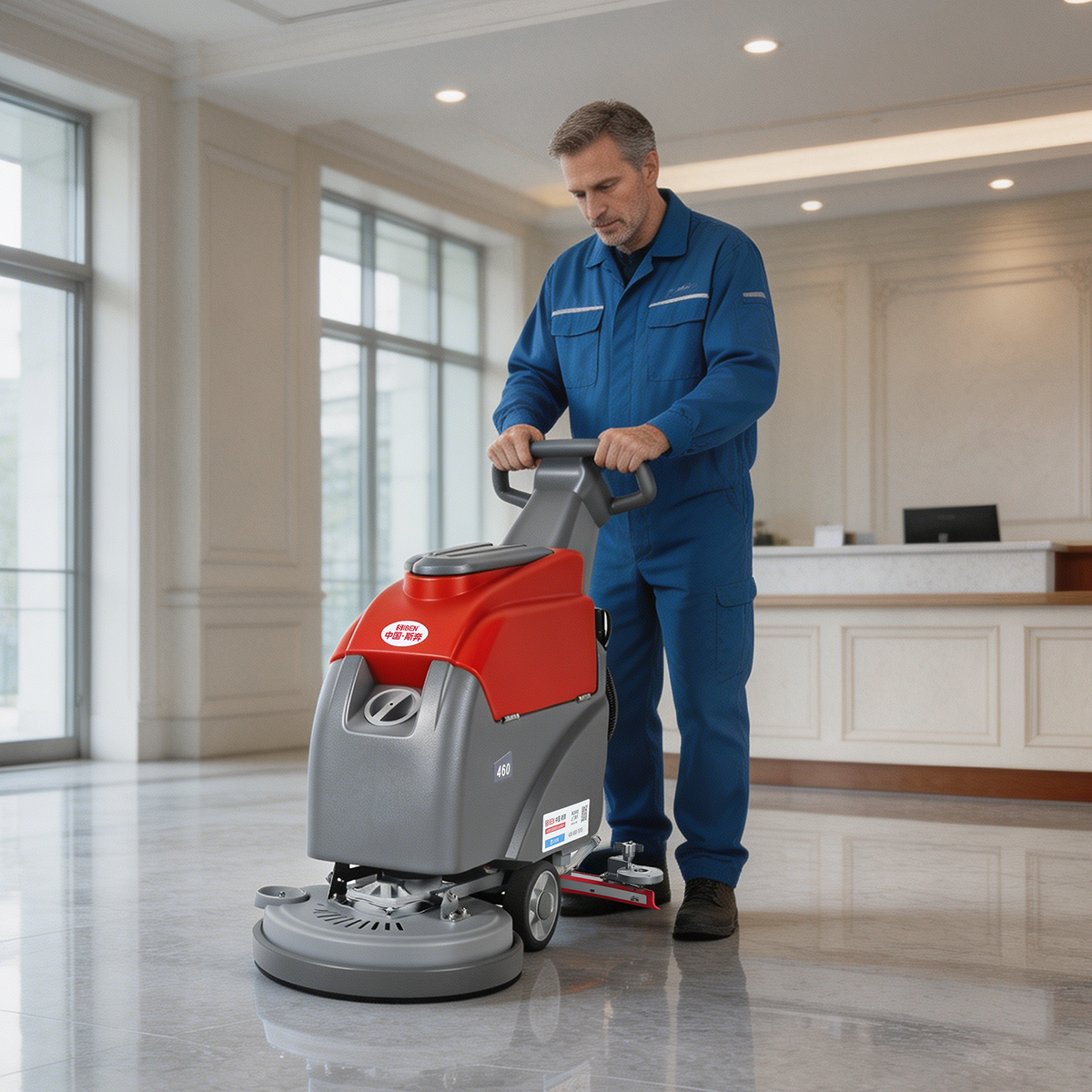

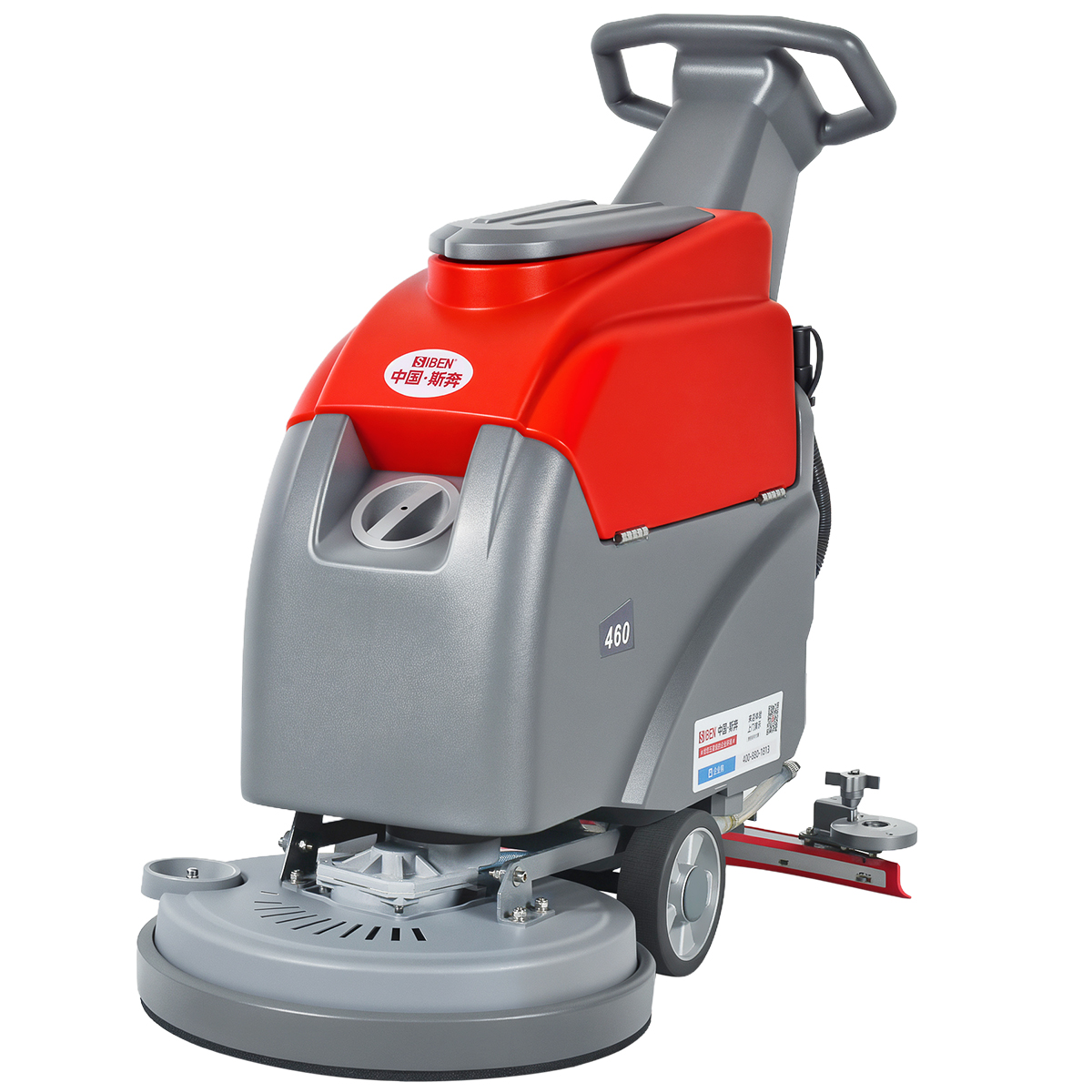

Walk-Behind
| Availability: | |
|---|---|
| Quantity: | |
|Specifications
| Working Voltage | DC 24V | Overall Machine Dimensions (L x W x H) (mm) | 1150 x 580 x 980 |
Battry Life | 2-3 h | Battery Capacity | Maintenance-Free Lead-Acid 76 AH x 2 |

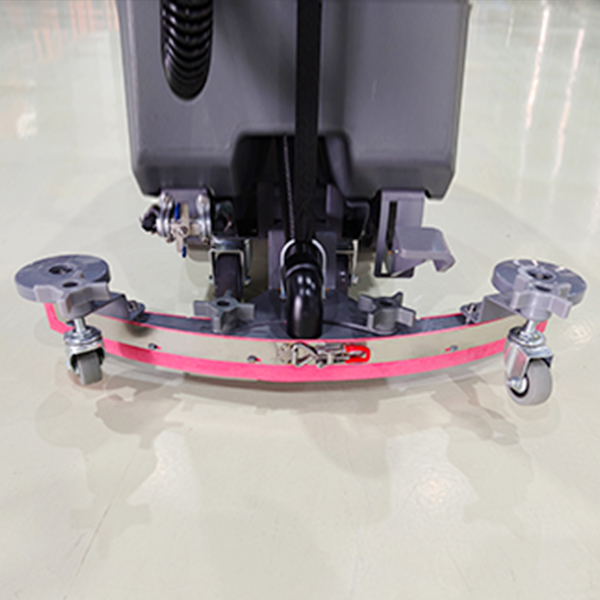

| Cleaning Efficiency | 3500 m²/h | Squeegee Weight | 3 kg |
| Clean Water Tank Capacity | 40 L | Dirty Water Tank Capacity | 45 L |

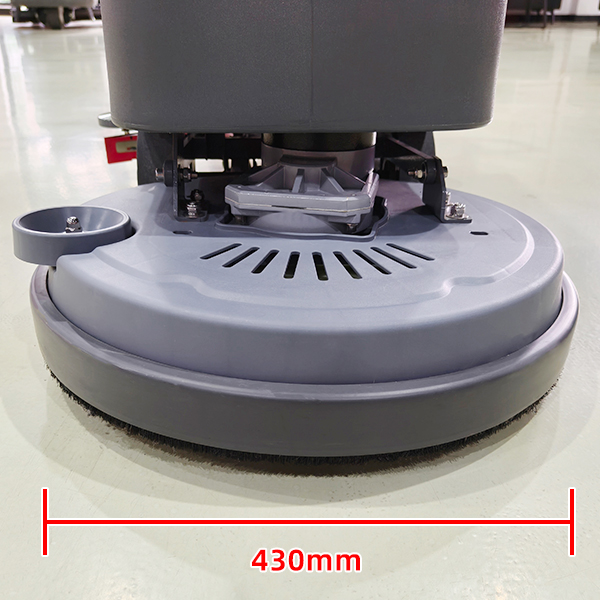

| Cleaning Width | 510 mm | Water Suction Width | 700 mm |
| Cleaning Speed | 0-5 km/h | Operating Noise | 65 dB(A) |
| Water Suction Motor Power | 380 W | Brush Contact Pressure | 26 kg |
| Disc Brush Motor Power | 600 W | Drive Motor Power | 980 W |
| Disc Brush Speed | 180 rpm/min | Machine Weight | 90 kg |
| Water Volume Adjustment | Mechanical |
|Key Highlights
Exceptional Durability: Made from imported LLDPE/EUP engineering plastics with a rotationally molded body, the machine is resistant to acids, alkalis, and corrosion, ensuring easy maintenance.

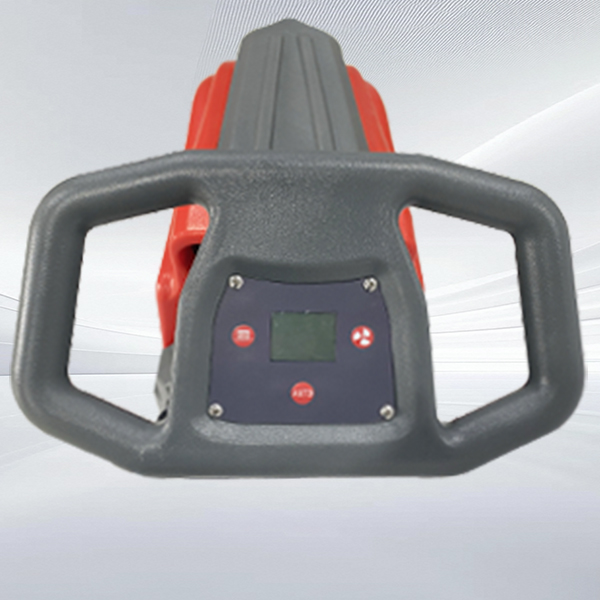

Smart Management: Features an integrated LCD control panel displaying real-time operating time. An optional smart IoT system allows for real-time usage monitoring, intelligent perception, and fleet management.
Energy Efficiency & Quiet Operation: Equipped with a 450W disc brush motor and a 380W water suction motor, which are more energy-efficient and quieter.

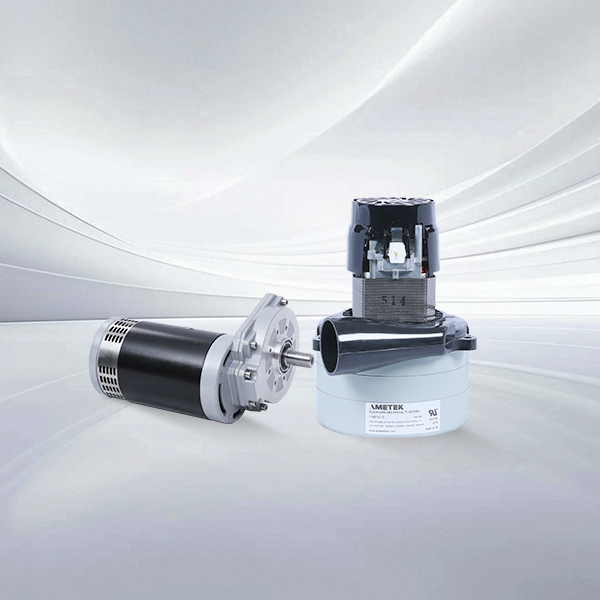

Advanced Motor Protection: Soft start function for both motors to protect and extend their service life; delayed shutdown of the suction system effectively reduces residual wastewater.
Automatic Safety: A float ball protection device automatically activates when wastewater reaches the protection line to prevent water from entering the motor.
|Functional Features

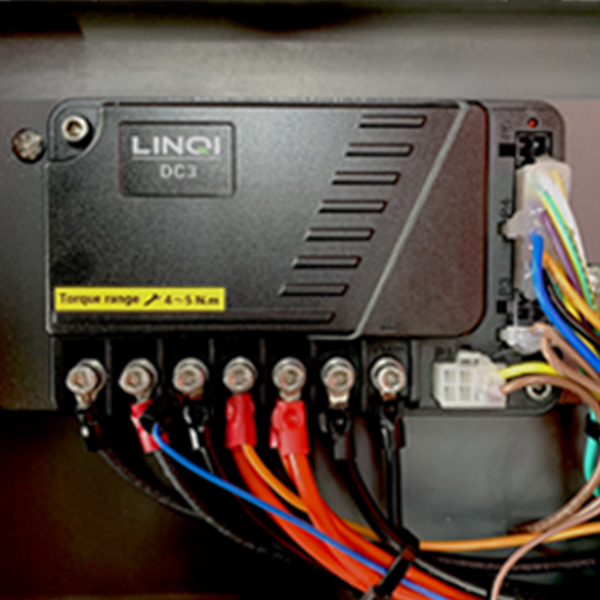

1. LNQI Integrated Control System
Improves the stability of all core components and reduces the electrical circuit failure rate.
2. Extended Runtime

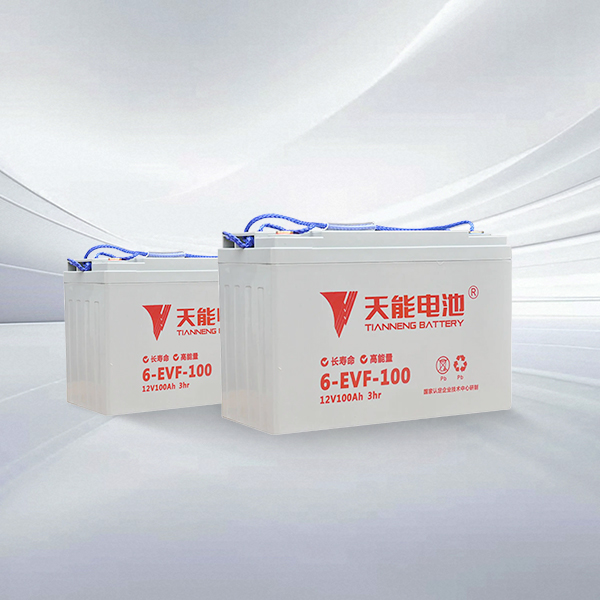

Equipped with two standard 76Ah maintenance-free batteries, providing approximately 2-3 hours of operation.
The magnetic disc brush is easy to install and remove.

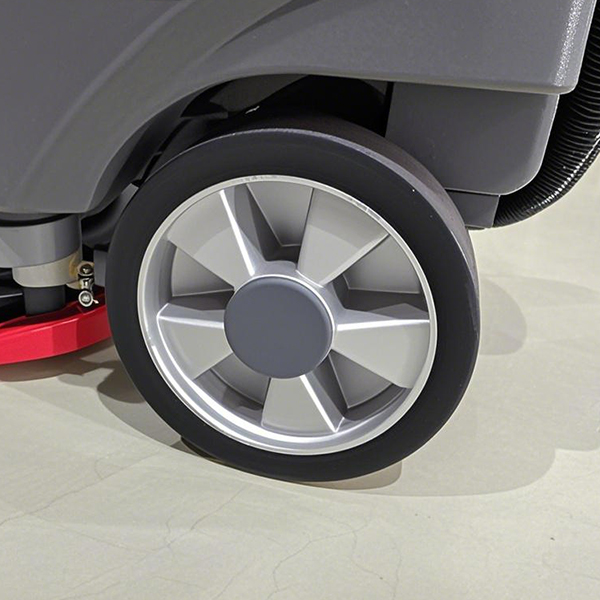

4. Premium Tires
Imported high-quality solid polyurethane (PU) tires that are non-slip, non-marking, and super wear-resistant.
|Application Scenarios
Hospital | School
Office Building | Hotel
Shopping Mall | Campus
