Cleaning Efficiency: 4,280 m²/h
Brush Contact Pressure: 45 kg
Battery Life: 2.5-3.5 h
Factory | Workshop, Airport | Station, Construction | Real Estate, Hostipal | School, Office Building | Hotel, Shopping Mall | Campus, Warehouse | Logistics
Ride-On
| Availability: | |
|---|---|
| Quantity: | |
|Specifications
| Working Voltage | DC 24V | Overall Machine Dimensions (L x W x H) (mm) | 1380 x 780 x 1180 |

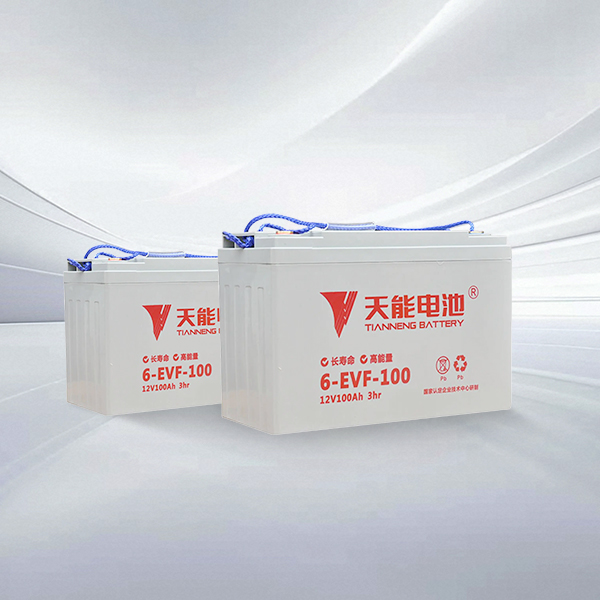

Battry Life | 2.5-3,5 h | Battery Capacity | Maintenance-Free Lead-Acid 100 AH |
| Cleaning Efficiency | 4280 m²/h | Charging | |
| Clean Water Tank Capacity | 75 L | Dirty Water Tank Capacity | 85 L |
| Cleaning Width | 530 mm | Water Suction Width | 780 mm |
| Cleaning Speed | 0-7 km/h | Operating Noise | 68 dB(A) |

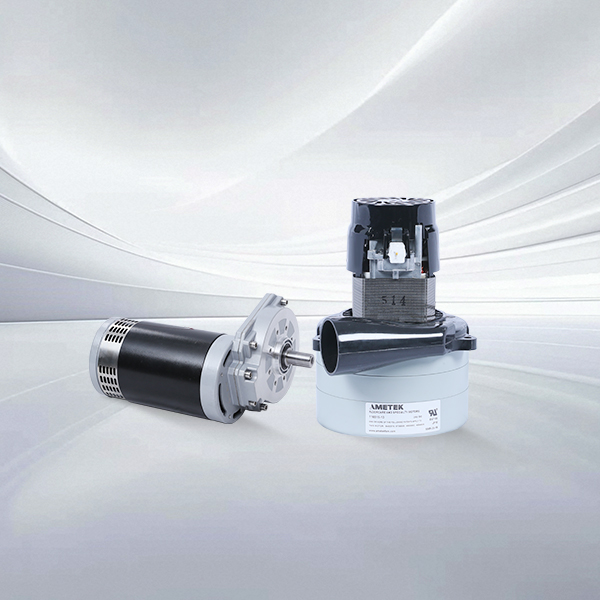

| Water Suction Motor Power | 550 W | Brush Contact Pressure | 45 kg |
| Disc Brush Motor Power | 550 W | Drive Motor Power | 1550 W |
| Disc Brush Speed | 230 rpm/min | Climbing Gradient | 0-15° |
| Water Volume Adjustment | Mechanical | Squeegee Weight | 4.2 kg |
| Machine Weight | 180 kg | Water Level Protection Device | Float Ball |
|Key Highlights

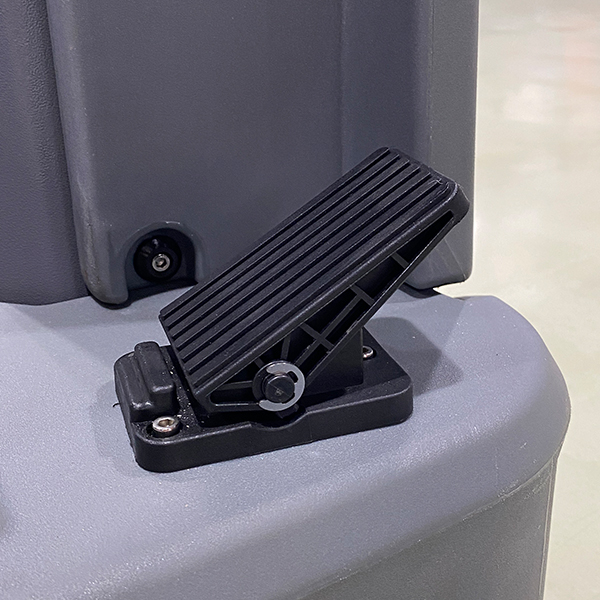

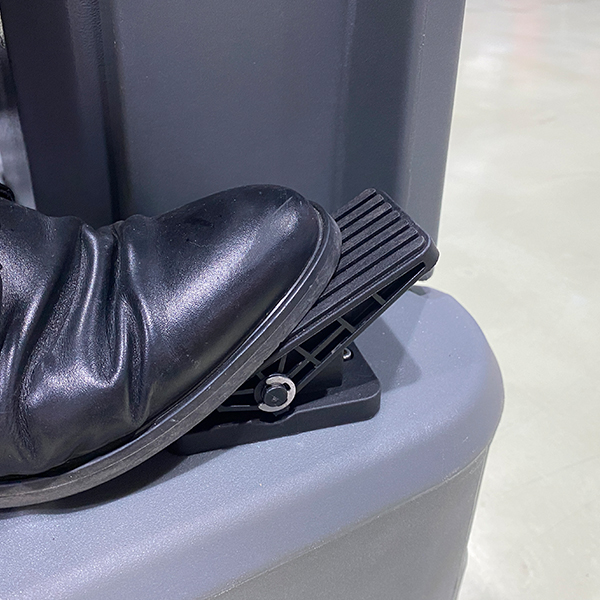

Electromagnetic Assisted Braking: The brake is released when pressing the drive pedal (3-5 km/h) and automatically engages when released, ensuring safe parking even on slopes.
Anti-Tip Protection:Equipped with two front wheels and a front anti-tilt bar, this design significantly enhances stability during high-speed turns and reduces the risk of tipping over.
All-Weather Lighting: Features front LED headlights and rear warning lights for safe operation in nighttime or low-light industrial environments.

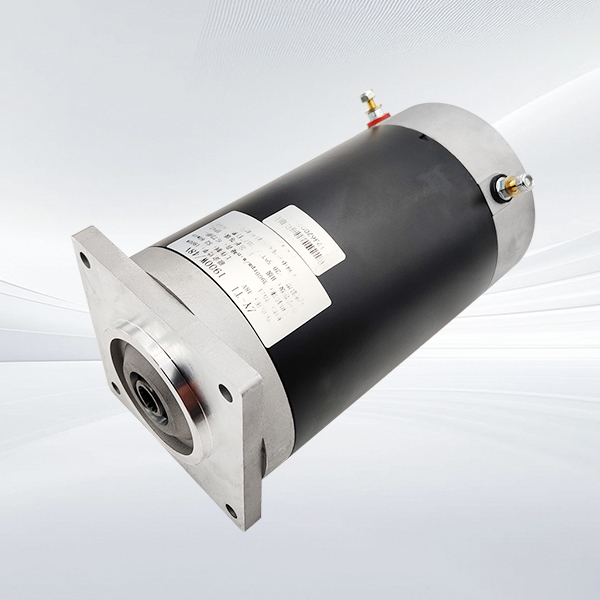

Soft Start Technology: The drive motor features a soft start for a smoother, more comfortable, and safer driving experience.
Smart Suction Delay: The water suction system includes a delayed shutdown function to effectively minimize residual wastewater on the ground.
Intelligent Management (Optional): Users can opt for a liquid crystal integrated control panel and a
Smart IoT system for real-time equipment monitoring and intelligent management functions.
Heavy-Duty Integrated Body: The entire machine is rotationally molded from imported LLDPE/EUP engineering plastics, providing superior resistance to acids, alkalis, and corrosion.
|Functional Features
1. High-Stability Control Core:
Utilizes the LNQI integrated control system to optimize the operational stability of core components and reduce electrical failure rates.
2. Automatic Motor Protection:
When wastewater reaches the protection line, the float switch activates, triggering a panel indicator and an automatic shutdown to protect the suction motor.
3. Industrial-Grade Traction:

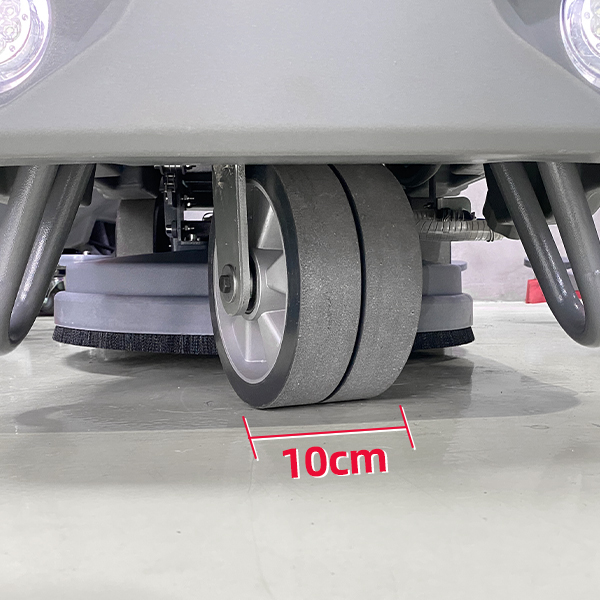

Features 10cm wider front wheels for improved grip, paired with imported PU solid anti-slip tires for maximum wear resistance without marking the floor.
4. Professional Suction System:
The stainless-steel, integrally formed squeegee is rust-proof and corrosion-resistant, ensuring no water residue is left behind.

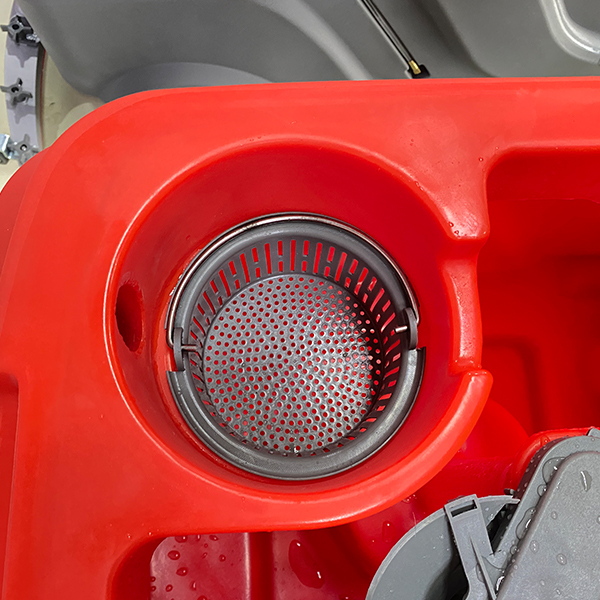

5. Easy-Maintenance Filtration:
A dedicated garbage filter basket in the wastewater tank effectively intercepts debris and reduces blockages at the discharge port.
|Application Scenarios

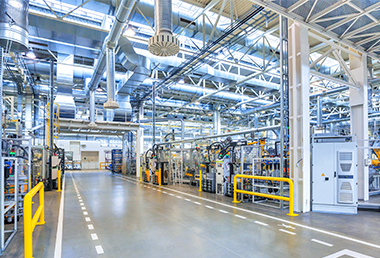

Factory | Workshop

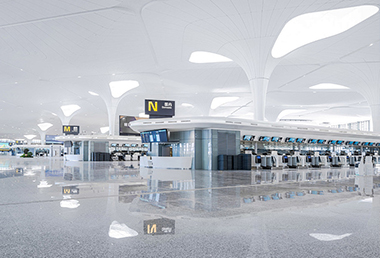

Airport | Station

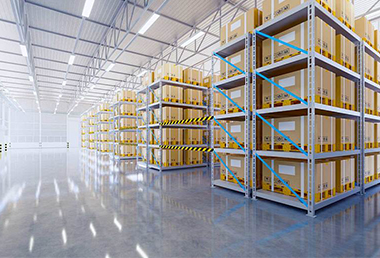

Warehouse | Logistics

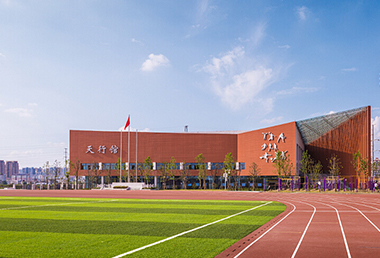

Hospital | School

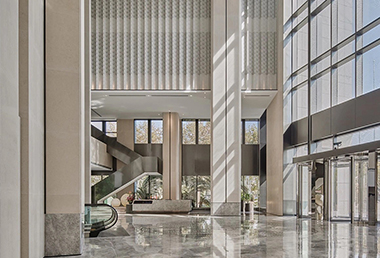

Office Building | Hotel

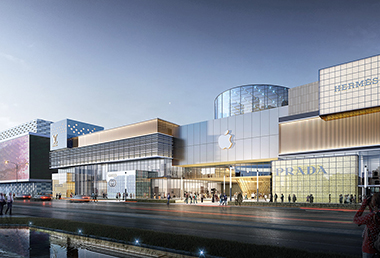

Shopping Mall | Campus
